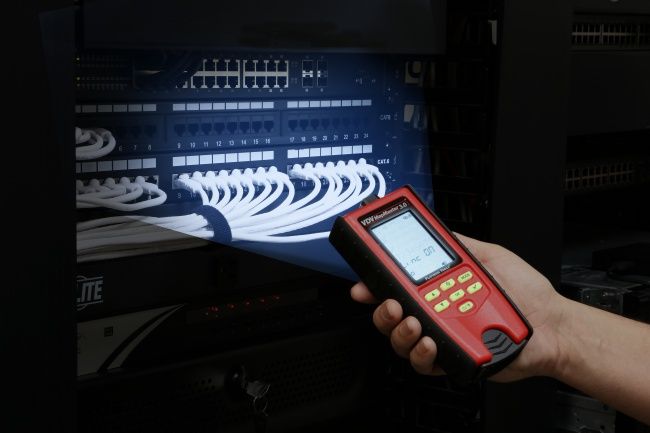

Platinum Tools T130K4 VDV MapMaster 3.0 Network and Coax Field Kit

The Platinum Tools T130K4 VDV MapMaster 3.0 Network and Coax Field Kit is an all-in-one solution for professionals involved in network and coax cable installation and troubleshooting. It features advanced testing capabilities like continuity testing, cable mapping, tone generation, and length measurement, all packaged within a user-friendly design. The device is equipped with a backlit display and a glow-in-the-dark keypad, ensuring visibility even in low-light situations. Ideal for both commercial and residential use, the MapMaster 3.0 is versatile and loaded with features that provide excellent value for professional installers.

Platinum Tools T130K4 VDV MapMaster 3.0 Features

• Detects: Open, Shorts, Miswires, Reverses & Split Pairs to help identify common cable issues quickly.
• Wiremap Configuration: Tests to T568A/B standards, ensuring network reliability by detecting shorts, opens, miswires, reverses, and split pairs.
• Single-ended Testing: Specialized capabilities for Shorts & Split Pairs simplify the testing process.
• Length Measurement: Measures lengths in both Feet and Meters for flexibility and precision in installations.
• Port Link Light: Identifies cable location on active ports with a flashing indicator for convenience.
• Backlit LCD Screen: User-friendly design with large icons, coupled with a glow-in-the-dark keypad and built-in LED flashlight to enhance usability in dark settings.
• Multi-Cable Verification: Verifies continuity across multiple cable types (LAN, Phone, and Video) for diverse testing requirements.
• Audible Feedback: Provides an audible beep for additional confirmation during testing.
• Cable Identification: Identify up to 20 network or coax cable runs simultaneously to streamline your workflow.
• Distance Measurement: Measures cable length, distance to opens, and breaks for specific wires or all wires concurrently.
• Master Remote: Stored conveniently in the main unit for easy accessibility.
• Voltage Detection: Warning icon alerts users to potential voltage, enhancing safety during tests.
• Continuous Loop Testing: Mode available for thorough troubleshooting, ensuring all issues are addressed.
• Energy Efficiency: Features auto-off and timed backlight to promote longer battery life and low power consumption.
• Audible Tone Generator: Offers 4 selectable cadences for enhanced tracing capabilities.

Platinum Tools T130K4 Detailed Specifications
