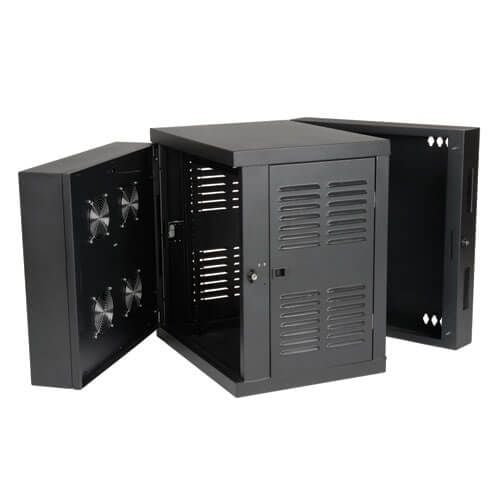

The SRW12USNEMA SmartRack 12U NEMA 12 Switch-Depth Wall-Mount Rack Enclosure Cabinet is designed to house EIA-standard 19-inch rack equipment in harsh, dirty work environments with limited floor space, such as factories, construction areas, utility plants, power stations, transportation terminals, distribution hubs and warehouses. Constructed from heavy-duty steel with a durable black powder-coated finish, the cabinet has a maximum load capacity of 200 pounds.
The SRW12USNEMA has a NEMA 12 (IP54) protection rating, protecting sensitive equipment against dirt, dust, lint, oil, drips and splashes. Its built-in air filter, louvered vents on the front door and side panels, sealed gasket around the door frames and brush strips around cable access points prevent dripping water, oil and airborne contaminants from getting inside. You can replace the air filter with standard, off the-shelf furnace filters. Four high-performance intake fans built into the front door pull filtered air through the cabinet to keep your equipment cool.
Tripp Lite SRW12USNEMA Features
Built-in Air Filter: Keeps out dirt, dust, lint, oil, drips, and splashes, ensuring a clean environment for sensitive equipment.
Removable Air Filter: Can be replaced with standard, off-the-shelf furnace filters for easy maintenance and cost-effectiveness.
High-Performance Door Fans: Plugs into standard NEMA 5-15R outlet (6 ft. power cord included) to enhance cooling efficiency.
Sealed Cable Ports: Maintain dust and moisture resistance, protecting equipment from environmental hazards.
Reversible Doors: Can open left or right, allowing for flexible installation in various rack configurations.
Secure Locking Panels: Side panels and doors lock securely to prevent damage, tampering, or theft, ensuring equipment safety.
Vented Panels: Combined with built-in fans, provide generous airflow to keep equipment cool and operational.

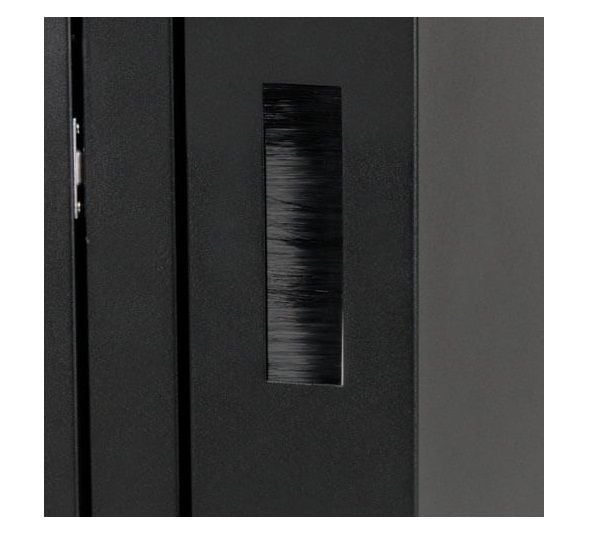

Convenient Cable Routing: Ports with removable covers and protective brush strips allow for organized cable management through the rear door.
Detailed Specifications for Tripp Lite SRW12USNEMA
SRW12USNEMA-Specsheet
