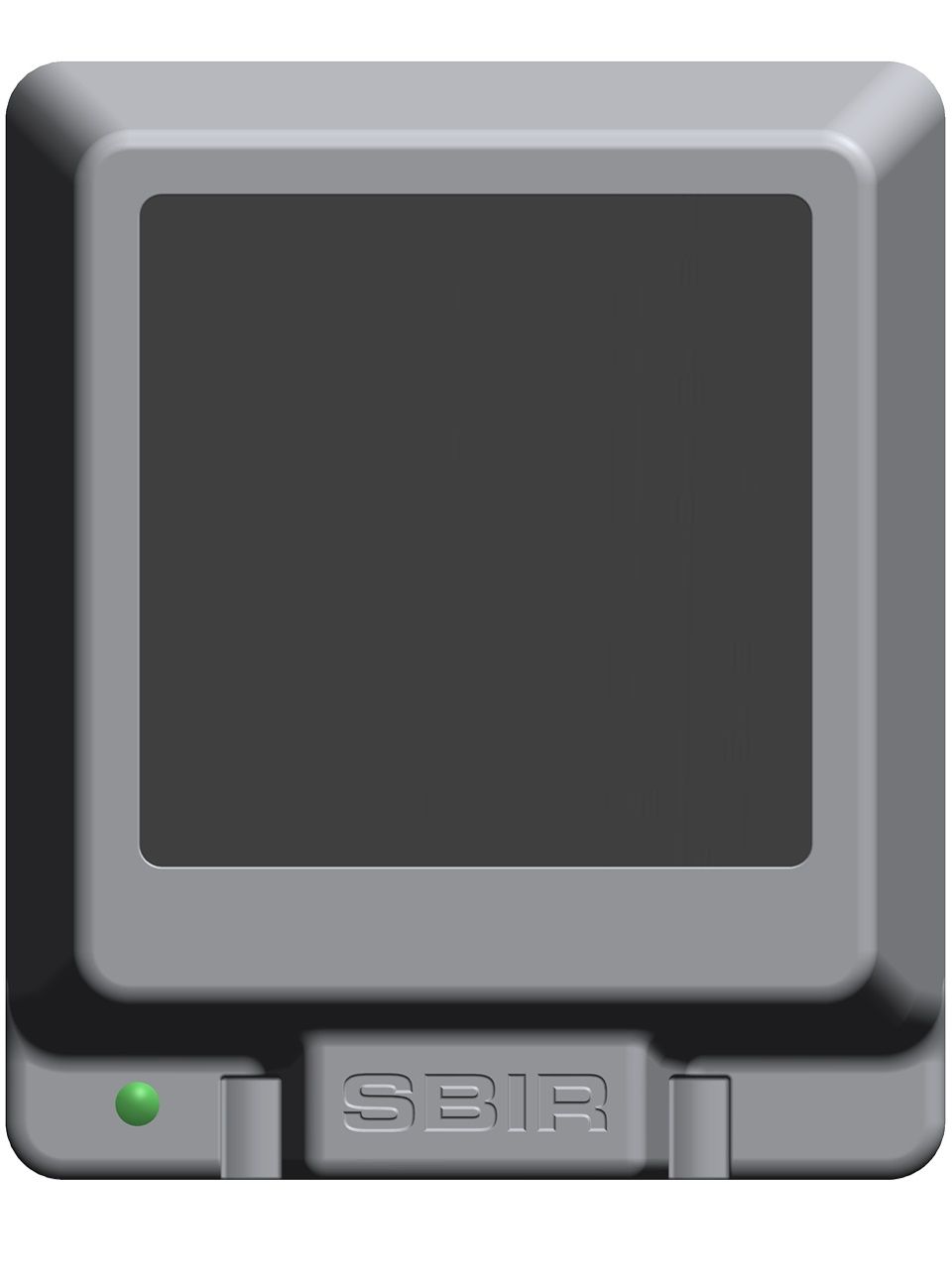

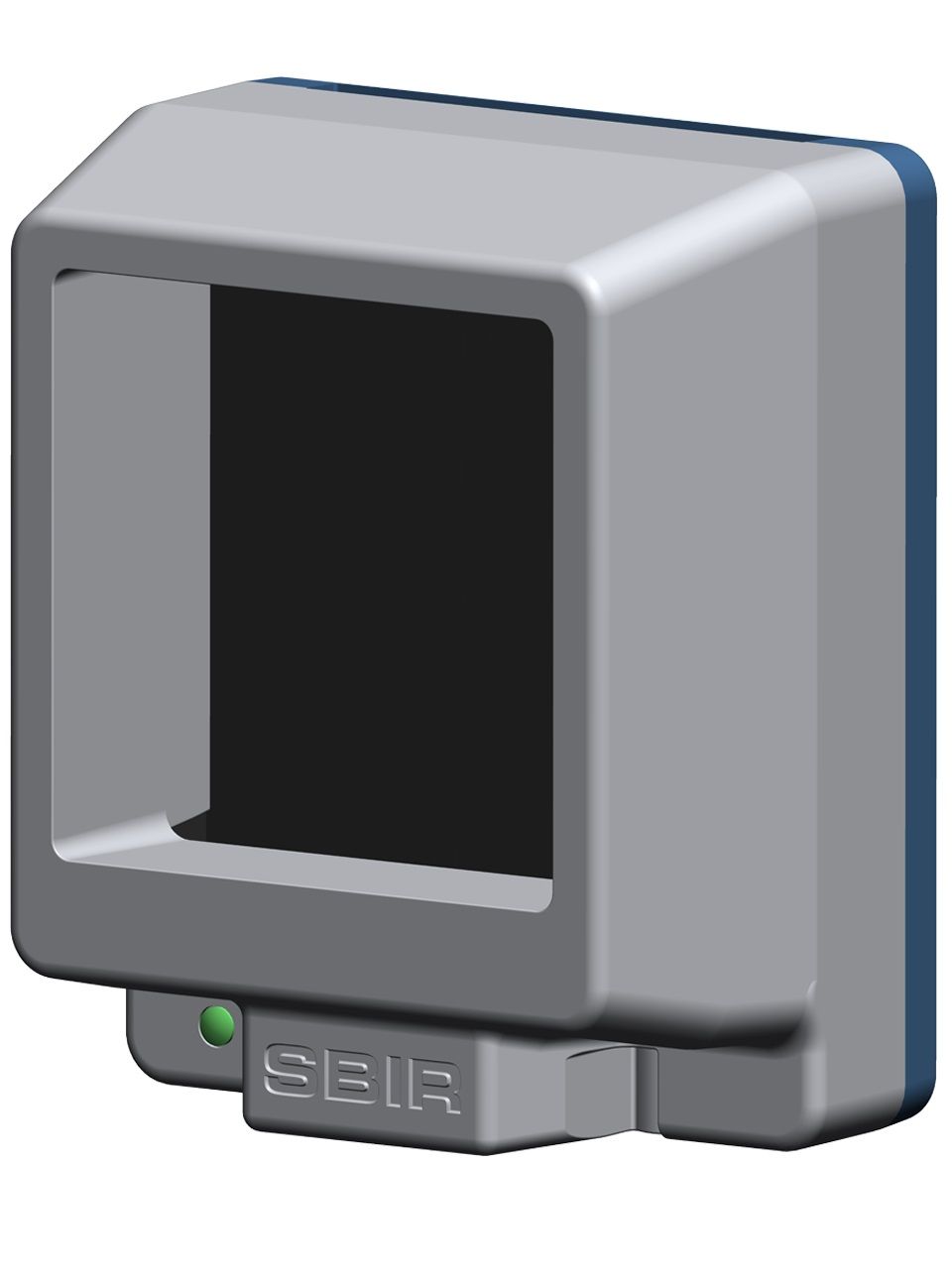

Hanwha Vision SPI-35B Black Body Calibration Device

The Hanwha Vision SPI-35B Black Body Calibration Device is an essential tool designed for enhancing the accuracy of temperature detection in thermal cameras. Operating at a stable 35°C, this device serves as a reliable reference point, significantly improving the precision of body temperature readings from ±0.5°C to ±0.3°C. Ideal for medical and security applications, it ensures accurate fever detection, making it a crucial addition to any thermal imaging setup.

Key Features of the SPI-35B

• IEC 80601-2-59 standard compliant, ensuring reliability and safety in medical applications.
• Settable temperature range from 30°C to 45°C (86°F to 113°F), allowing flexibility for various environments.
• 3” square emitting aperture for optimal calibration and accurate readings.
• Temperature accuracy of ±0.15°C (±0.3°F) for precise temperature measurement.
• Exceptional temperature stability of ±0.05°C (±0.1°F), providing consistent performance.
• Configurable to display temperatures in either Celsius or Fahrenheit for user convenience.
• “Set & Forget” temperature programming simplifies operation and reduces setup time.
• No separate controller required, streamlining the calibration process.
• 1/4-20” tripod mounting features for easy installation in various settings.
• USB communication interface for seamless connectivity with thermal cameras.
