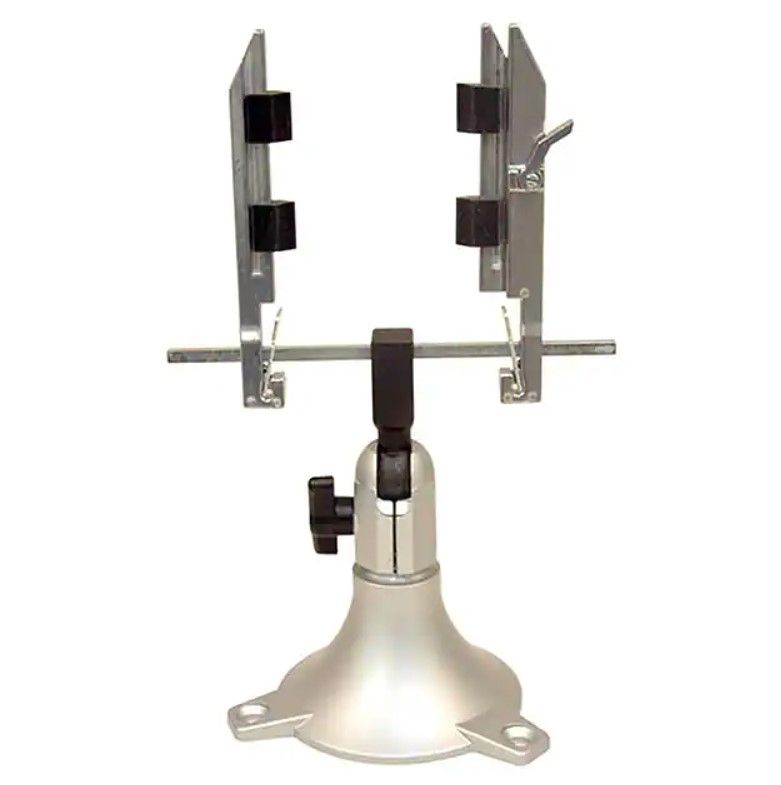

Panavise PV-220 PV Jr Mini Circuit Board Holder
SKU
PV-220
Model No
220
$31.99
Product Highlights
- Silicone Rubber Standoffs (x4)
- Tilts, Turns and Rotates
- Quick Release Spring Tension Lever
- Arms move freely for precise positioning
- Vise Height | 9.5" (241.3mm)
Speak to an expert
The PV-220 from Panavise is a PV Jr. mini circuit board holder, designed to provide robust support for small or mini boards like Arduino and Raspberry Pi. It offers adjustable features with a quick release mechanism, making it easy to work with Over the Edge Component Boards, ensuring precision and convenience in your projects.
Panavise PV-220 Features
- Silicone Rubber Standoffs: Four rubber standoffs provide a secure grip while preventing damage to the circuit board.
- Tilts, Turns and Rotates: Multi-directional movement allows for optimal positioning of your board during assembly or repair.
- Quick Release Spring Tension Lever: Instantly secure or release boards, enhancing productivity and workflow.
- Free-Moving Arms: Arms adjust freely for precise positioning, accommodating various board sizes and shapes.
- Vise Height: 9.5" (241.3mm) provides a comfortable working height for extended use.
- Arm Height: 4.25" (108mm) ensures boards of various heights are adequately supported.
- Max Arm Width: Up to 4.5" (114.3mm) accommodates a variety of circuit boards.
- Cross Bar Width: At 6" (152.4mm), it offers additional stability during use.
- Bolt Circle: 4.3125" for robust mounting options.
- Counter Sunk Mounting Holes: .25" holes simplify installation onto workbenches or other surfaces.
Panavise PV-220 Detailed Specifications
| Vise Height | 9.5" (241.3mm) |
| Arm Height | 4.25" (108mm) |
| Max Arm Width | 4.5" (114.3mm) |
| Cross Bar Width | 6" (152.4mm) |
| Bolt Circle | 4.3125" |
| Counter Sunk Mounting Holes | .25" |
SKU  | PV-220 |
|---|---|
| Manufacturer | Panavise |
| Product Type | Circuit Board Holders |
