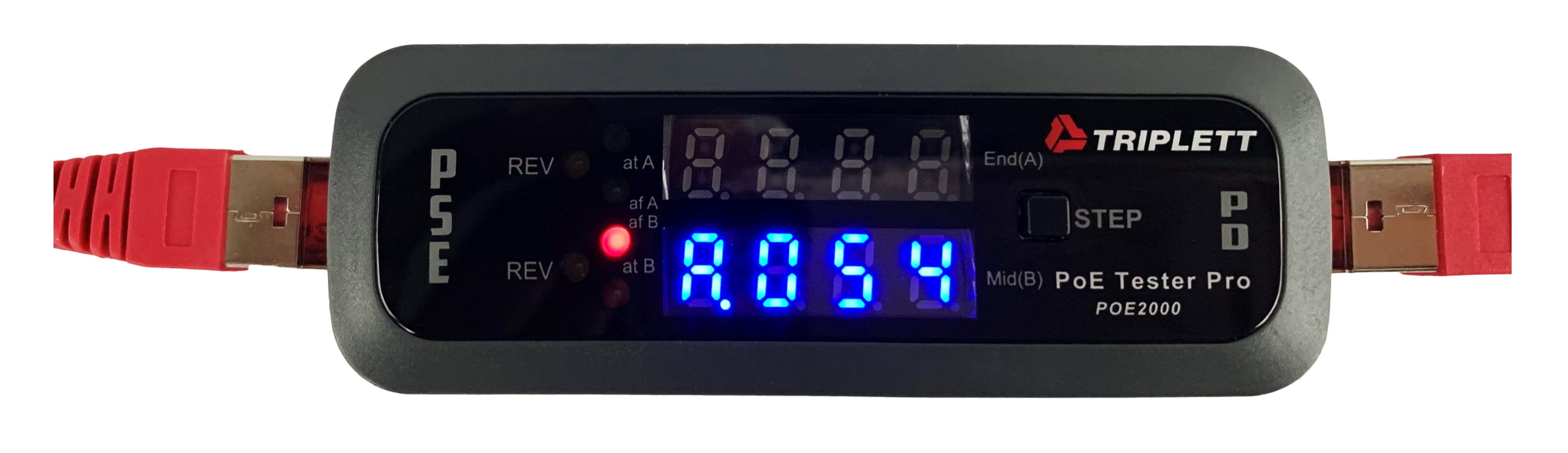

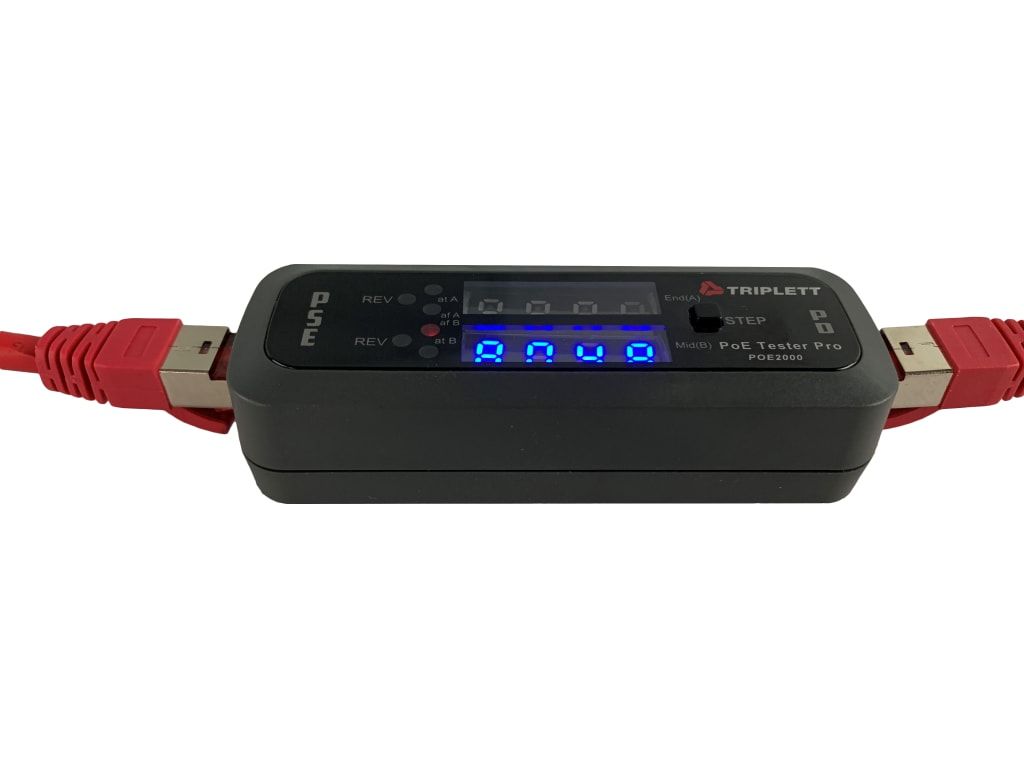

Triplett POE2000 PoE Tester Pro

The POE2000 from Triplett is a PoE Tester Pro designed to expedite the installation and troubleshooting of PoE system devices. This essential tool can detect PSE-type/class, power source, polarity, voltage, current, power, and whether it is End Span (1/2, 3/6), Midspan (4/5, 7/8), or across all 4 pairs. Ideal for VoIP phone and IP camera installers, it ensures power and data availability for equipment. With a test mode for standard (36 to 60V) or non-standard (11 to 60V) passive PoE, it also features inline power level monitoring with an easy-to-use display, all while operating without batteries by utilizing system power when connected.

Triplett POE2000 PoE Tester Pro Features

• 4 LEDs: Indicate IEEE802.3af or 802.3at/bt standard for easy identification of PoE types.
• PSE Detection: Detects PSE-type/class, power source, polarity, voltage, current, and power, enabling comprehensive diagnostics.
• PoE Standards: Determines standard PoE (36 to 60V) or non-standard passive PoE (11 to 60V) for flexible applications.
• Polarity Indicators: Two yellow LEDs indicate reversed polarity for power type, ensuring correct connections.
• Inline Monitoring: Alternately displays voltage, current, and power while incorporating a step button for specific data selection.

Triplett POE2000 PoE Tester Pro Specifications
