Triplett OTDR1315 Professional Multi-Function OTDR/Network Tool
SKU
OTDR1315
Model No
OTDR1315
$681.03
Product Highlights
- Optical Time-Domain Reflectometer with single mode 1310/1550 wavelength
- 26/24dB Dynamic Range
- Optical power meter with -70 ～ +6dBm range
- Stable laser source supports CW/270/330/1000/2000Hz
- Test fiber’s length, loss, attenuation parameters and event map, locate connection point/fusion point
Speak to an expert

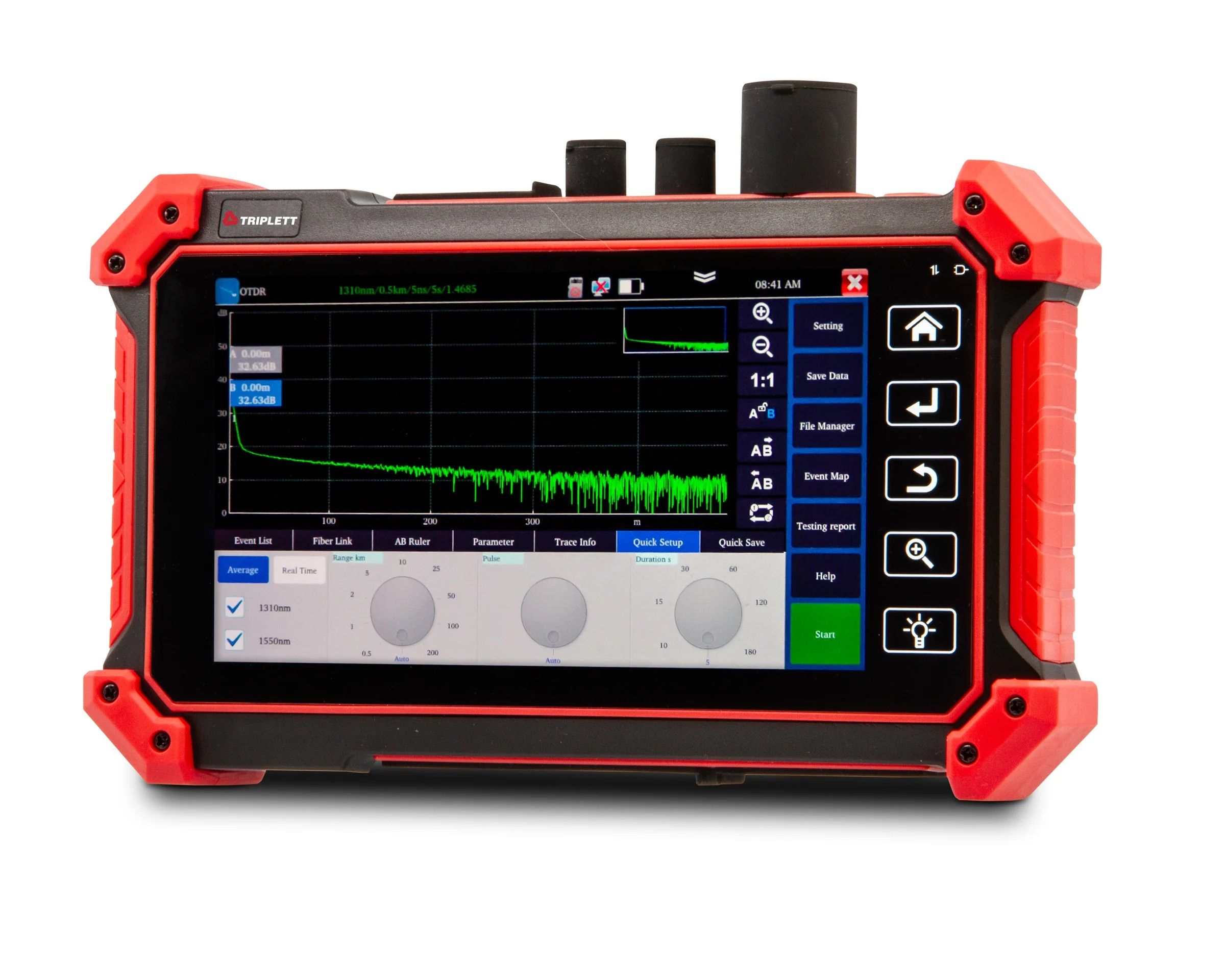

The OTDR1315 Multi-Function Optical Time-Domain Reflectometer/Network Tool by Triplett is an essential device for fiber length testing, event mapping, and network cabling installation and maintenance. With its 5.5 inch OLED display, it allows technicians to confirm the quality of fiber optic links, measure transmission attenuation, identify faults, and perform various network tests. This user-friendly tool is equipped with a full set of accessories and offers various functionalities that make it indispensable for any installer.
Triplett OTDR1315 Camera Features
- Dynamic Range: 26dB (1310nm) / 24dB (1550nm) - ensures accurate measurements over long distances.
- Event Blind Zone: ≤1.6m, Attenuation Blind Zone: ≤8m - minimizes measurement errors at close ranges.
- Testing Range: Up to 200km for fiber length measurement - ideal for long-haul fiber applications.
- Optical Power Meter: Measures -70 ~ +6dBm - facilitates comprehensive testing of signal strength.
- Stable Laser Source: Supports CW/270/330/1000/2000Hz - versatile for different testing scenarios.

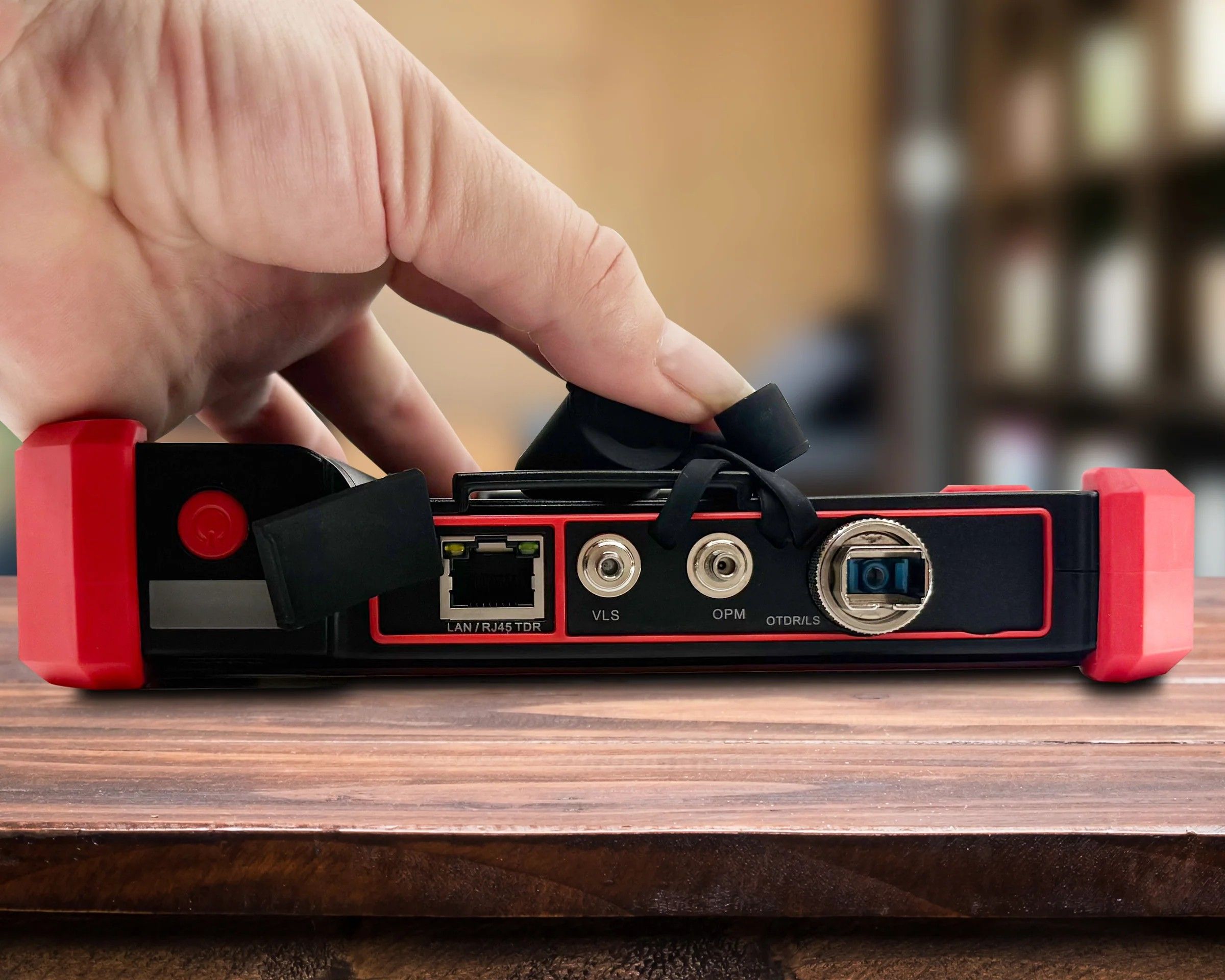

- Visual Fault Locator (VFL): 10mW laser, 650nm wavelength, 8km range - quickly identifies cable faults visually.

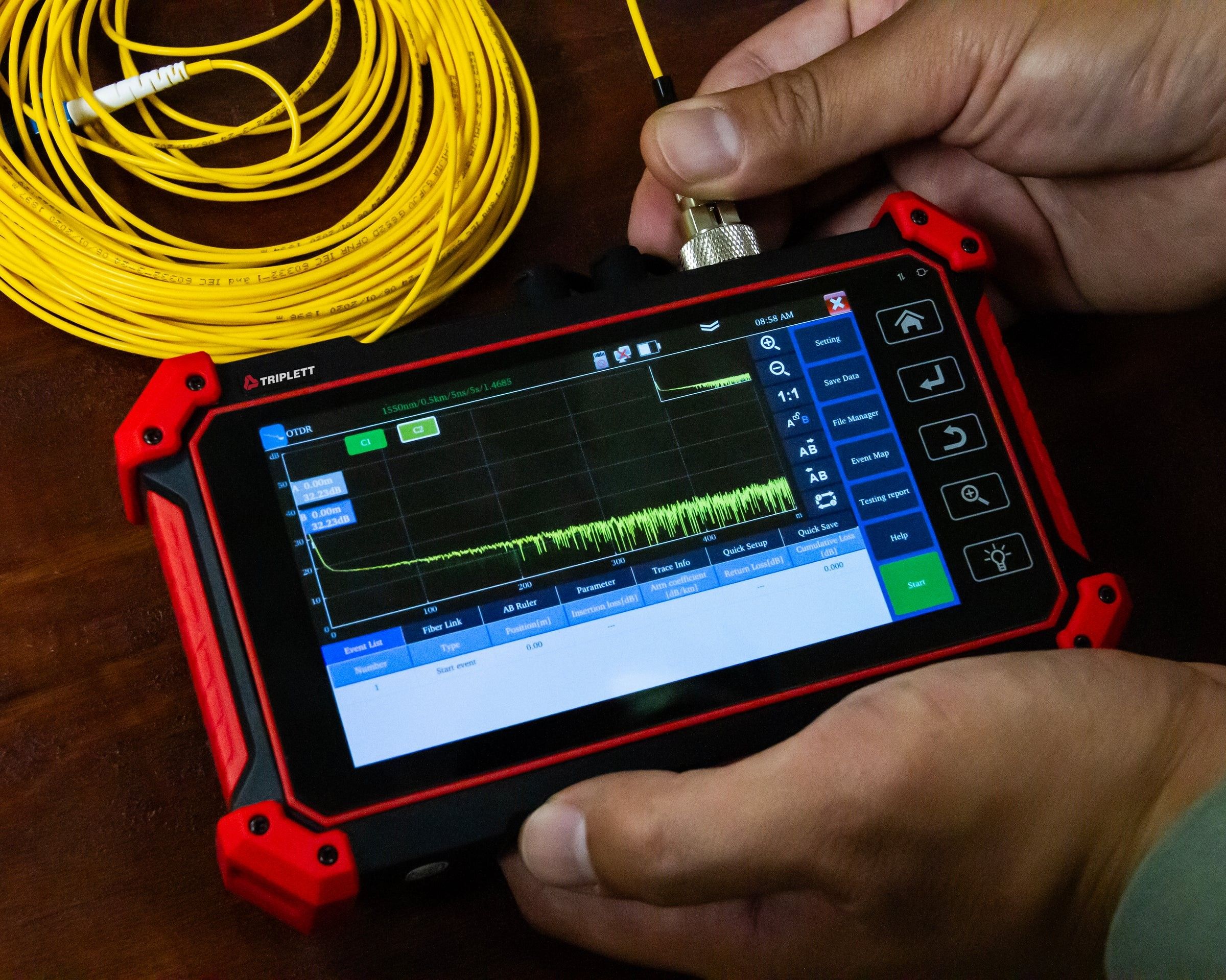

- Fiber Event Mapping: Identifies connection/fusion points, loss, and attenuation - streamlines troubleshooting processes.
- Report Generation: Saves test reports in SOR standard format and PDF - enables easy documentation and sharing.

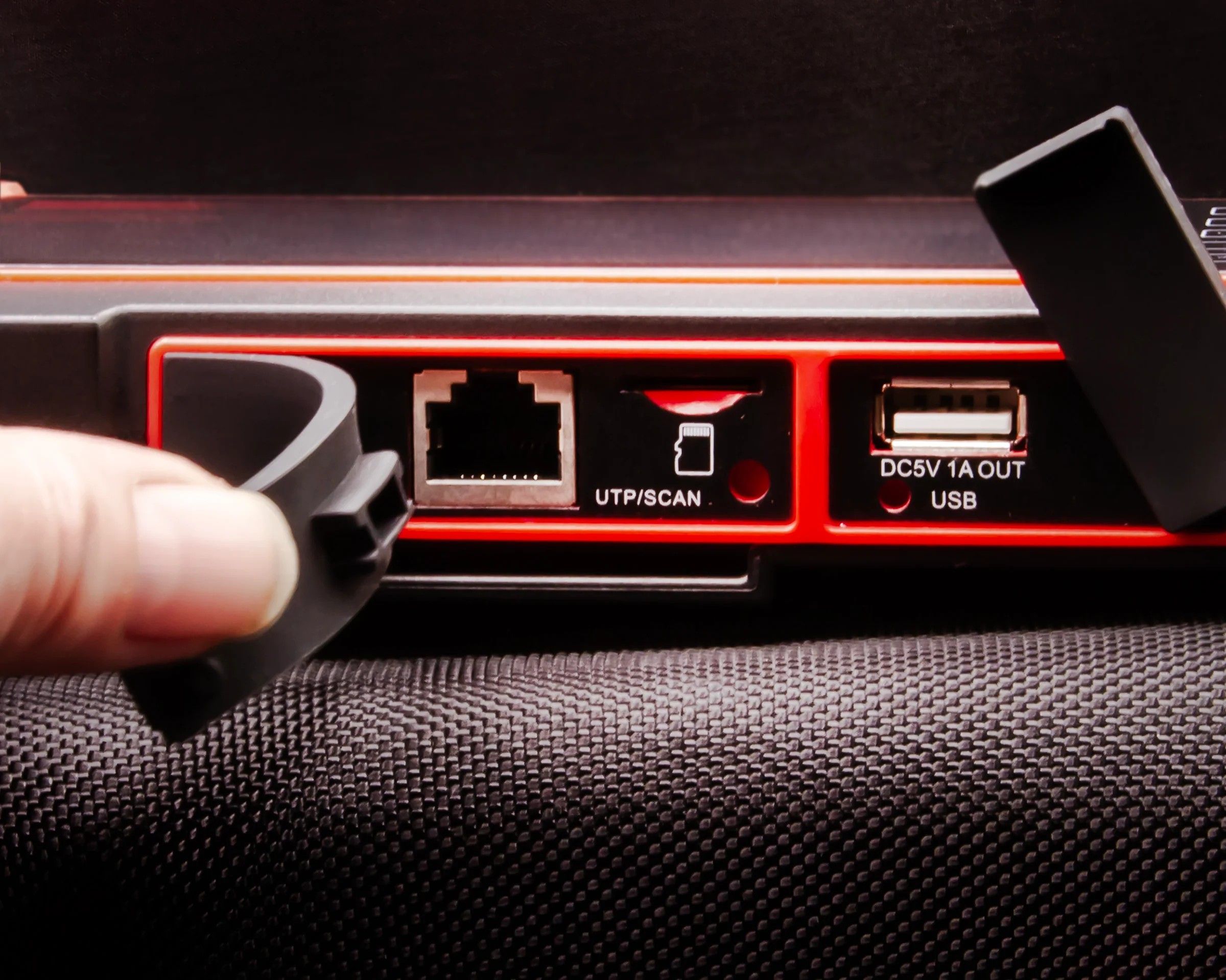

- Network Testing: IP scan, PPPoE, port flashing, FTP server, and Ping test - comprehensive network diagnostics.
- UTP Cable Testing: Detects opens, shorts, and miswires - ensures high-quality network installation.
- Battery: Rechargeable 3.7V 4000mAh Li-Po battery (6-hour runtime, 3.5-hour charge time) - provides long-lasting use on the job.
- Multilingual Support: 14 languages including English, Chinese, Portuguese, French, Spanish, and more - accessible for global users.

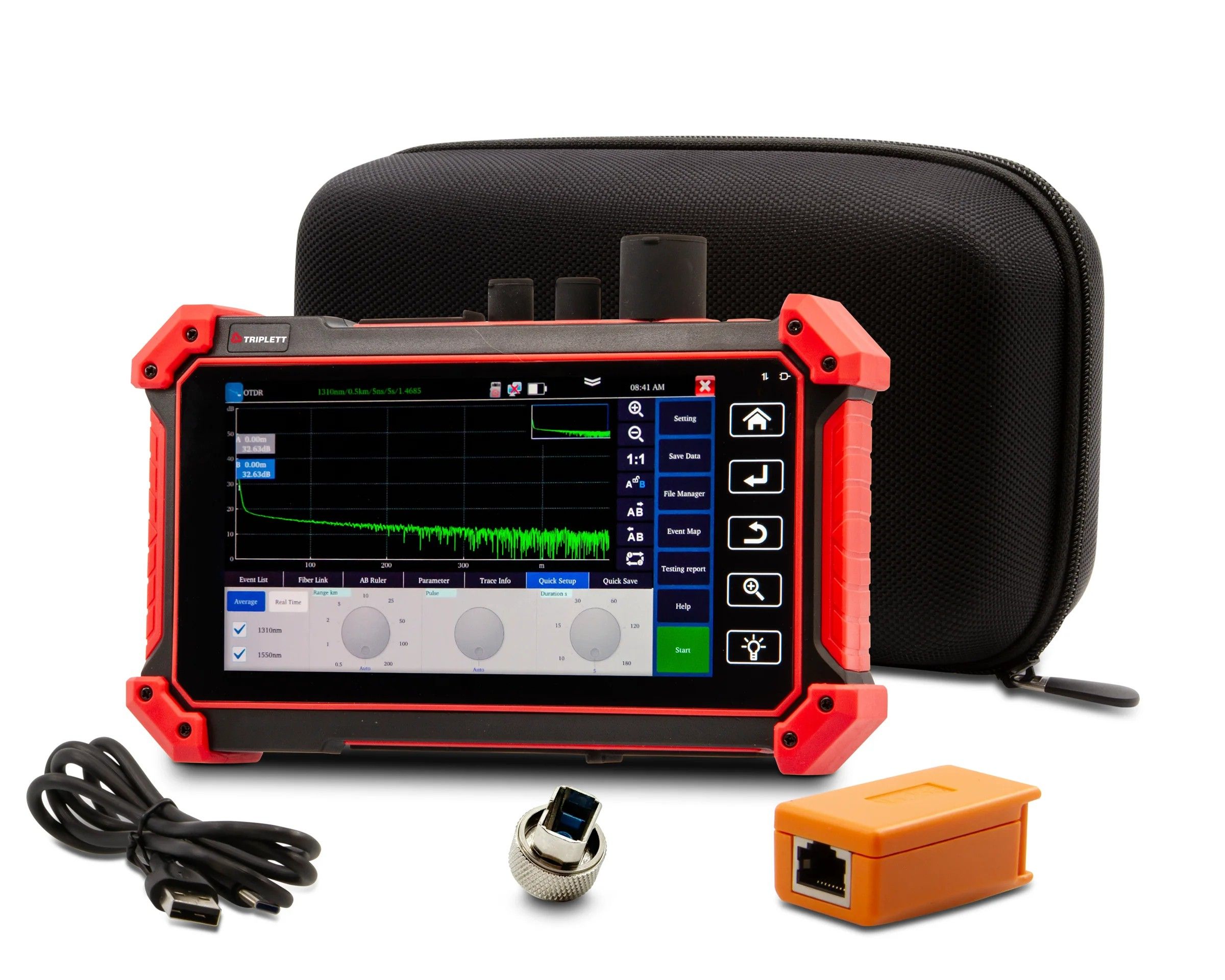

- Includes: Battery, AC Adapter/Charger, Tracer Probe, FC/SC/ST/LC connectors, FC/APC-FC/UPC jumper cable - all-inclusive package for immediate use.
Detailed Specifications for Triplett OTDR1315
| Specification | Details |
|---|---|
| Dynamic Range | 26dB (1310nm) / 24dB (1550nm) |
| Event Blind Zone | ≤1.6m, Attenuation Blind Zone: ≤8m |
| Testing Range | Up to 200km |
| Optical Power Meter | -70 ~ +6dBm |
| Stable Laser Source | CW/270/330/1000/2000Hz |
| Visual Fault Locator | 10mW laser, 650nm wavelength, 8km range |
| Report Generation | SOR standard format and PDF |
| Network Testing | IP scan, PPPoE, port flashing, FTP server, and Ping test |
| Battery | 3.7V 4000mAh Li-Po (6-hour runtime, 3.5-hour charge time) |
| Multilingual Support | 14 languages |
SKU  | OTDR1315 |
|---|---|
| Manufacturer | Triplett |
