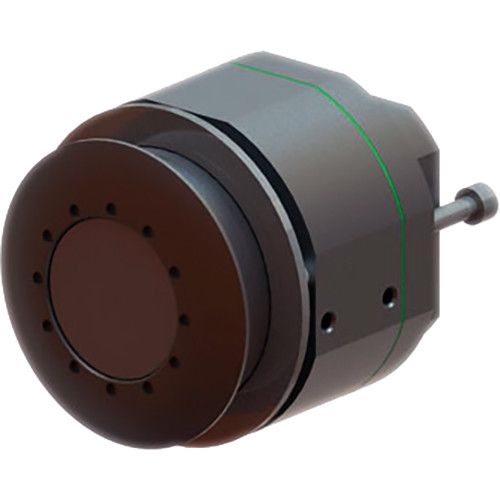

Mobotix MX-SM-TR237 Thermal Sensor Module TR with Lens B237 for FlexMount S15 Dual Thermal Camera

The MX-SM-TR237 from Mobotix is a Thermal Sensor Module TR with Lens B237 for FlexMount S15 Dual Thermal Camera. In combination with the camera firmware version 4.3.4.66 or higher, every previously delivered S15 can operate with TR thermal sensor modules and be converted into a high-end thermographic camera.

Mobotix MX-SM-TR237 Camera Features

• Enhanced System Solution: Utilizes the latest MOBOTIX thermographic image technology with thermal radiometry for accurate temperature measurement.
• Highly Sensitive Thermal Image Sensor: Features NETD typ. 50 mK, <79 mK, with an IR range of 7.5 to 13.5 micrometers, allowing for high-quality thermal imaging at up to 9 frames per second.
• Flexible Sensor Connectivity: One or two BlockFlexMount sensor modules connect to the S15 with a standard sensor cable, offering easy installation options.
• Weatherproof Mounting: Designed to be mounted in a weatherproof manner without the need for additional accessories, ensuring durability in various environments.
• Robust Protection Class: Rated IP66, making it suitable for use in harsh conditions with an ambient temperature range of -30°C to +60°C/-22°F to +140°F.
• Durable Housing: Constructed from black anodized aluminum, providing both strength and aesthetics.

Mobotix MX-SM-TR237 Detailed Specifications
