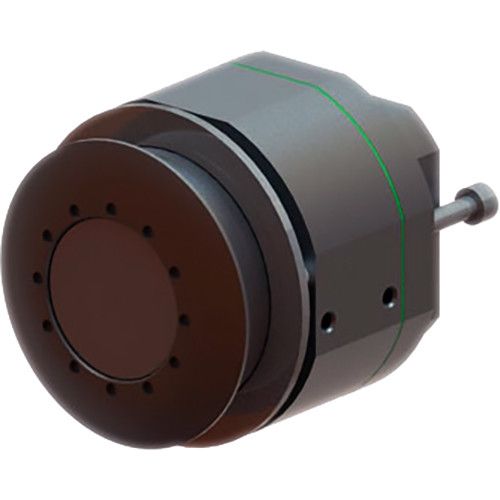

Mobotix MX-SM-TR119 Thermal Sensor Module TR with Lens B119 for FlexMount S15 Dual Thermal Camera

The MX-SM-TR119 from Mobotix is a Thermal Sensor Module TR with Lens B119 for FlexMount S15 Dual Thermal Camera. In combination with the camera firmware version 4.3.4.66 or higher, every previously delivered S15 can operate with TR thermal sensor modules and be converted into a high-end thermographic camera.

Mobotix MX-SM-TR119 Thermal Sensor Module Features

• Enhanced Imaging: Enhanced S15 system solution based on the latest MOBOTIX thermographic image technology with thermal radiometry adds precision to your thermal imaging capabilities.
• High Sensitivity: Highly sensitive thermal image sensor with NETD typ. 50 mK, <79 mK, IR range 7.5 to 13.5 micrometers, uncooled micro bolometer, and up to 9 frames per second for superior performance in low-contrast environments.
• Versatile Connectivity: One or two BlockFlexMount sensor modules can be connected to the S15 with a standard sensor cable, allowing for flexible configurations.
• Weatherproof installation: Can be mounted in a weatherproof way without additional accessories, ensuring durability in various environmental conditions.
• Rugged Protection: Protection class IP66 and an ambient temperature range of -30°C to +60°C/-22°F to +140°F for reliable operation in extreme conditions.
• Durable Housing: Constructed from black anodized aluminum for enhanced durability and corrosion resistance.

Mobotix MX-SM-TR119 Thermal Sensor Module Specifications
