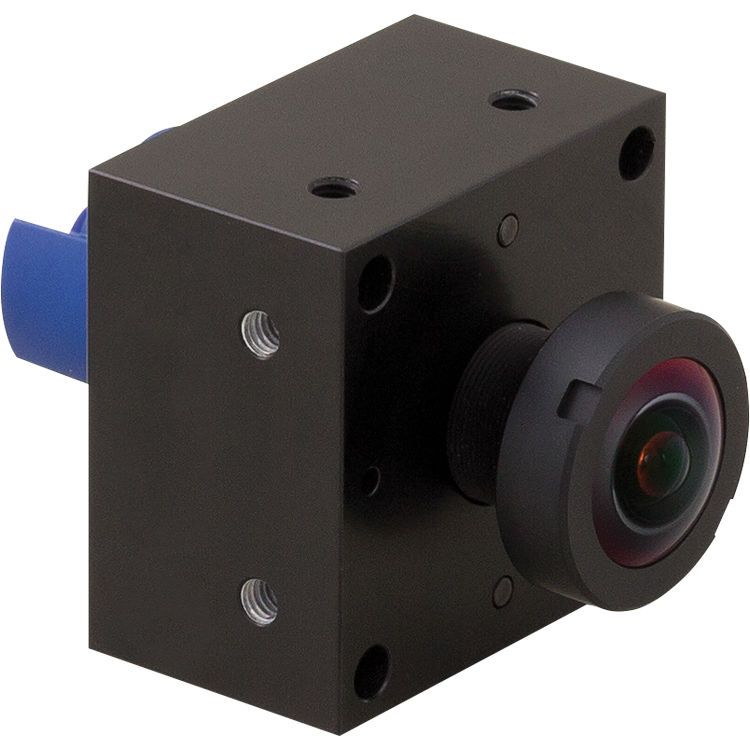

Mobotix MX-BFM-MX-D10-6MP BlockFlexMount Day Sensor Module 6MP with L10 Lens for S15D Camera
SKU
MX-BFM-MX-D10-6MP
Model No
MX-BFM-MX-D10-6MP
$208.32
Product Highlights
- Enhanced S15D system solution based on the latest MOBOTIX technology (6 MP, MxLEO etc.)
- If required, the user can exchange and set the focus of the lens himself (not applicable to versions with L12)
- Mixed operation with the BlockFlexMount and standard sensor module possible
- BlockFlexMount contains a microphone, status LEDs and several practical screw openings (M4x5) for fast and easy installation
- Protection class IP30 (protected against access with a tool)
Speak to an expert
The MX-BFM-MX-D10-6MP BlockFlexMount Day Sensor Module is designed for enhanced performance with the S15D camera, providing versatile installation options. Equipped with a 6MP resolution and an L10 lens, this sensor module supports various applications, from ATMs to discreet installations in machinery and architecture. Its robust design, easy mounting features, and excellent environmental protection make it an ideal solution for modern surveillance needs.
Mobotix MX-BFM-MX-D10-6MP Features
- For S15D: Specifically designed to enhance the S15D camera system, maximizing compatibility and performance.
- Latest Technology: Integrates advanced MOBOTIX technologies like 6 MP resolution and MxLEO for superior image clarity and additional features.
- Flexible Connections: Allows for one or two BlockFlexMount sensor modules, connected via standard sensor cables for efficient setup.
- User-Adjustable Focus: Facilitates manual adjustment of the lens focus for customized imaging (not applicable to L12 versions).
- Mixed Operation: Supports simultaneous use with standard sensor modules, enhancing versatility for diverse surveillance setups.
- Built-In Features: Comes with a microphone, status LEDs, and multiple screw openings (M4x5) for simple, quick installation.
- Durable Protection: Designed with IP30 protection against unauthorized access, ensuring longevity in various environments.
- Temperature Range: Operates efficiently within an ambient temperature range of 0°C to +50°C (32°F to 122°F), suitable for different conditions.
Mobotix MX-BFM-MX-D10-6MP Detailed Specifications
| Feature | Details |
|---|---|
| Resolution | 6 MP |
| Lens | L10 |
| Compatibility | Designed for S15D camera |
| Connection Type | Sensor cable (standard module connections) |
| Focus Adjustment | User-exchangeable (except L12 versions) |
| Mixed Operation | Supports BlockFlexMount and standard sensor modules |
| Microphone | Integrated |
| Status LEDs | Yes |
| Installation | Easy with M4x5 screw openings |
| IP Protection | IP30 |
| Operating Temperature | 0°C to +50°C (32°F to 122°F) |
SKU  | MX-BFM-MX-D10-6MP |
|---|---|
| Manufacturer | Mobotix |
