Adams Rite MS1881-05-682 Two-Point Flushbolt with Teardrop Shaped Turn in Satin Chrome Anodized

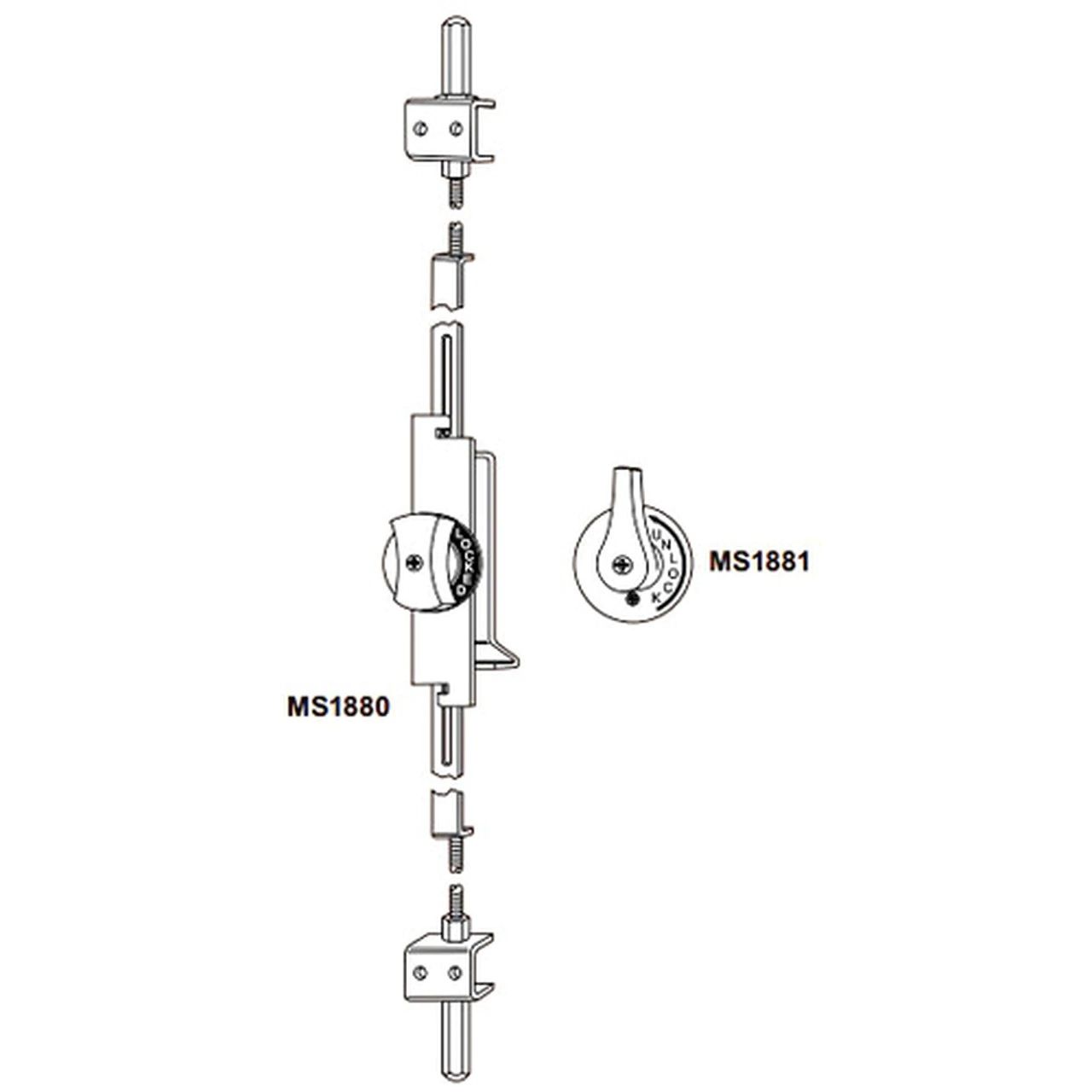

The MS1881-05-682 from Adams Rite is a two-point flushbolt with teardrop shaped turn in satin chrome anodized. The MS1881 Series Two-Point Flushbolts offer greater convenience than flip-lever flushbolts as it is processed with one operation instead of two. It also promotes security by removing an element of human error. A positive blocking device makes it impossible to turn the key in the active door unless the inactive leaf has first been secured. This two-point flushbolt must be installed in conjunction with a pivoted bolt MS deadlock. It Cannot be unlocked when pivoted bolt is in locked position. For its operation turn knob or lever 180 degrees clockwise to throw hardened steel bolts into header and threshold and clear strike opening so pivoted MS bolt can enter from active door. Its counterclockwise turn retracts vertical bolts and blocks entry of pivoted bolt.

Features

• Finish: Satin Chrome for a sleek and modern look that enhances aesthetic appeal.
• Cylinder Height: Adjusts from 47-1/16" to 51" for versatile installation options.
• Lever Design: Teardrop shape lever with clear directional indicators for intuitive use.
• Security Mechanism: Ensures the active door cannot be unlocked while the pivoted bolt is locked, enhancing safety.
• Strike Requirements: Designed to use a 1/2" diameter hole in metal headers and thresholds for consistent performance.
• Material: Bolt is made of stainless steel with a 23/32" throw ensuring durability and reliability.
• Compatibility: Designed to operate seamlessly with any MS pivoting deadlock for maximum security.

Adams Rite MS1881-05-682 Detailed Specifications
