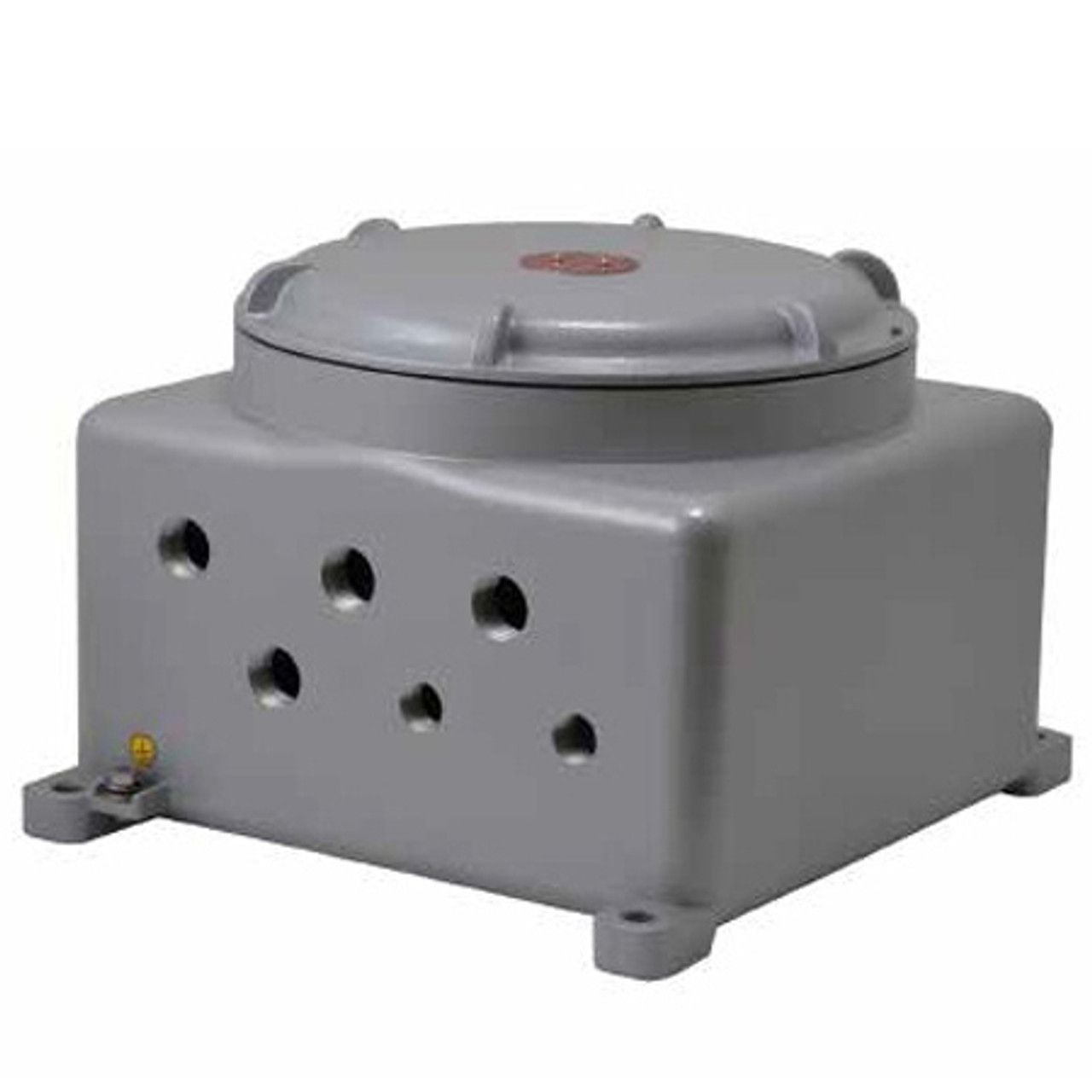

Pelco MBA3S5A Explosion-proof Communication Box - Aluminium - 120VAC

MAXIMUS MBA is much more than just a simple explosion-proof junction box. In fact it is defined as a communication box equipped with everything needed to connect one or more IP or analog cameras. MAXIMUS MBA has been designed to integrate and work exclusively with the MAXIMUS range of Videotec products.

Features

• Certifications: Certifications for use in Zones 1 and 2, IIC T5 or T6 Group (Gas) and in Zones 21 and 22, IIIC T100ºC or T85ºC Group (Dust) ensure safety in hazardous environments.
• Construction Material: Copper-free marine grade aluminium construction, with RAL 9006 external epoxy paint, offers durability and resistance to corrosion.
• Compatibility: Designed to work exclusively with Videotec products and accessories, allowing for seamless integration.
• Space Efficiency: Plenty of space for cables and connections simplifies installation and organization.
• Input Voltage Options: Input voltages available: 230Vac, 120Vac, 24Vac provide flexibility for different applications.
• Electronics Range: Extended/Industrial range electronics ensure high performance in demanding conditions.
• Temperature Range: Operating temperature: from -40ºC (-40ºF) up to +70ºC (158ºF) guarantees operation in extreme environments.
• Ingress Protection: IP66 rating protects against dust and water, ensuring reliability in challenging conditions.

Pelco MBA3S5A Explosion-proof Communication Box Detailed Specifications
