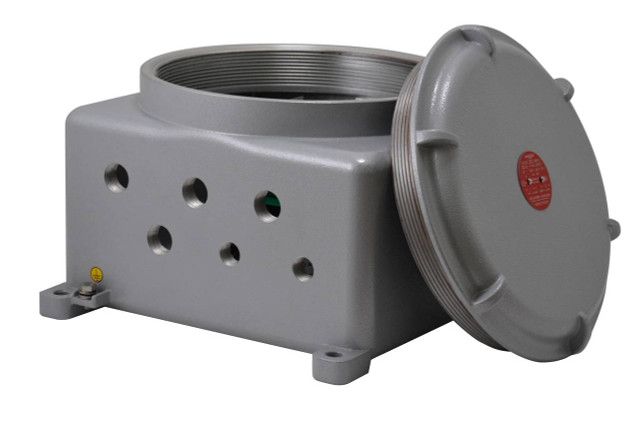

Pelco MBA2S5A Explosion-proof Communication Box in Aluminum

MAXIMUS MBA is an advanced explosion-proof communication box designed for seamless integration with IP and analog cameras. Built from durable marine-grade aluminum and featuring a robust epoxy paint finish, it is specifically engineered to withstand harsh industrial and marine environments. The MBA model supports local low-voltage power supply and comes equipped with an integrated Ethernet switch, making it a reliable choice for professional installations, ensuring easy access to connections and cable management, and offering exceptional performance in extreme temperatures.

Pelco MAXIMUS MBA2S5A Communication Box Features

• Certifications: Use in Zones 1 and 2, IIC T5 or T6 Group (Gas), Zones 21 and 22, IIIC T100°C or T85°C Group (Dust) ensures safety in hazardous areas.
• Construction: Copper-free marine-grade aluminum with RAL 9006 epoxy paint provides superior corrosion resistance.
• Compatibility: Specifically designed to work with Videotec products and accessories, ensuring optimal functionality.
• Cable Management: Ample space for cables and connections simplifies installation procedures and maintenance.
• Integrated Ethernet Switch: Built-in switch supports 3 RJ45 ports (Fast Ethernet) and 1 SFP port for fiber optic connection, enhancing connectivity options.
• Video Signal Bypass: Bypasses for two analog video signals via BNC connectors ensure versatility in signal transmission.
• I/O Connections: Two bypasses for I/O signals with multi-pin connectors enhance connectivity capabilities.
• Power Input: Accepts input voltages of 24Vac for efficient energy use.
• Extended Electronics Range: Designed for industrial applications, ensuring reliability in harsh conditions.
• Operating Temperature: Functional within a range of -40°C to +70°C (-40°F to 158°F), adaptable to a variety of environments.
• Ingress Protection: Rated IP66, providing complete protection against dust and water ingress.

Pelco MAXIMUS MBA2S5A Detailed Specifications
