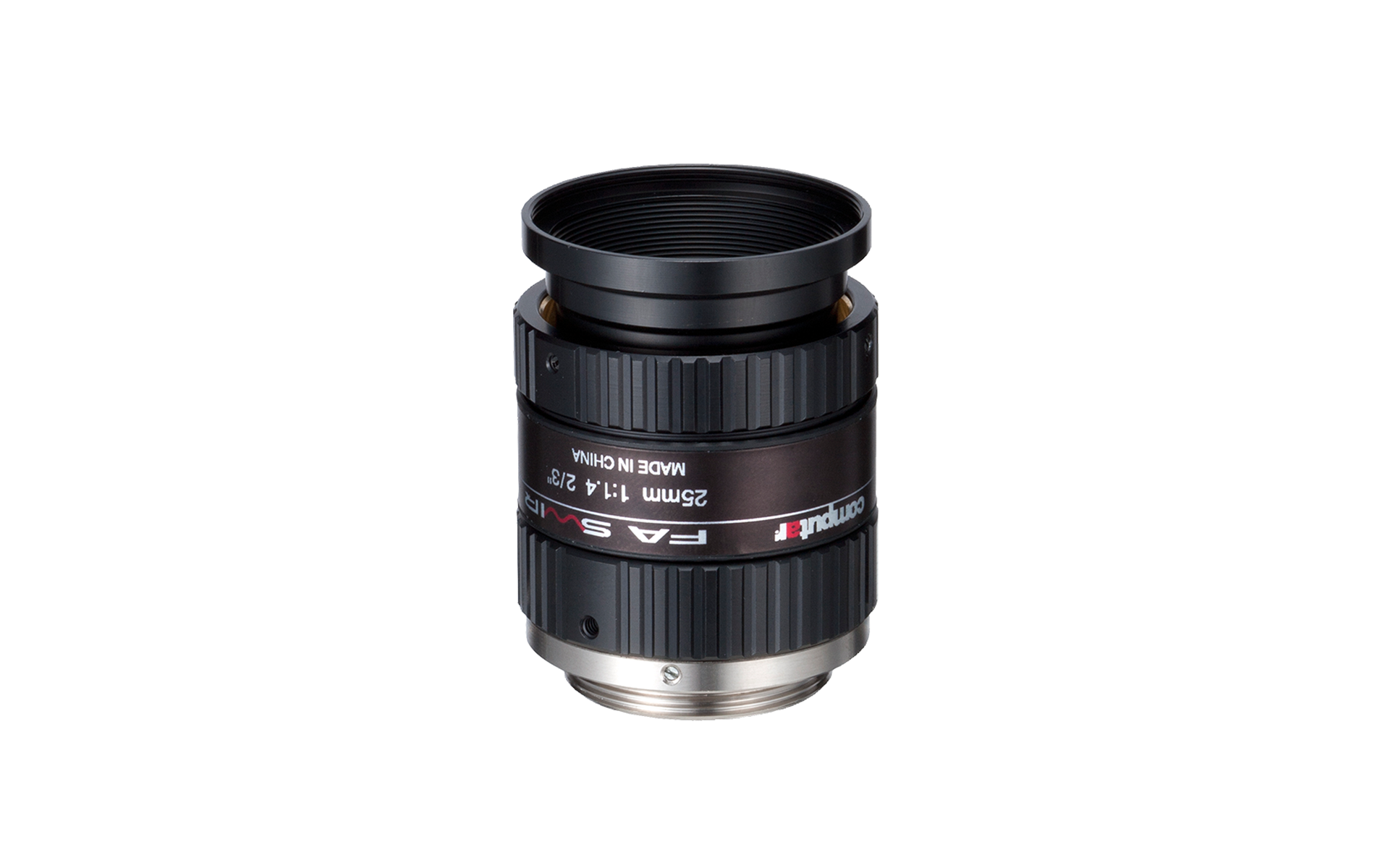

Computar M2514-SW 2/3" 25mm, F1.4, C- Mount, Manual Iris

Name: Computar M2514-SW 2/3" 25mm, F1.4, C- Mount, Manual Iris
Brand: Computar
SKU: M2514-SW
Price: 652.17 USD
Availability: InStock

SKU

M2514-SW

Be the first to review this product

Skip to the end of the images gallery

Skip to the beginning of the images gallery

Computar M2514-SW 2/3" 25mm, F1.4, C- Mount, Manual Iris M2514-SW by Computar

Model No

M2514-SW

$652.17

Add to Quote

Volume
Discounts

Free System
Design

Lifetime
Tech Support

Free Shipping
Over $450*

Add to Wishlist Add to Compare

Product Highlights

Unique coating technology delivers high transmission from 800nm-1,700nm
High-resolution, low-distortion design offers Megapixel clarity in hyperspectral application
Also available in 16mm, 35mm and 50mm
Designed around the popular 12.3mm image circle format
The industry's most compact form factor. Fits in most applications

Add to Wishlist Add to Compare

Speak to an expert

Call: 800.955.5201 | Request A Call | Live Chat | Message Support

Details

The M2514-SW from Computar is a high-performance SWIR (Short Wave Infrared) lens meticulously crafted for Machine Vision applications in Near Infrared (NIR) and SWIR. With advanced features and exceptional optical clarity, this lens is perfect for achieving precise imaging in challenging environments.

Computar M2514-SW Camera Features

Unique Coating Technology: Delivers high transmission from 800nm-1,700nm, ensuring optimal performance in SWIR applications.
High-Resolution Design: Offers Megapixel clarity with low distortion, ideal for precise imaging in hyperspectral applications.
Variety of Focal Lengths: Also available in 16mm, 35mm, and 50mm to meet diverse application needs.
Image Circle Compatibility: Designed around the popular ?12.3mm image circle format for versatility in mounting.
Compact Form Factor: The industry’s most compact design, fitting seamlessly into most applications without sacrificing performance.

Detailed Specifications for Computar M2514-SW

Feature	Details
Focal Length	25mm
Aperture	F1.4
Mount Type	C-Mount
Transmission Range	800nm-1,700nm
Design	High-resolution, low-distortion
Compatibility	?12.3mm image circle
Available Variants	16mm, 35mm, 50mm
Form Factor	Compact design

Specifications

SKU	M2514-SW
Manufacturer	Computar
Lens Size	25 mm
Mount Type	C Mount
Iris Type	Manual Iris
Desired Aperture	F/1.4
Focus Control	Manual
Field of View (in feet)	D-24.7° , H- 19.8° , V-14.9°
CCD Size	2/3"
