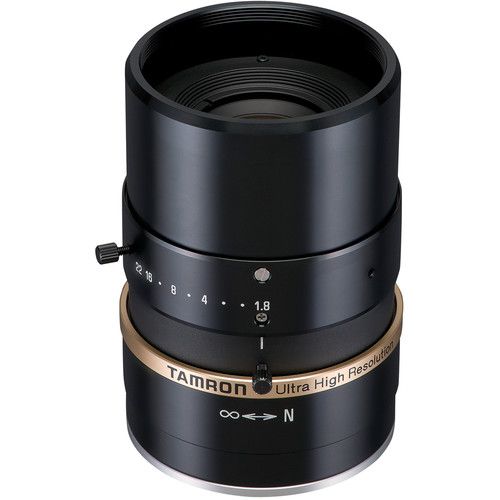

Tamron M23FM35 2/3" Machine Vision Fixed-Focal Lens, 35mm

The M23FM35 from Tamron is a 2/3" Machine Vision Fixed-Focal Lens, 35mm. This type of lens is specifically designed for use with 2/3" sensor cameras. The optimized focus lock screws ensure that the object being captured is not distorted. The vibration- and shock-resistant design maintains the initial optical parameters. Designed to match the performance of pixel pitch 2.5µm sensors, the lens allows the camera to deliver high resolution from center to periphery (image height 90%).

Tamron M23FM35 2/3" Machine Vision Lens Features

• High Resolution: Designed to match pixel pitch 2.5 µm sensors, the lens realizes high resolution from the center to the periphery (image height 90%).
• Minimal Distance: Achieves a minimum object distance (MOD) of 5.9", allowing for close-up photography.
• Low Distortion: Engineered to minimize distortion, ensuring crisp and clear images.
• Unique Iris Design: Features 6 iris blades that maintain performance level of 8 blades, providing better image quality.
• Optimized Focus Lock: Equipped with optimized focus lock screws to prevent distortion in captured images.
• Durable Construction: Metal mount and components enhance durability for long-term usage.
• Vibration Resistant: The design is vibration- and shock-resistant, preserving optical performance over time.

Tamron M23FM35 2/3" Detailed Specifications
