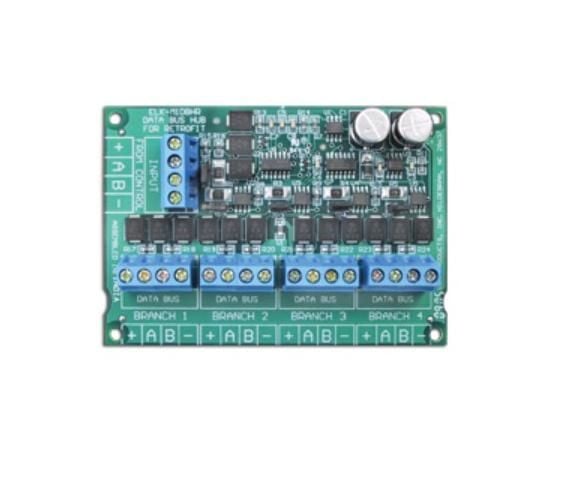

ELK M1DBHR Data bus hub Retrofit (for existing 4 cond. wiring)

SKU
M1DBHR

ELK Model M1DBHR

ELK M1DBHR Data bus hub Retrofit (for existing 4 cond. wiring)

Free shipping over $450
Model No
M1DBHR
$135.50
Volume Discounts Volume
Discounts
Free System Design Free System
Design
Lifetime Tech Support Lifetime
Tech Support
Free Shipping Over $450* Free Shipping
Over $450*
Product Highlights
  • Splits The Controls' RS-485 Data Bus Output Into 4 Managed Branches
  • Each Managed Branch Can Have 2 Parallel Home Run Cables (Total Of 8 Home Runs)
  • EOL Termination Of Each Branch Insures Proper Operation And Supervision
  • Works With Std. 4 Conductor Home Run Wire
  • Includes Mounting Rails for ELK-SWB Boxes

Overview

The ELK M1DBHR Data Bus Hub Retrofit is an essential device for modernizing your security system, particularly when integrating a M1Gold or M1EZ8 Control with older panel wiring. This active RS-485 data bus hub effectively manages and splits the 485 data bus into four branches, accommodating multiple keypad connections for enhanced system capability. With built-in EOL termination for each branch, it guarantees reliable operation and supervision of your security setup.

ELK M1DBHR Data Bus Hub Retrofits & Features

  • Splits: The controls' RS-485 data bus output into 4 managed branches for better organization and performance.
  • Parallel Home Runs: Each managed branch supports 2 parallel home run cables, allowing for a total of 8 home runs to expand your system.
  • EOL Termination: Ensures proper operation and supervision on each branch, enhancing overall reliability.
  • Compatibility: Works seamlessly with standard 4 conductor home run wires, making it easy to integrate into existing setups.
  • Expandable: An additional unit can be connected in parallel to the control, increasing total system capacity as needed.
  • Mounting Included: Comes with mounting rails for ELK-SWB boxes, simplifying installation.

ELK M1DBHR Data Bus Hub Detailed Specifications

TypeActive RS-485 Data Bus Hub
Maximum Branches4 Managed Branches
Total Home Runs Supported8 Home Runs (2 Per Branch)
EOL TerminationYes (For Each Branch)
CompatibilityStandard 4 Conductor Wiring
ExpandableYes (With Additional Unit)
Included AccessoriesMounting Rails for ELK-SWB

Specifications

SKU  M1DBHR
Manufacturer  ELK
