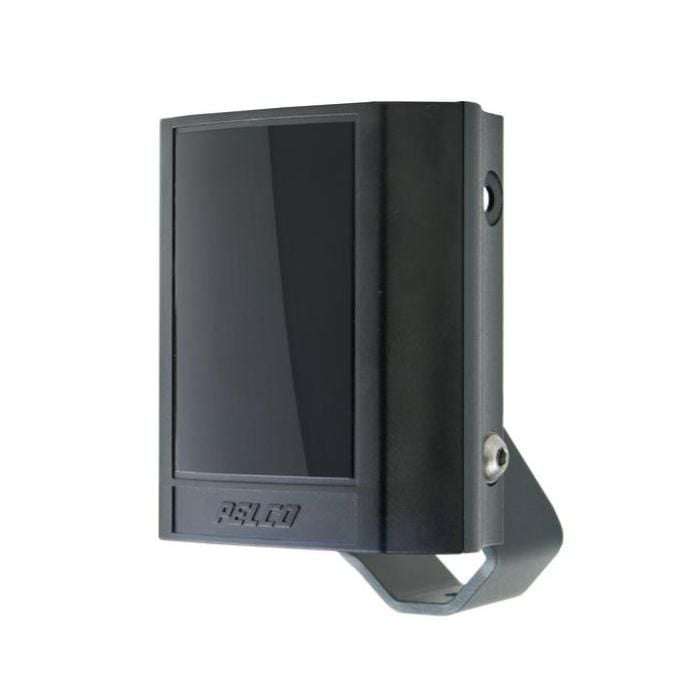

Pelco IR940S-30 Covert IR Illuminator with 30m Range

The IR940S-30 from Pelco is a Covert Infrared LED Illuminator that features an Interchangeable Diffuser System (IDS) which allows users to quickly and easily change the angle of illumination to match the required field of view. When used with the factory-installed IDS or with the standard IDS (included), the illuminator is capable of achieving an illumination angle of 35° or 60° respectively. You can also use the LENSPKS-LED wide-angle lens pack (available separately) to increase the angle to 80° or 120°. The IDS uses holographic light-diffusing technology which produces a targeted and accurate beam pattern thereby directing the light to the required area. This technique allows better illumination distances and prevents overexposure of foreground objects.

IR940S-30 comes with LED lifetime management system which ensures high reliability and consistent optical output. In addition, the IR940S-30's LED status feedback system provides an instant response regarding the operational performance of the illuminator, allowing easy commissioning and maintenance checks. The illuminator can also be used with an optional RC-LED remote control with a variety of advanced features that enable the setting up of the illuminator quickly and safely from the ground level.

Pelco IR940S-30 Camera Features

Features

• Distance: Distances Up to 30 m (98 ft) - Ideal for long-range surveillance applications.
• LED Technology: Platinum LED Technology; High Efficiency, High Reliability - Reduces energy consumption while ensuring durability.
• Automatic Operation: Built-in Photo Cell for Automatic On/Off Operation; Photocell Following Output - Ensures efficient operation without manual intervention.
• Diffuser System: Interchangeable Diffuser System (IDS) Using Lenses with Angles Up to 120 Degrees - Customizes light spread for different surveillance needs.
• LED Feedback: LED Status Feedback and Lifetime Management Systems - Provides reliability and simplifies maintenance.
• Vandal Resistance: Vandal Resistant with IK9 Mechanical Impact Resistance - Ensures longevity even in harsh environments.
• Optics: Advanced Optics for Optimal Light Distribution - Improves visibility and reduces blinding effect.
• Remote Control: Optional Remote Control Setup Functions - Includes functions like Adjust Power and Photocell Sensitivity for convenient management.
