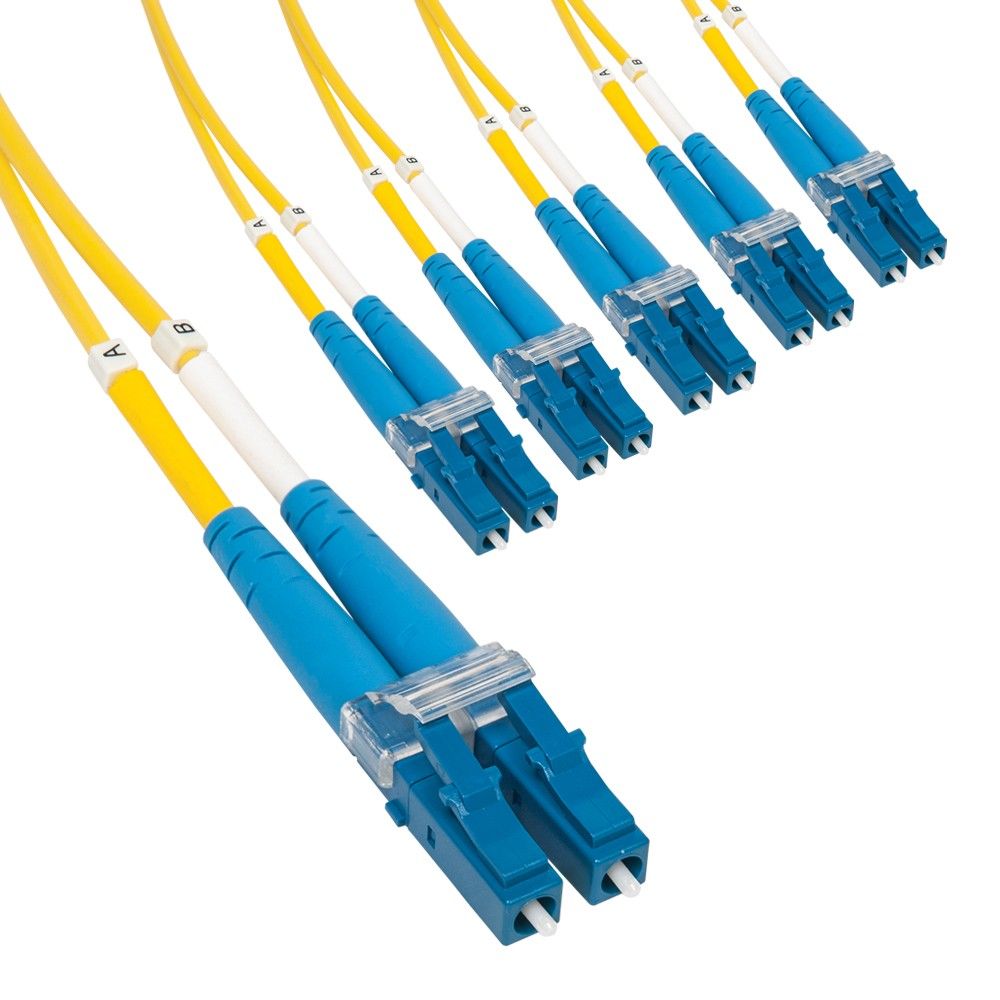

ICC ICFOJ16505 Singlemode OS2 LC to LC 9/125µm Fiber Patch Cable, 5 Meter

ICC 9 Micron LC-LC Patch Cable Features

ICC offers a 9 micron LC-LC patch cable constructed with Corning SMF-28 Ultra OS2 glass in AB to BA polarity to support high speed singlemode (SM) data transmissions. The LC to LC fiber optical cord is OS2 9/125 Duplex Fiber Cable. The yellow jacket material around the OS2 9/125 singlemode fiber optic cable is a polyolefin flame retardant compound for OFNR safety rating. It is colored yellow to signify the fiber optic jumper cable is suitable for single mode high speed networking. The LC patch cord is assembled with LC connectors for a high density data center environment. Each assembly is 100% factory tested to meet Bellcore GR-326 and TIA/EIA standards with a maximum insertion loss at 0.2dB. The data center grade duplex LC fiber connector meets EIA/TIA 604-2 standards with ceramic ferrule. The ferrule on the end of the singlemode fiber cable is pre-polished for a consequently consistent performance. Operating temperature for this OS2 fiber is -20C to +70C and minimum bend radius is 1.18in. ICC LC patch cable is RoHS compliant and complies with industry standards. Each fiber optic patch cord is factory built and tested.

Features

• Supports Long-Distance 10G Speeds: ICC LC-LC OS2 singlemode patch cable ensures exceptional signal transmission over distances of up to 40km at 1550nm (10GBase-E) and 10km at 1310nm (10GBase-L), making it ideal for high-speed data transmission in demanding environments
• Premium Construction with Corning Fiber: Built with Corning 9/125 OS2 fiber and a durable yellow OFNR-rated PVC jacket, this duplex cable features a 2.0mm diameter with zip-cord reinforcement for added strength and flexibility, ensuring long-lasting performance
• Minimal Signal Loss: With a maximum insertion loss of 0.50 dB and typical loss of 0.20 dB, this singlemode fiber patch cord delivers superior signal integrity, reducing signal degradation in high-density data centers and critical network applications
• Complies with Industry Standards: The cable meets Bellcore GR-326 and TIA/EIA 604-2 standards, providing high reliability and compliance with ISO/IEC 24702 and RoHS standards, making it a trusted solution for a wide range of industries, including healthcare, government, and finance

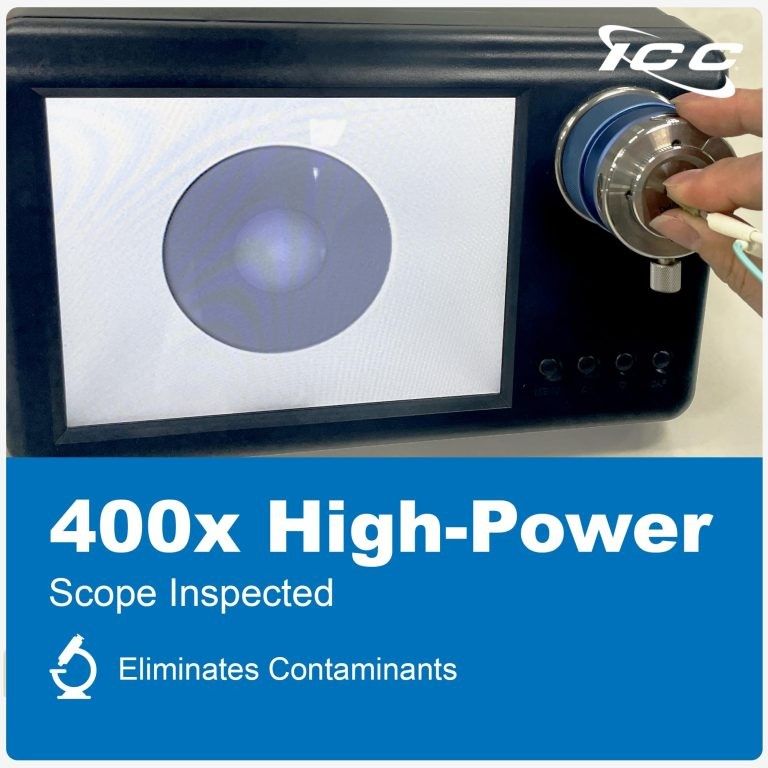

• Rigorously Factory Tested for Quality: Each ICC singlemode LC patch cord undergoes 100% factory testing to ensure optimal performance and reliability. Operating temperature: -20°C to +70°C; minimum bend radius: 0.79 inches

ICC 9 Micron LC-LC Patch Cable Specifications
