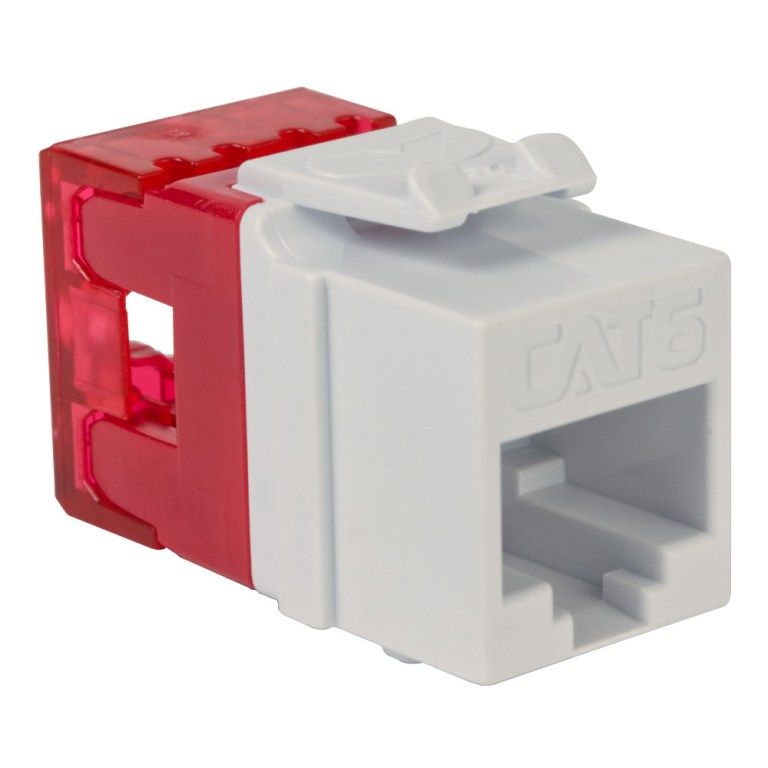

ICC IC107F6TRD CAT 6 HD Modular Connector, Red, 10 Pack

The IC107F6TRD from ICC is a CAT 6 HD modular connector, red, 10 pack. CAT6 High Density (HD) Category 6 modular jacks, RJ-45 keystone jacks, is 8-position 8-conductor (8P8C) is engineered to provide superior performance and reliability, supporting Gigabit Ethernet applications and beyond. The advanced printed circuit board design is tuned to provide optimum signal quality with maximum headroom, allowing it to exceed TIA/EIA Category 6 performance standards. It offers superior signal quality and noise reduction due to its enhanced Near-End and Far-End Crosstalk cancellation and minimum return losses. The Category 6 HD design offers a smaller rear footprint maximizing space in confined work areas.

ICC IC107F6TRD Connector Features

• CAT 6 rated connectors: provide excellent performance for data networks requiring maximum speed and bandwidth.
• PCB technology: provides maximum performance and superior signal quality.
• Enhanced crosstalk cancellation: reduces return loss and improves performance by rejecting noise and unwanted signals.
• Exceeds ANSI/TIA-568-C requirements: for permanent, channel link and component performances.
• 110 IDC termination: engineered to reduce installation time.
• Reduced rear footprint: allows for greater connectivity density and provides for more port configurations in a smaller area.

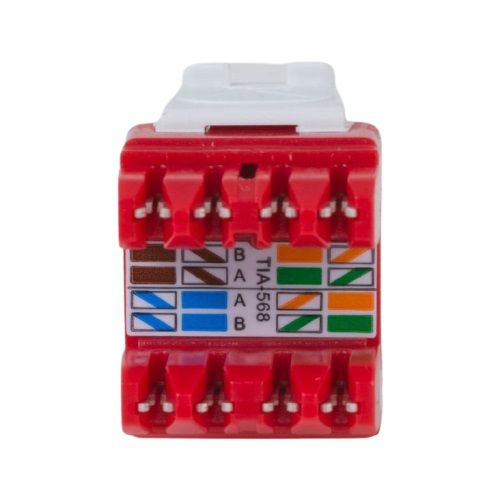

• Integrated color wiring diagram: includes TIA-568A/B for easy installation.
• Backward compatibility: works with all lower rated category components.
• Compatibility: compatible with all IC107 faceplates, inserts, surface mount boxes, and blank patch panels.
• Usage: designed for use with ICC Category 6 ICPCSK series patch cords, JackEasy™ Termination Tool ICACSPDTEH, and 110 punch down tool ICACSPDT00.
• Color: available in red.
• Packaging: 10 modules packaged with 10 wiring caps in a separate bag.
• Compliance: UL 1863 compliant.
• Country of Origin: Taiwan.
• TAA Compliance: complies with TAA standards.

ICC IC107F6TRD Detailed Specifications
