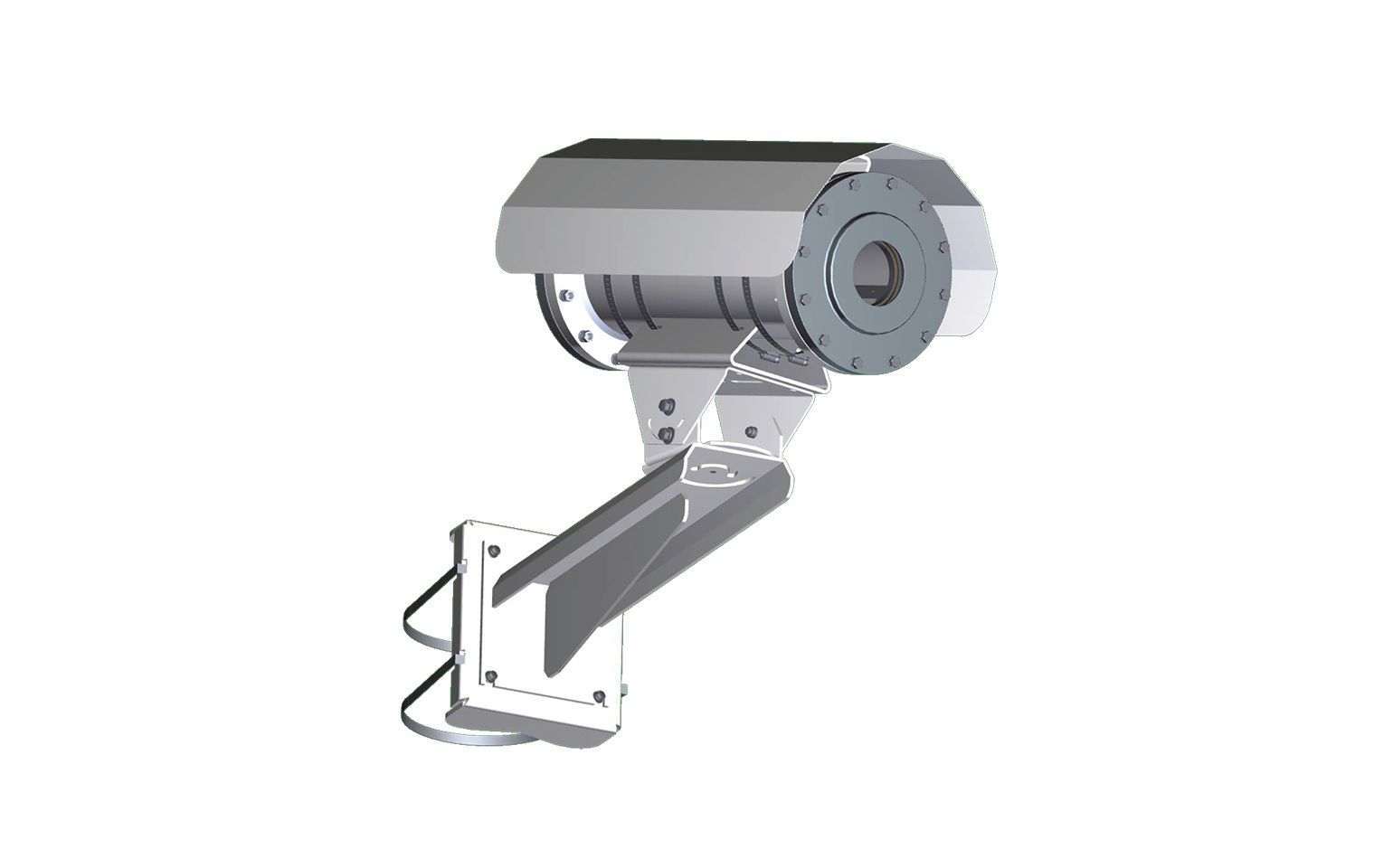

Ganz HEX-WMT Wall Mount for HEX Series Explosion-Proof Housings

The HEX-WMT from Ganz is a wall mount for HEX series explosion-proof housings, uniquely designed to support heavy installations. Each component of the HEX series mounting equipment is engineered to accommodate not only the housing and sun shield but also an additional 20 lbs (9.0kg) of internal equipment. With flexibility for adjustments, the mount allows for 60° elevation and a full 180° rotation, ensuring optimal positioning. Additionally, it is compatible with poles ranging from 3-8” in diameter, making it a versatile choice for various installation environments.

Ganz HEX-WMT Wall Mount Features

• Durable Construction: Mounts are crafted from powder-coated aluminum with stainless steel fasteners, ensuring long-lasting protection against corrosion and wear.
• Heavy-Duty Support: Designed to hold not only the HEX housing and sun shield but also an extra 20 lbs (9.0kg) of equipment, providing robust performance for heavy duty applications.
• Adjustable Orientation: Offers 60° adjustments above and below the horizon along with 180° rotation, allowing for precise positioning in diverse environments.
• Versatile Compatibility: Works seamlessly with HEX-PM Pole Mount for poles with diameters between 3-8”, ensuring flexibility in various mounting scenarios.

Detailed Specifications for Ganz HEX-WMT
