Dotworkz HD12-CD-HB Active Cooling and Heater Blower Broadcasting Camera Enclosure
SKU
HD12-CD-HB
Model No
HD12-CD-HB
$3,868.95
Product Highlights
- Power conversion from 120 VAC standards to 12 VDC input for HD cameras and temperature control electronics
- 4 cable egress locations with various gland options for multiple reliably sealed connections
- Several mounting options from pendant mounted to wall mounted to pole mounted (shown on right)
- Extended temperature range with both active heating and active cooling technology in one complete system
- Large dome lens maximizes viewing angles in all directions
Speak to an expert

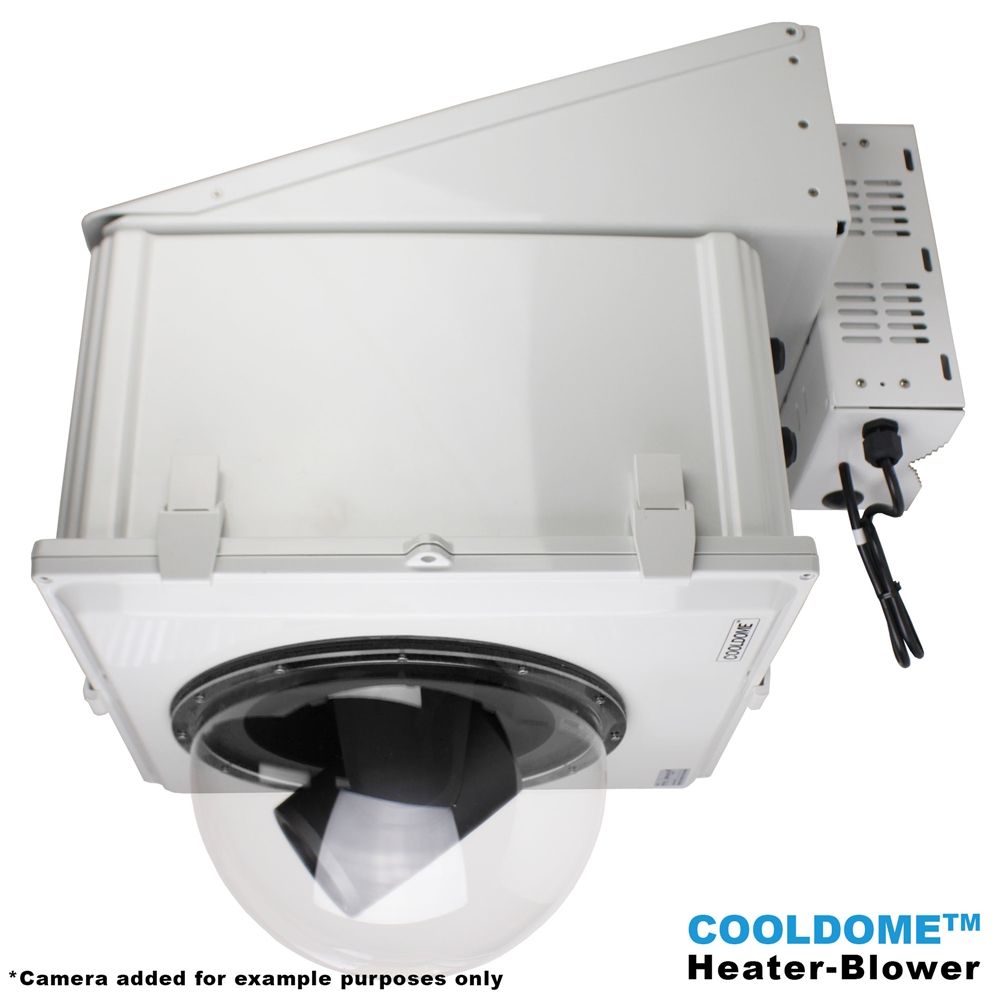

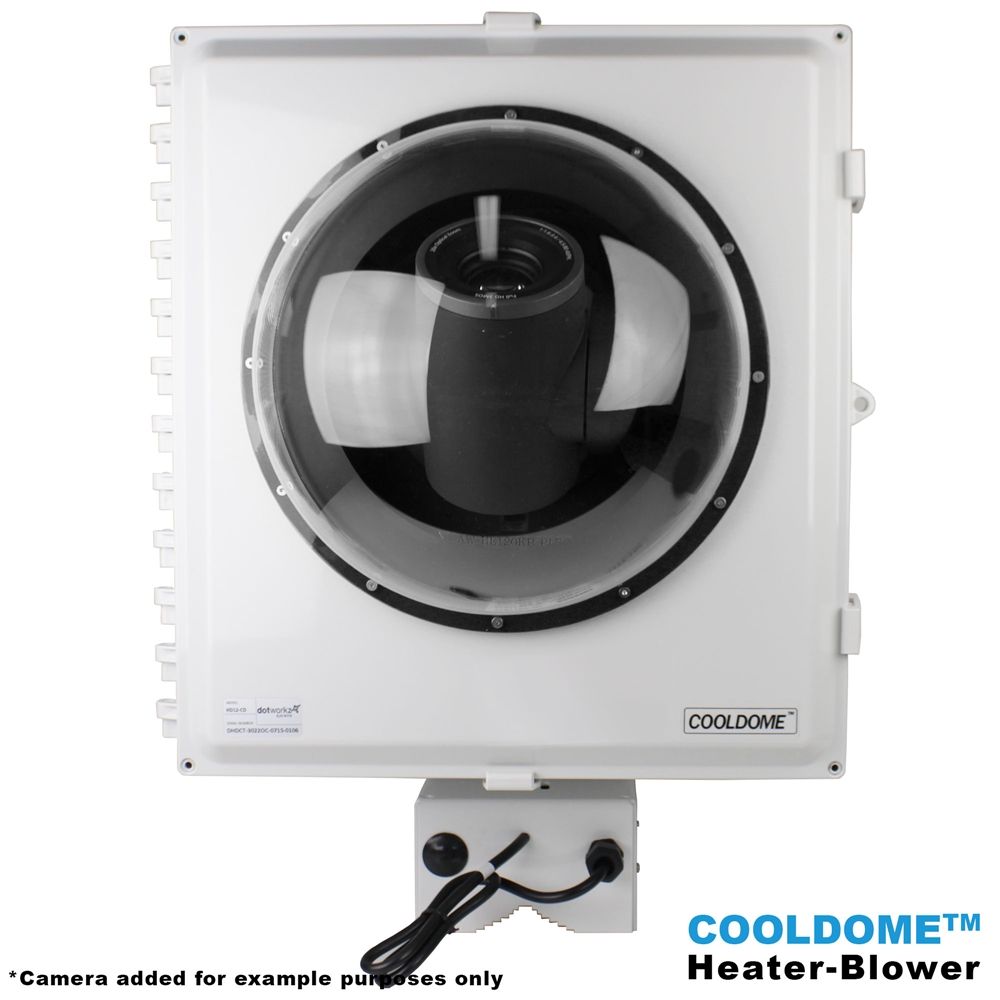

The HD12-CD-HB from Dotworkz is engineered to offer robust protection for broadcast quality PTZ cameras in extreme outdoor environments. Featuring advanced CoolDome technology along with an integrated heater and blower system, this enclosure ensures optimal performance and protection against the elements, meeting IP66/NEMA 4X standards for superior ingress protection against water, dust, and pests.
Dotworkz HD12-CD-HB Camera Features
- Power Conversion: Converts 120 VAC to 12 VDC, ensuring compatibility with HD cameras and temperature-sensitive electronics for reliable operation.
- Cable Egress Locations: Includes 4 cable egress locations with various gland options for securely sealed connections, enhancing the durability and functionality of the setup.
- Flexible Mounting Options: Supports pendant, wall, or pole mounting options, providing versatility in installation to fit various environments.
- Temperature Control: Active heating and cooling technology offer an extended temperature range, ensuring optimal camera performance in both hot and cold conditions.
- Enhanced Viewing Angles: The large dome lens design maximizes viewing angles in all directions, ensuring comprehensive surveillance coverage.
Detailed Specifications for Dotworkz HD12-CD-HB
| Feature | Details |
| Model | HD12-CD-HB |
| Ingress Protection | IP66/NEMA 4X |
| Power Input | 120 VAC to 12 VDC |
| Temperature Range | -40°F to 140°F (-40°C to 60°C) |
| Cable Egress Options | 4 locations with multiple gland variants |
| Mounting Options | Pendant, Wall, Pole mounted |
| Lens Type | Large dome lens |
SKU  | HD12-CD-HB |
|---|---|
| Manufacturer | Dotworkz |
| Form | PTZ |
| Mount Type | Pole, Wall |
Outdoor Use  | Yes |
| Outdoor Type | Cooling System, Heater & Blower |
| Glass Color | Clear |
| Power Output | 12vDC, 120 VAC |
| Dimensions | 18.7” x 19.7” x 27.4” |
| Environment | Outdoor |
| Pendant Mount Bracket | Yes |
| Color | White |
