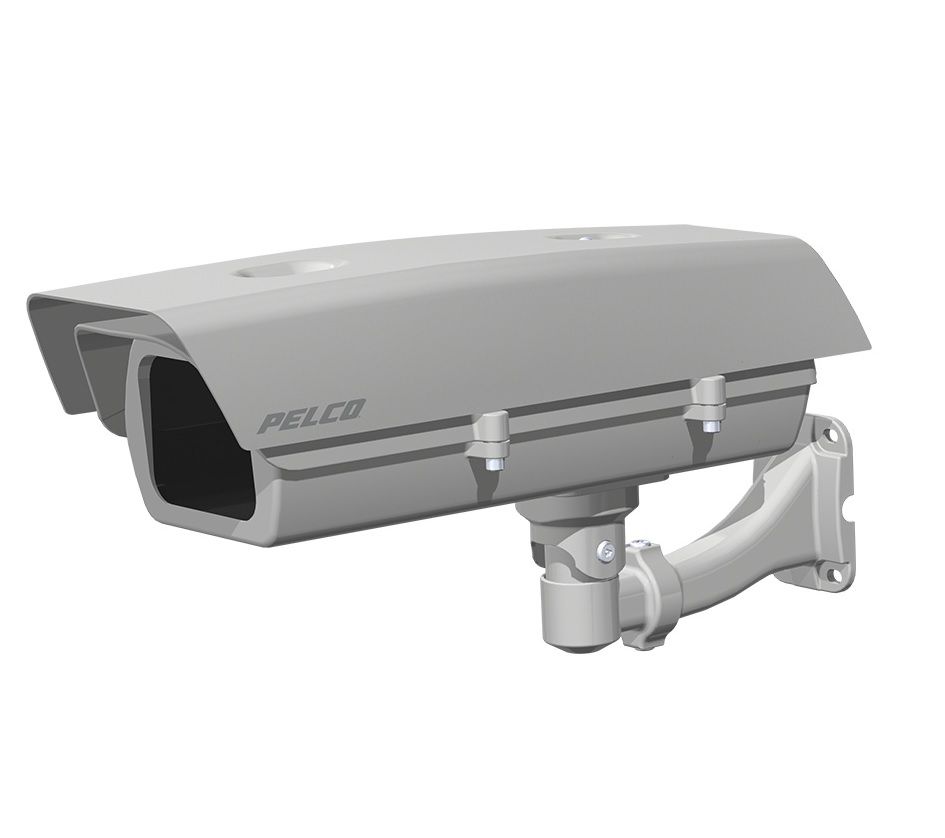

Pelco EH20 Compact Indoor/Environmental IP-Enabled without Heater & Blower
SKU
EH20
Pelco Model EH20
Pelco EH20 Compact Indoor/Environmental IP-Enabled without Heater & Blower
Free shipping over $450
Model No
EH20
$121.71
Product Highlights
- Side Opening for Easy Access for Servicing and Installation
- High Reliability Die-Cast Construction
- Advanced Optics for Megapixel Camera Support
- Temperature Range from - 30° to 50° C ( - 22° to 122° F)
- Meets IP66 and Type 4X Standards

Speak to an expert
Overview
The Pelco EH20 Compact Indoor/Environmental IP-Enabled camera enclosure is engineered for versatility and durability in protecting your camera systems. Its rugged die-cast aluminium construction meets IK10 and IP66 standards, ensuring reliable operation in harsh environments. With a temperature range of –30° to 50°C (–22° to 122°F), this enclosure supports both analog and IP cameras with fixed or variable lenses, making it an ideal choice for varied surveillance applications.
Pelco EH20 Camera Features
- Side Opening: Provides easy access for servicing and installation, reducing downtime.
- High Reliability: Die-cast construction ensures durability and long-lasting performance even in tough conditions.
- Advanced Optics: Supports megapixel cameras, enhancing image quality and detail.
- Temperature Range: Operates efficiently in a broad temperature range from –30° to 50°C (–22° to 122°F), suitable for various climates.
- IP66 and Type 4X Standards: Offers complete protection against dust and water, ensuring reliability in diverse environments.
- IK10 Mechanical Impact Resistance: Vandal-resistant design protects equipment from impact and tampering.
- Cable Entry Glands: Features adjustable glands on the bottom for easy installation of power and video cables, enhancing convenience.
Pelco EH20 Detailed Specifications
| Feature | Details |
|---|---|
| Construction Material | Die-cast aluminium |
| Temperature Operating Range | –30° to 50°C (–22° to 122°F) |
| Ingress Protection Rating | IP66 |
| Impact Resistance Rating | IK10 |
| Camera Compatibility | Analog and IP cameras with fixed or variable focal length lenses |
| Installation Features | Side-hinged lid, adjustable glands for cable entry |
