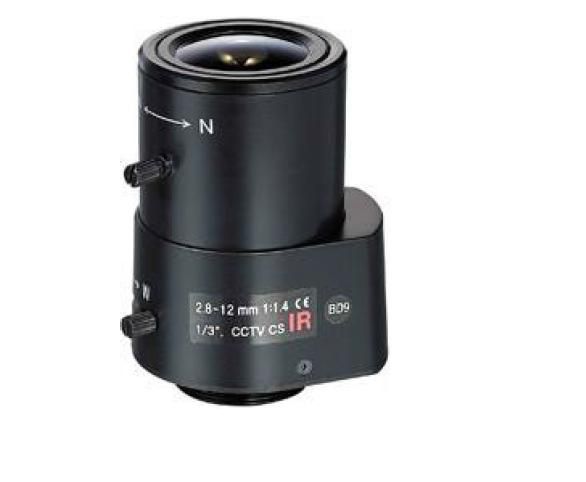

ATV DW28120D CS Mount, Auto Iris, 2.8-12mm Lens
SKU
DW28120D
Model No
DW28120D
$72.80
Product Highlights
- 1/3" CS Mount type
- 2.8~12mm / F1.4 Fari Focal
- Auto Iris
- 92° ~24° view angle
- ⌀37*43.8*75 mm, 133g
Speak to an expert
The DW28120D from ATV is a CS mount, auto iris, 2.8-12mm lens designed to deliver exceptional performance for various surveillance and monitoring applications. With its versatile focal length and wide view angle, this lens ensures high-quality imaging while providing user-friendly features that enhance usability and adaptability.
ATV DW28120D Lens Features
- 1/3" CS Mount type: Compatible with many cameras for seamless integration.
- 2.8~12mm / F1.4 Fari Focal: Offers customizable focal lengths for versatile close-up and wide-angle shots.
- Auto Iris: Automatically adjusts the lens aperture for optimal light exposure in varying conditions.
- 92°~24° view angle: Provides a broad field of view suitable for different monitoring scenarios.
- Compact dimensions: Ø37*43.8*75 mm and lightweight at 133g for easy installation.
- DC Drive: Ensures reliable power operation for consistent performance.
Detailed Specifications for ATV DW28120D
| Type | CS Mount |
| Focal Length | 2.8~12mm |
| Aperture | F1.4 |
| View Angle | 92°~24° |
| Dimensions | Ø37*43.8*75 mm |
| Weight | 133g |
| Drive Type | DC Drive |
SKU  | DW28120D |
|---|---|
| Manufacturer | ATV |
Lens Size  | 2.8-12 mm |
| Mount Type | CS Mount |
| Iris Type | Auto Iris |
| Desired Aperture | F/1.4 |
| Focus Control | Manual |
| Min Focal Length | 2.8mm |
| Max Focal Length | 12mm |
| CCD Size | 1/3" |
