Dotworkz D2-HB-POE-HP D2 Heater Blower Camera Enclosure IP68 with High Power PoE

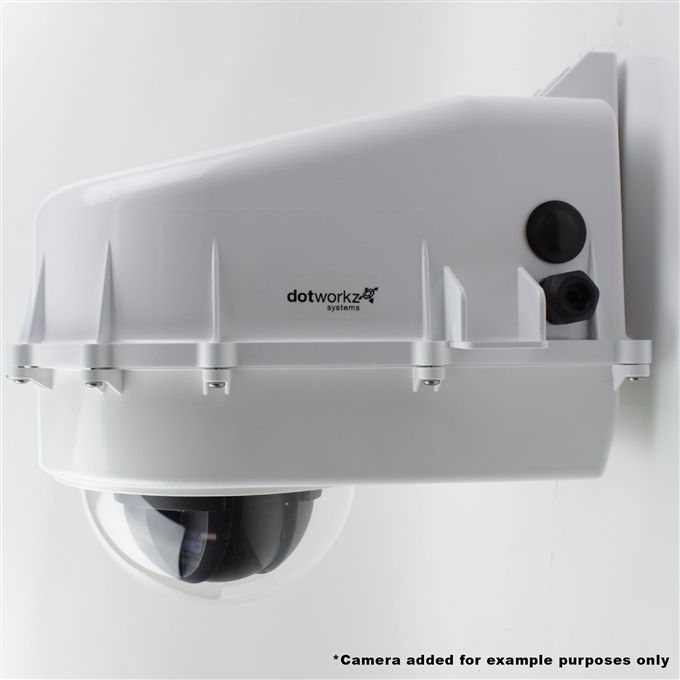

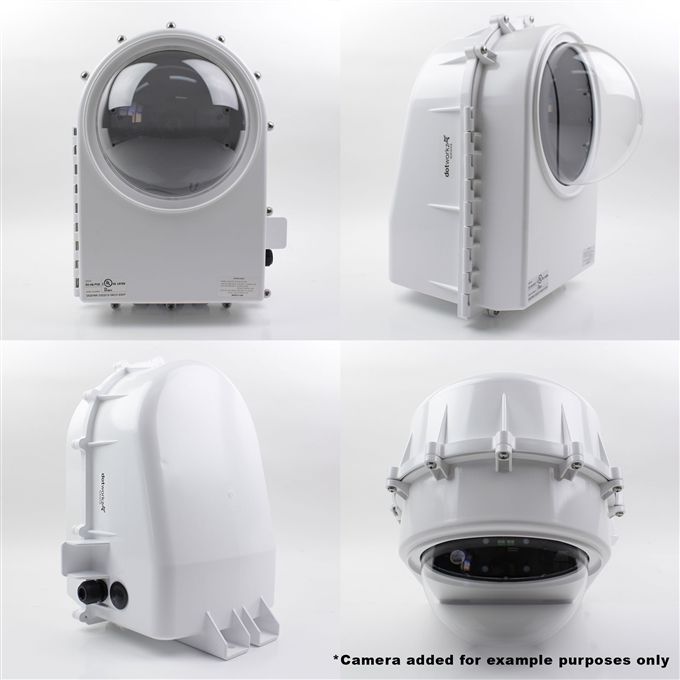

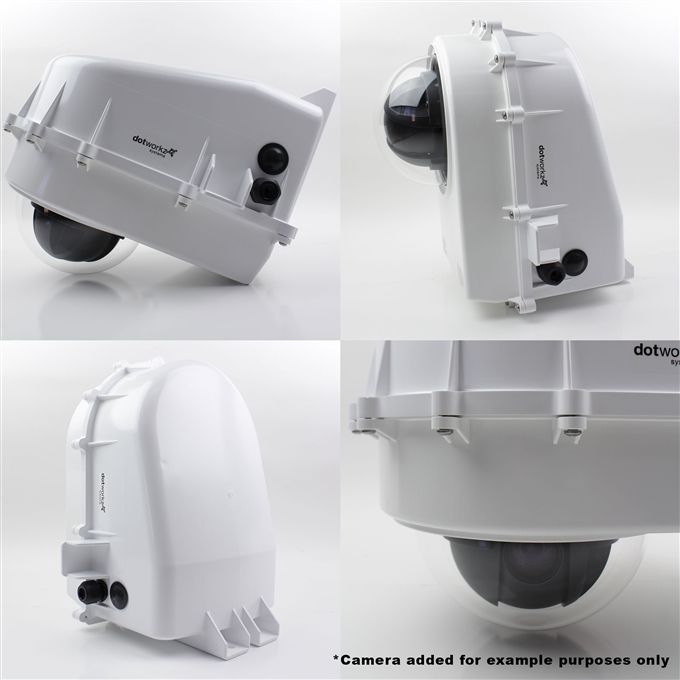

The Dotworkz D2-HB-POE-HP is an engineered outdoor housing system that is designed to allow most indoor PTZ & mini-dome camera models to allow for quick installation via Ultra High Powered PoE++ (80W) housing solution into a complete rugged outdoor system solution. Up to 80W or equivalent VA of Internal power available to create a plug and play POD solution to power camera and accessories in a all in one housing, when used with a compatible 100 Watt PoE Inserter Midspan. Virtually Indestructible housing solution for the a wide array of harsh environments. IP68 NEMA 4X ingress protection of housing, provides the highest levels of protection from water, dust, marine, and vandal abuse.

Dotworkz D2-HB-POE-HP Camera Features

• Designed for Simplified Powering: Power housing via one Ethernet cable for Power and Data using Ultra High Power PoE (100W injector maximizes load).
• Robust Internal Power Options: 12V DC @ 25W or 24V AC up to 60VA+ available for powering cameras and accessories (80W system rated including Heater).

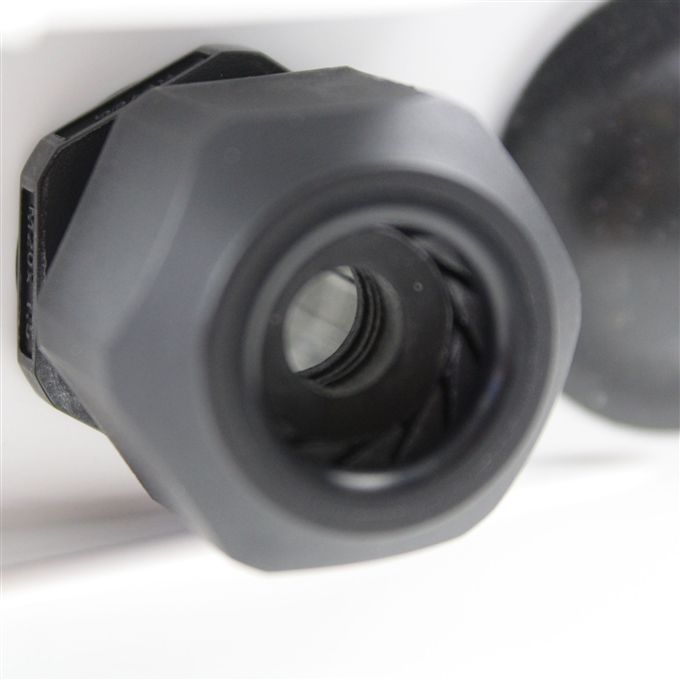

• Quick Connect Installation: External RJ-45 Quick Connect (IP67 connector) allows for fast setup.
• Integrated Lens Heater: Thermostatically controlled direct Lens Heater for dome bubble maintains optimal camera performance.
• Built-in Blower Fan: Integrated 10 CFM blower fan ensures cooling and prevents overheating of equipment.
• Powers Most PTZ Cameras: Ample 12 VDC or 24 VAC power available for most PTZs and accessories, creating an Ethernet PoE++ powered POD.
• Vandal Tough Protection: Durable housing designed to withstand harsh environmental conditions and physical abuse.
• Integrated Quick Connect: External IP rated Ethernet Quick Connect for seamless camera setup.

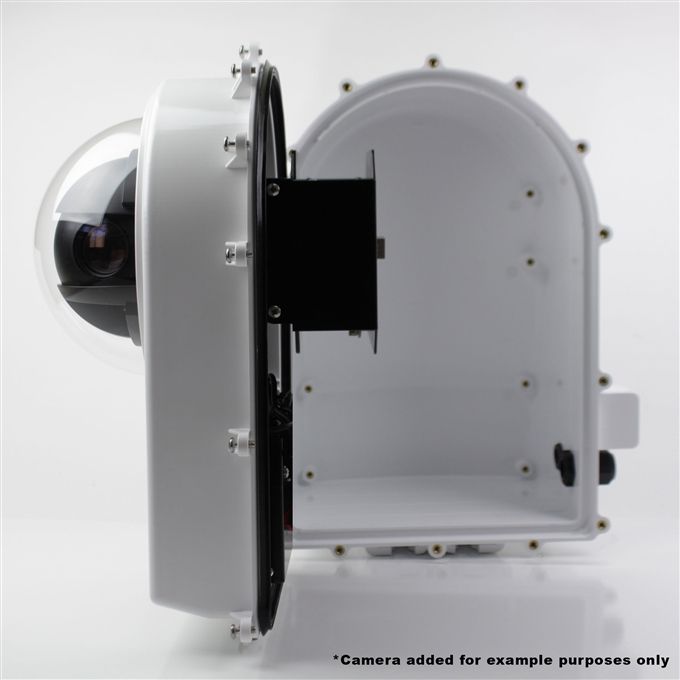

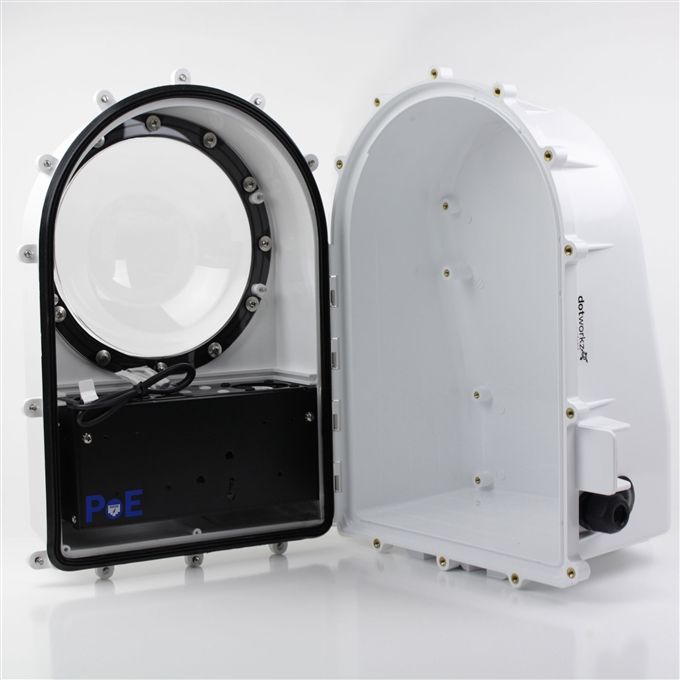

• Easy Access for Installation: Simplifies customer supplied camera installation with accessible design.

Dotworkz D2-HB-POE-HP Detailed Specifications
