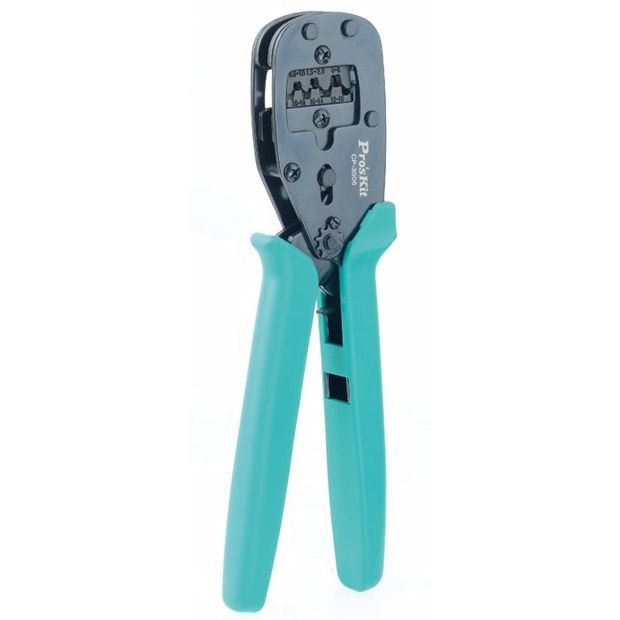

Eclipse Tools CP-3006FD2 Parallel Action Crimper for Open Barrel Terminals AWG 20-10
SKU
CP-3006FD2
Model No
CP-3006FD2
$54.58
Product Highlights
- Application: Open barrel contacts, D-sub, Molex, AMP Style Pin
- Crimp Size: AWG 20-18/ 16-14/ 12-10, DIN 0.5-1.0/ 1.5-2.5/ 4.0-6.0mm²
Speak to an expert
The CP-3006FD2 from Eclipse Tools is a Parallel Action Crimper designed for reliable crimping of open barrel terminals ranging from AWG 20 to 10. This tool combines precise engineering with user-friendly operation, ensuring strong and consistent connections for various electrical applications.
Eclipse Tools CP-3006FD2 Crimper Features
- Application: Compatible with open barrel contacts including D-sub, Molex, and AMP Style Pins, making it versatile for multiple connection types.
- Crimp Size: Accommodates a wide range of wire sizes from AWG 20-18, 16-14, to 12-10 as well as DIN 0.5-1.0, 1.5-2.5, and 4.0-6.0mm², ensuring adaptability for different projects.
Detailed Specifications for Eclipse Tools CP-3006FD2
| Feature | Details |
| Model | CP-3006FD2 |
| Type | Parallel Action Crimper |
| Wire Gauge Range | AWG 20-10 |
| Application | Open Barrel Terminals, D-sub, Molex, AMP Style |
| Crimp Size Compatibility | AWG 20-18/ 16-14/ 12-10, DIN 0.5-1.0/ 1.5-2.5/ 4.0-6.0mm² |
SKU  | CP-3006FD2 |
|---|---|
| Manufacturer | Eclipse Tools |
