Bosch B465-SWC-1640 Universal Dual Path Communicator Kit

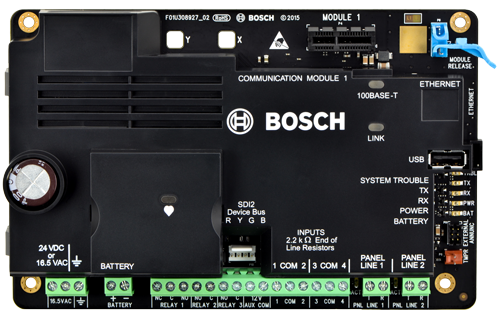

The B465 simulates dial tone and line voltages when the digital dialer has a report to send. The module simulates a PSTN connection to the central station. The module decodes the control panel’s PSTN dialer report and sends the decoded reports by IP connection using Bosch’s Conettix Protocol to the Conettix D6600, D6100IPv6, or D6100i Communication Gateway/Receiver (referred to as the receiver). When the receiver acknowledges receipt of the message, it sends an acknowledgement report to the module which in turn sends an acknowledgement to the connected control panel. This process maintains true end-to-end security. The B465 Conettix Universal Dual Path Communicator converts the Public Switch Telephone Network (PSTN) digital dialer, or dry contact outputs from an intrusion/ fire control panel to an IP signal for transmission over the Ethernet or cellular network. The B465 Conettix Universal Dual Path Communicator is UL 864 10th Edition approved per NFPA 72 version 2013. The module can use its built-in Ethernet connection, and/or an optional Conettix plug-in cellular module (B440/B441/B442/B443) to send reports to the central station receiver. Automation programming for the supported control panel remains unchanged with the installation of the B465 module, thus simplifying the installation process This allows for a smooth transition from the PSTN realm into IP. All messages generated internally by the B465 are shown in Contact ID format at the central station. The module can be powered from a 16.5 VAC transformer or 24 VDC power supply.

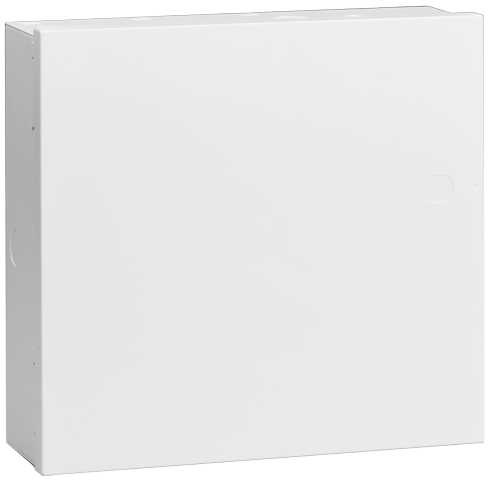

The B11 Small Control Panel Enclosure houses many Bosch control panels and modules. The enclosures are compatible with an enclosure tamper switch (D110 or ICP-EZTS), lock and key set (D101), and can hold one battery (up to 7 Ah).

The D101 from Bosch is a lock and key set.

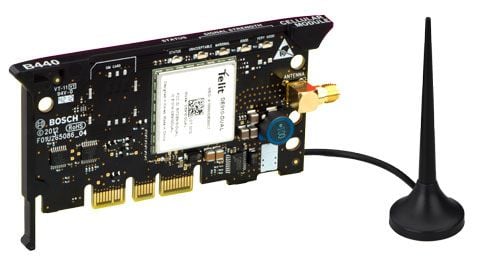

The B440 enables 3G EVDO and CDMAsecure two way IP communication over the Verizon cellular networks. The B440 is built for a wide variety of secure commercial and industrial applications. Flexible endto-end path supervision, 128-bit to 256-bit AES encryption and anti-substitution features make B440 desirable for high security and fire monitoring applications. Developed for the military, CDMA technology offers long service life with resistance to hacking and jamming. The B440's dual technology radio will use high speed 3G EVDO when available or switch to CDMA if required.

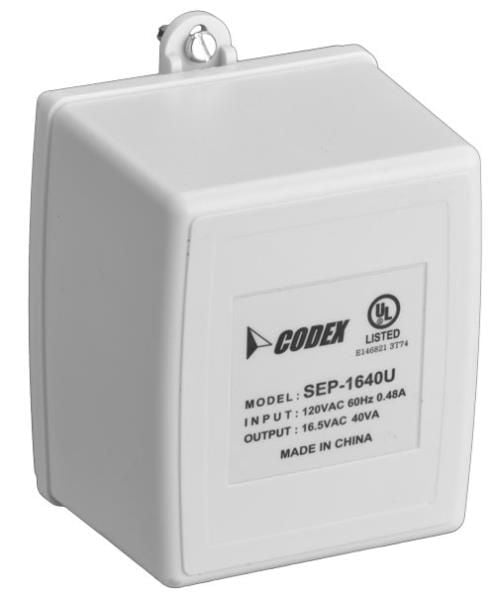

The D1640 from Bosch is a transformer.

B465-SWC-1640 Features

• Compatible with any control panel using Contact ID, SIA, Pulse 3/1 or Pulse 4/2 communication formats (auto detecting)
• No control panel reprogramming required to install
• Supports Ethernet directly and optional plug-in cellular communication technologies in single, or multi-path
• configurations
• Supports four configurable inputs and three configurable outputs
• Approved for Commercial Fire/Burglary applications as sole, primary, or secondary communication path

B11 Features

• Easy to install standoff location for mounting supporting modules
• Made with cold-rolled steel with a white matte finish
• Easy access locations for battery placement
• Optional taper switch mounting location

D101 Features

• Lock and Key Set

B440 Features

• Secure Conettix IP communication from compatible Bosch panels to Bosch receivers using Verizon 3G EVDO/CDMA
• Remote programming and monitoring of compatible Bosch panels
• Personal SMS message and e-mail notification options
• Configured directly from Bosch Remote Programming Software (RPS) eliminating the need for separate configuration
• Simple LED status information and advanced keypad diagnostics available

D1640 Features

• Transformer
