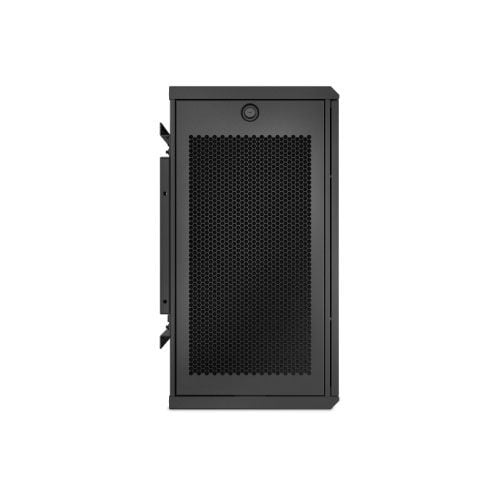

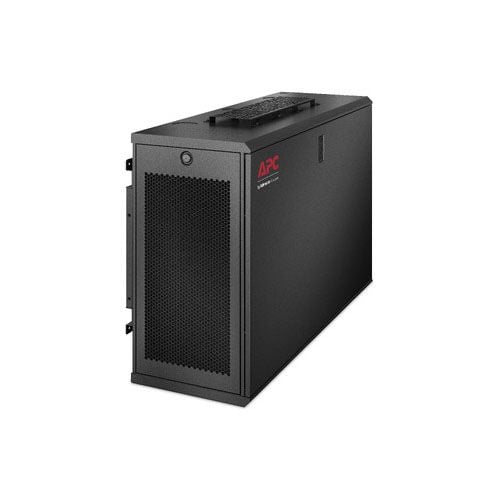

APC by Schneider Electric 6U Wall-Mount is an innovative new way to deploy server and networking equipment at the edge. Ideal for retail, healthcare, educational facilities and light industrial spaces, the low-profile design offers an efficient solution for deploying hyperconverged server and networking applications. The rack enclosure allows longer depth equipment to be wall mounted, up to 30 inches deep. A detachable wall bracket and optional casters (sold separately) allow the server rack to be mounted on either the wall or stand alone on the floor. A dust filter and two integrated fans allow deployment in light-industrial environments. APC Smart-UPS, APC NetBotz Physical and Environmental Security, and APC EcoStruxure IT can be configured with this cabinet (sold separately). 6U vertical wall-mount cabinet, 30 in mounting depth, 250 lb weight capacity, 19" rack width, side panels for access to equipment, ships fully assembled, UL2416 Listed, MERV 5 dust filter and 120V integrated fans included. Input connector IEC 60320 C13 with 500VA - 1.5kVA output power capacity.
APC AR106V - Features
Efficient and secure edge computing solution: Ideal for spaces where floor real estate is limited, presenting versatility for installation.
Wallmount Rack Enclosure: Saves space while keeping all your networking equipment organized and accessible.
6U and 30in mounting depth: Accommodates a wide variety of equipment, with a maximum load capacity of 250 lb.
Wallmount or standalone options: Offers flexibility in installation, with optional casters available for easy movement.
Vertical device mounting: Optimizes space usage while ensuring easy access for maintenance.
