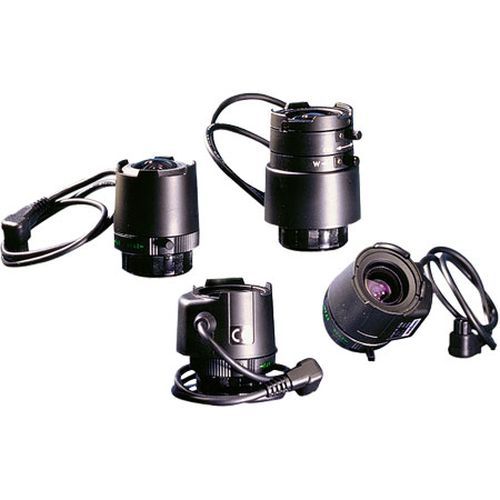

The ADCLVF1836DC from American Dynamics is a DC Auto Iris Lens having a focal length between 1.8 to 3.6 mm with a 1/3" lens format delivers consistent video signals from a camera, under varied light conditions. The iris lens provides high-contrast, color-corrected optics for clear and true images. The lens is also capable of fast signal response and low geometric distortion. The Auto Iris Lens automatically adjusts the lens depending upon the intensity of the voltage and video signals from the camera. The CS mount auto iris lens has an F1.6 aperture. The lens features a slip clutch which enables you to adjust the position of the lens after being mounted. The lens offers a horizontal viewing angle from 144.2 to 79.4° whereas the vertical viewing angle is from 109.4 to 59.6°.
American Dynamics ADCLVF1836DC Lens Features
DC Type Lens: Produces consistent video signals from cameras capturing scenes with varying light levels for reliable performance.
Fast Signal Response Capability: Ensures quick adjustments to changing light conditions, providing smooth video output.
Low Geometric Distortion: Maintains image clarity and accuracy, enhancing the overall viewing experience.
Color-Corrected Optics: Delivers clear and true images, ensuring the quality of video surveillance captures.
Iris Aperture F1.6: Allows for better light intake, improving performance in low-light environments.
Slip Clutch on Lens Mount: Facilitates easy positioning of the lens post-installation, allowing for flexible setup.
Horizontal Viewing Angle: Ranges from 144.2 to 79.4°, providing versatile coverage options for various settings.
Vertical Viewing Angle: Ranges from 109.4 to 59.6°, ensuring a wide field of view for comprehensive monitoring.
Detailed Specifications for American Dynamics ADCLVF1836DC
