Crimson A47V Articulating Mount for 13" to 55" Flat Panel Screens
SKU
A47V
Model No
A47V
$165.44
Product Highlights

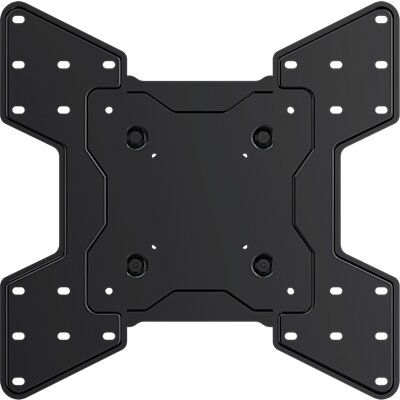

- VESA compatible 100x100mm, 200x100mm, 200x200mm, 300x200mm, 300x300mm, 400x300mm, 400x400mm
- Multiple attachment points for different mounting surfaces offers additional safety
- Smooth variable tilt from 15° forward to 5° back
- Integrated cable management for clean look
- UL Approved
Speak to an expert

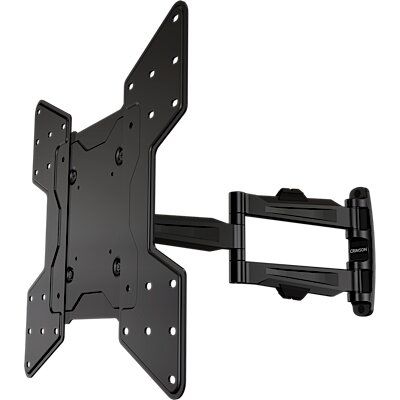

The A47V from Crimson is an Articulating Mount for 13" to 55" Flat Panel Screens. Multiple joint arms hold the screen 2.7" from the wall when retracted and 21" when fully extended. Smooth tilt adjustments of +15° (forward) and -5° (back) with a locking knob and 3° side-to-side roll facilitate a variety of viewing angles and perfect screen positioning. Three attachment points for wood studs and four attachment points for concrete walls provide additional security. Integrated cable management ensures a clean look.
Crimson A47V Articulating Mount Features
- VESA compatibility: Supports a wide range of VESA patterns (100x100mm to 400x400mm) ensuring versatility with most flat panel screens.
- Multiple attachment points: Offers flexibility for different mounting surfaces, enhancing stability and security for your screen.
- Smooth tilt adjustment: Allows for optimal viewing angles with a variable tilt ranging from +15° to -5°, adapting to your needs.
- Integrated cable management: Keeps your setup tidy by concealing cables, improving aesthetics and reducing clutter.
- UL Approved: Certifies safety and reliability, providing peace of mind in your mount’s use and performance.
Crimson A47V Articulating Mount Detailed Specifications
| Screen Size Compatibility | 13" to 55" |
| Distance from Wall (Retracted) | 2.7" |
| Distance from Wall (Extended) | 21" |
| Tilt Adjustment | +15° (forward), -5° (back) |
| Side-to-Side Roll | 3° |
| Attachment Points for Wood Studs | 3 |
| Attachment Points for Concrete Walls | 4 |
| VESA Standard Compatibility | 100x100mm, 200x100mm, 200x200mm, 300x200mm, 300x300mm, 400x300mm, 400x400mm |
| Approval | UL Approved |
SKU  | A47V |
|---|---|
| Manufacturer | Crimson |
| Monitor Type | Flat Panel Monitors |
| VESA Size | VESA 100 x 100, VESA 200 x 100, VESA 200 x 200, VESA 300 x 200, VESA 300 x 300, VESA 400 x 300, VESA 400 x 400 |
