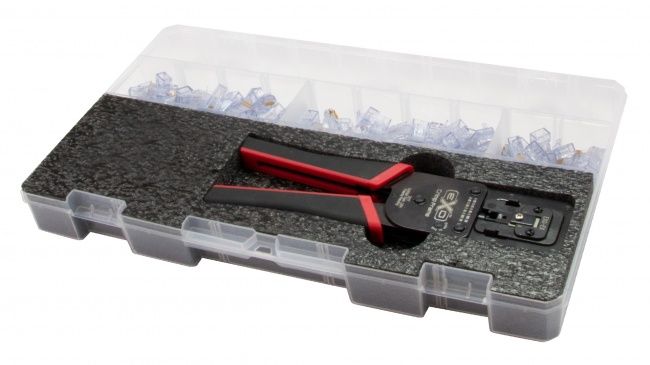

Platinum Tools 90187 ezEX-RJ45 Termination Kit

The Platinum Tools 90187 ezEX-RJ45 Termination Kit is designed for technicians needing a reliable solution for terminating Cat5e/6/6A cabling. This comprehensive kit includes all three ezEX-RJ45 connectors, ensuring optimal performance for PoE/PoE+ and data applications. With an organized design and compatibility with various tools, it simplifies the termination process and enhances efficiency.

Features

Platinum Tools 90187 ezEX-RJ45 Connectors

• Hi-Lo stagger: Isolates each conductor for reduced crosstalk and improved signal integrity.
• Simple one piece design: Allows for easy pass-through of wires, eliminating the need for bars or liners.
• 50 micron gold plated contacts: Ensures excellent conductivity and durability for reliable connections.
• Insulation diameter range: Full range of 0.033" – 0.048" (0.84 – 1.22mm) accommodates various cable types.
• Max. outer diameter: Supports cables with a maximum outer diameter of 0.290" (7.36mm).
• Compatible with solid or stranded 24 – 22 AWG: Versatile connectivity options for different installations.
• Certifications: RoHS3, UL, TIA, TAA & FCC compliant, ensuring safety and reliability.

Platinum Tools 90187 EXO Crimp Frame with EXO-EX Die

• Tool lock mechanism: Connectors lock into the tool for precise positioning during crimping.
• Push button lock: Facilitates easy and secure storage of the tool.
• Ergonomic handles: TPR handles provide a comfortable grip, reducing hand fatigue during use.
• Interchangeable dies: Allows for flexibility with various crimping requirements, enhancing the kit's longevity.

Platinum Tools 90187 Detailed Specifications
