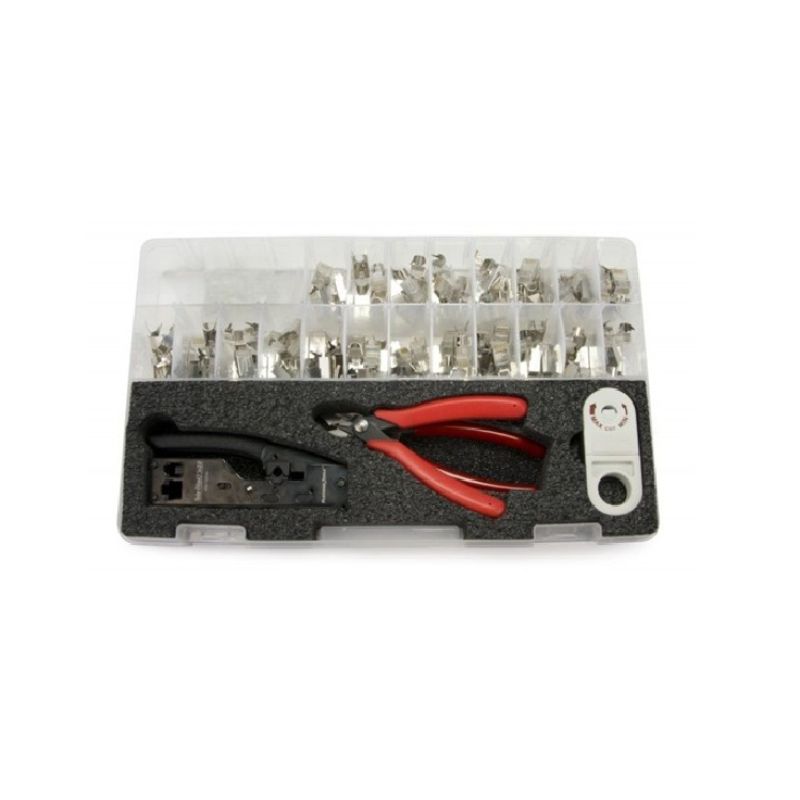

Platinum Tools 90180 Cat6A/7 28 - 26 AWG Termination Kit

The 90180 from Platinum Tools is a Cat6A/7 28 - 26 AWG termination kit. The perfect system for providing Cat6A/7 terminations for audio, data, and video applications. Included in the kit is the RJ45 Cat6A/7 Shielded Connector with a three-piece bar & liner design that provides true Cat6A/7 performance with every crimp. These connectors are made to fit the Tele-TitanXg™ 2.0 which combines two crimpers into a single tool, making connector and external ground crimping easy.

Features

• For solid or stranded wire: Provides maximum versatility in different installation environments.
• 50µ 3-prong contacts: Ensures reliable, high-quality connections suitable for high-speed data transmission.
• 3 piece with liner and spacer bar: Enhances performance and reliability during the crimping process.
• External ground design: Facilitates easy grounding for shielded applications, reducing interference.
• Works with Cat7, Cat6A, Cat6E, and Cat6: Versatile compatibility ensures use with various cable categories for optimized performance.
• RoHS compliant and UL listed: Adheres to industry standards for safety and environmental protection.
• Cable Parameters:
  - Wire gauge range: 28 – 26 AWG
  - Cable jacket OD range: 0.244” - 0.335” (5.7-8.5mm)
  - Insulation diameter range: 0.037” - 0.041” (0.94-1.05mm)

Platinum Tools 90180 Cat6A/7 Termination Kit Detailed Specifications
