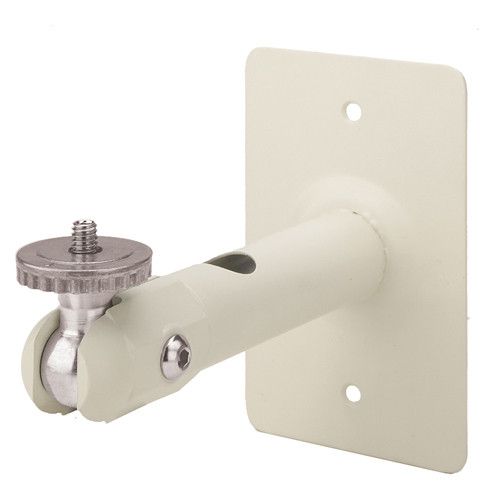

Panavise 899-06W Pass Thru J-Box Standard Mount (Cream)
SKU
899-06w
Model No
899-06W
$30.99
Product Highlights
- Hollow aluminum shaft [1.0" (25.4mm) outside diameter; 0.875" (22.2mm) inside diameter] with slot for cable pass thru
- Round pass thru hole is 0.625" (15.9mm) in diameter
- 1/4-20 mounting stud with lockring
- Fully adjustable at the camera (210 degree Tilt, 360 degree Turn & 360 degree Rotation)
- Integral J-Box mounting plate

Speak to an expert
The 899-06W from PANAVISE is a Pass-Through J-Box Standard Mount (Cream) that includes an optional & adjustable Knob and tamper-resistant set-screw. The 899-06W includes an integral J-Box mounting plate. It also has a hollow aluminum shaft with a slot for cable pass through.
PANAVISE 899-06W Features
- Hollow aluminum shaft: The 1.0" outer diameter and 0.875" inner diameter design provides durability while allowing cables to pass through easily.
- Round pass thru hole: With a diameter of 0.625", it ensures efficient cable management for a clean installation.
- 1/4-20 mounting stud: The lockring design guarantees a secure fit, maintaining stability for your mounted equipment.
- Fully adjustable at the camera: Offers 210 degrees of tilt, 360 degrees of turn, and 360 degrees of rotation for optimal positioning of your camera.
- Integral J-Box mounting plate: Simplifies installation and ensures a strong, reliable setup.
- Knob and tamper-resistant set-screw adjusting options: Provides versatility and security in adjusting the mount's position.
- 6" overall length: The compact design (from base to top of lockring) allows for flexible installation in various environments.
- Limited Lifetime Warranty: Assurance of quality and reliability for long-term usage.
PANAVISE 899-06W Detailed Specifications
| Hollow Aluminum Shaft | 1.0" outside diameter; 0.875" inside diameter |
| Pass Thru Hole Diameter | 0.625" (15.9mm) |
| Mounting Stud | 1/4-20 with lockring |
| Camera Adjustability | 210 degrees tilt, 360-degree turn & 360-degree rotation |
| Overall Length | 6" (152.4mm) |
| Warranty | Limited Lifetime Warranty |
