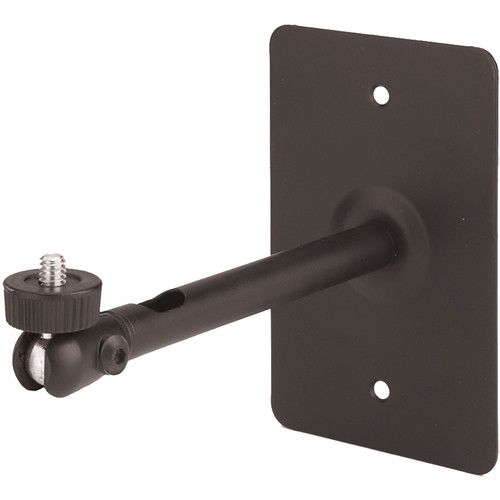

Panavise 898-06 Pass Thru J-Box Micro Mount (Black)

The 898-06 from PANAVISE is a versatile Pass-Through J-Box Micro Mount (Black) designed for seamless integration and a secure camera setup. It features an adjustable knob and tamper-resistant set-screw for enhanced security and flexibility. With its integral J-Box mounting plate and hollow aluminum shaft, this mount allows for efficient cable management without sacrificing durability or performance.

PANAVISE 898-06 Camera Features

• Hollow aluminum shaft: Designed with a 0.5" (12.6mm) outside diameter and 0.375" (9.5mm) inside diameter, allowing for easy cable pass-through and maintaining a clean setup.
• Pass thru slot dimensions: Features a slot measuring 0.375" x 0.625" (9.5mm x 15.9mm) for optimal cable management and accessibility.
• Mounting stud: Equipped with a 1/4-20 mounting stud and lockring, ensuring a secure fit for your camera.
• Adjustability: Offers 190 degrees tilt, 360-degree turn, and 360-degree rotation for customizable camera positioning.
• Integral J-Box mounting plate: Provides a solid foundation for secure mounting and easy installation.
• Security options: Includes an adjustable knob and tamper-resistant set-screw for added security and stability.
• Overall length: Measures 6" (152.4mm) from the base to the top of the lockring, making it compact yet functional.
