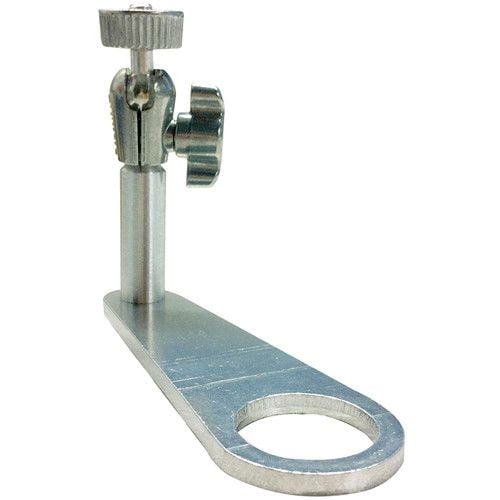

Panavise 847-3-4 Micro Mount for 3/4-inch Conduit (Silver only)

The 847-3-4 from PANAVISE is a Micro Mount for 3/4-inch Conduit (Silver Only) designed to support smaller CCTV cameras with a weight capacity of up to 3 lbs. It features a robust and adjustable design for versatile installation options, including dual adjusting methods with a knob and set-screw, ensuring stability and precision during use.

PANAVISE 847-3-4 Micro Mount Features

• Weight Capacity: Supports cameras weighing up to 3 lbs. (1.4kg), allowing for secure mounting of various small CCTV camera models.
• Compatibility: Designed for 3/4" (19.1mm) conduit or NPT pipe installations, making it ideal for a range of setups.
• Flange Dimensions: Length from the center of the flange to the center of the shaft is 3.5" (88.9mm), optimal for various camera placements.
• Overall Length: Compact design with an overall mount length of 3.125" (79.4mm) allows for discreet installations.
• Adjustability: Features a 210° tilt, 360° turn, and 360° rotation, enabling versatile positioning for optimal camera angles.
• Mounting Stud: Equipped with a 1/4-20 mounting stud that comes with locking capabilities, ensuring a secure fit.
• Adjusting Options: Includes both knob and set-screw options for user-friendly adjustments to cater to different preferences.
• Included Hardware: Comes with two steel conduit locknuts, providing all necessary mounting hardware for installation.

PANAVISE 847-3-4 Micro Mount Specifications
