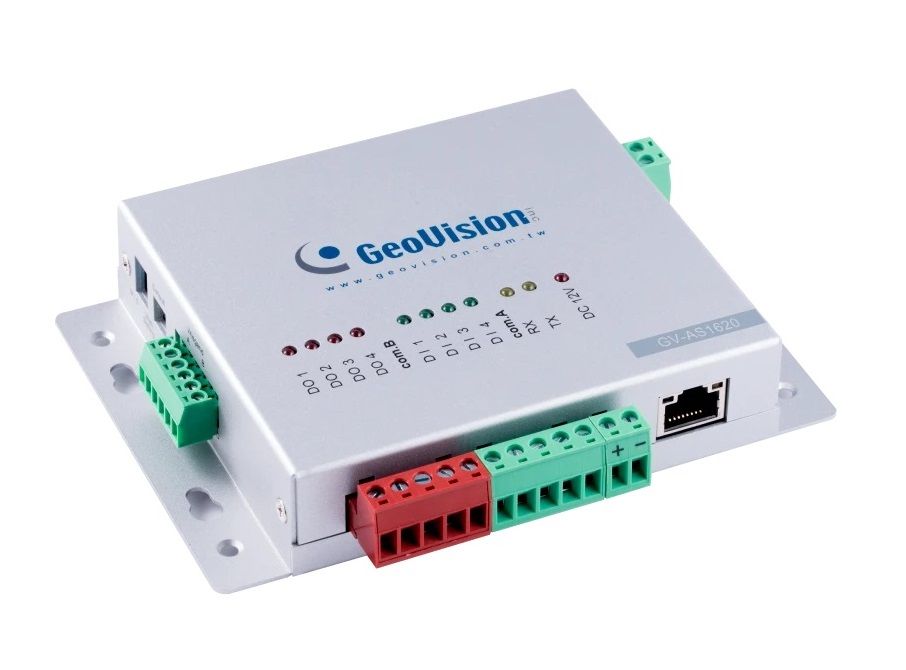

Geovision GV-AS1620 Single Door IP Controller

The 84-AS16200-0100 from Geovision is a single door controller with three types of interfaces, Wiegand, RS?485 and TCP/IP, to accommodate various readers for entry and exit management. Through its I/O pins, it provides not only basic door operations but also alarm, tamper and fire senor applications, as well as allowing LEDs connected to indicate an access granted and denied.

Geovision 84-AS16200-0100 Key Features

• One door IP controller: Enables entry and exit management for secure buildings.
• 3 types of interfaces: Wiegand, RS?485, and TCP/IP support 2 readers for each interface, ensuring compatibility with various access control devices.
• 4 digital inputs: For door contact, exit button, fire contact, and tamper contact to enhance security and emergency response.
• 4 relay outputs: Controls lock, alarm, and 2 LEDs for access granted and denied, allowing clear visual indicators.
• Power Options: Operates on DC 12V, 3A / PoE+ (IEEE 802.3at) for flexible installation.
• Diverse application: Ideal for door, parking lot, and elevator controls, providing versatility in access management.
• Large storage capacity: Stores up to 100,000 cards, making it suitable for extensive user bases.

Geovision 84-AS16200-0100 Detailed Specifications
