Intellinet 791267 Port Identifier Cat6 Toolless Keystone Jack with LED, Transparent, 25-Pack
- For easy, time-saving and tool-free deployment in blank patch panels, wall plates or surface connection boxes
- Cat6 RJ45 module with 10G / 1G and 250 MHz in accordance with ISO/IEC 11801
- LED indicator allows identification of the connected port when used with the Intellinet LED Port Identifier tool (SKU 780179 ICT-LED)
- 50 micro-inch gold-plated contacts
- Supports 23 to 26 AWG solid wire

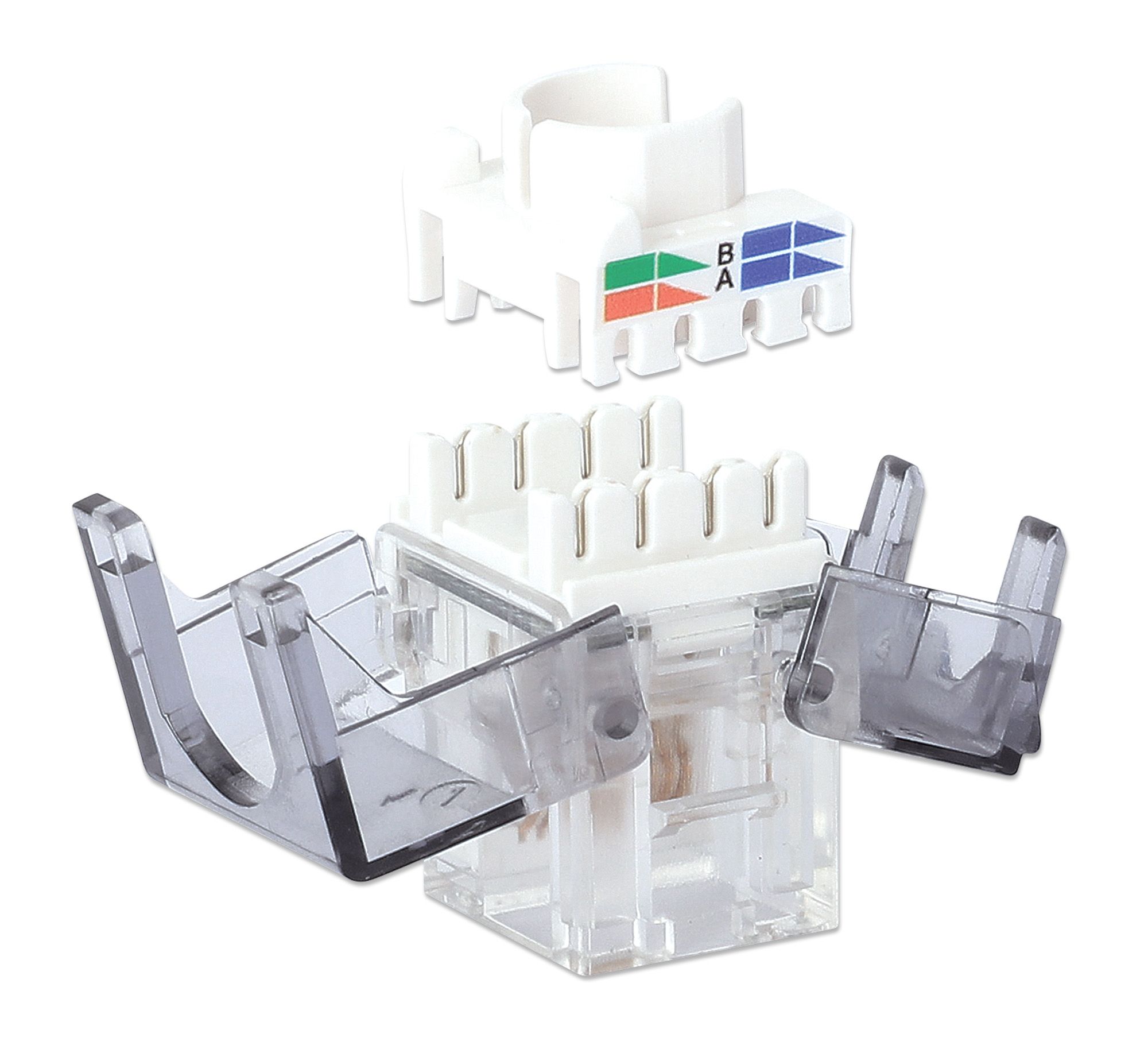

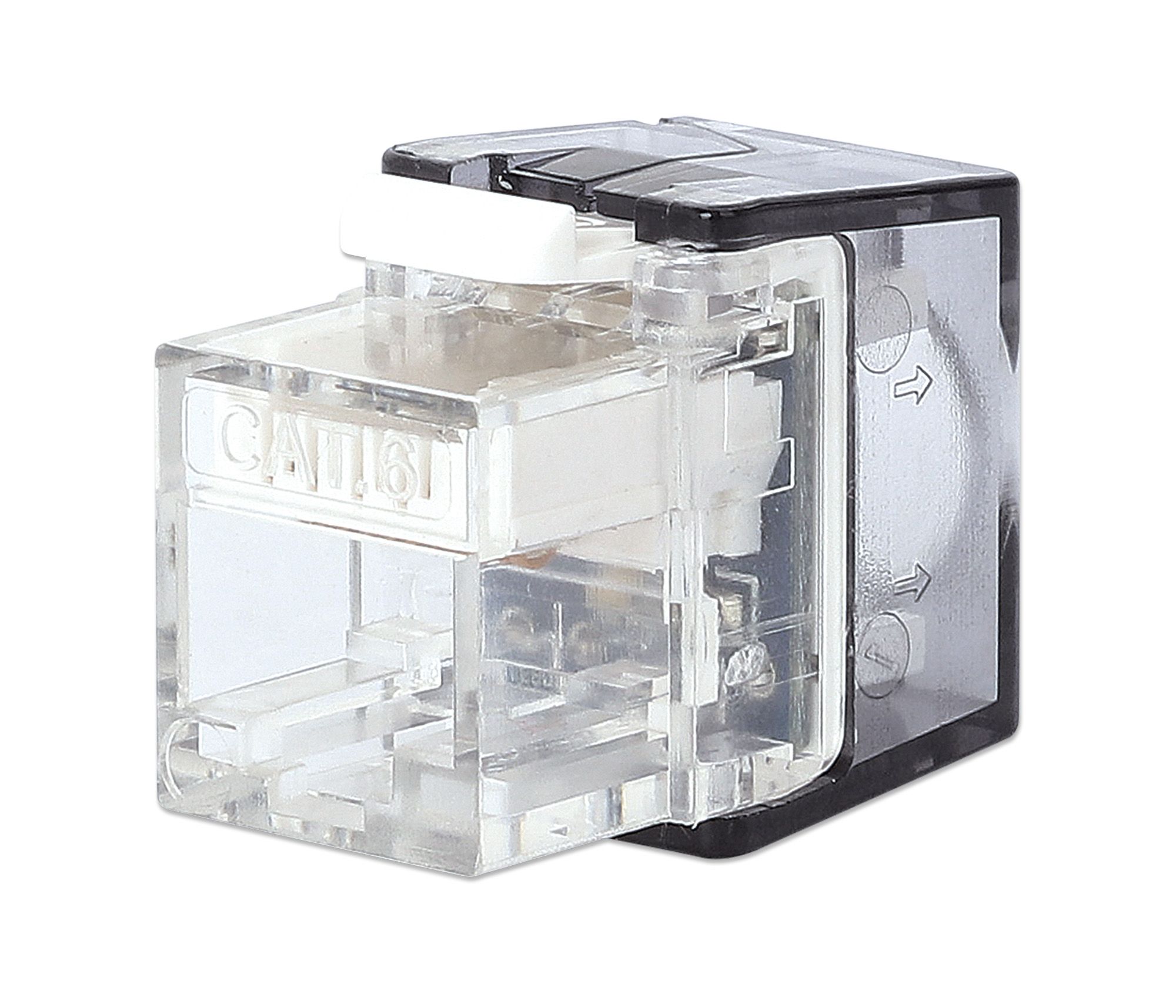

The Cat6 Toolless Keystone Jack with LED from Intellinet Network Solutions is designed for quick, seamless deployment. This module easily snaps into blank patch panels, wall plates or surface connection boxes without special tools. The built-in LED illuminates when connected to the Intellinet LED Port Identifier Tool allowing you to quickly identify the connected port. This keystone jack is suitable for solid conductor cables in high-performance network applications up to 1000BASE-T and PoE applications up to IEEE802.3bt / PoE++ / 4PPoE / Ultra PoE. It is equipped with gold-plated contacts for high signal integrity.

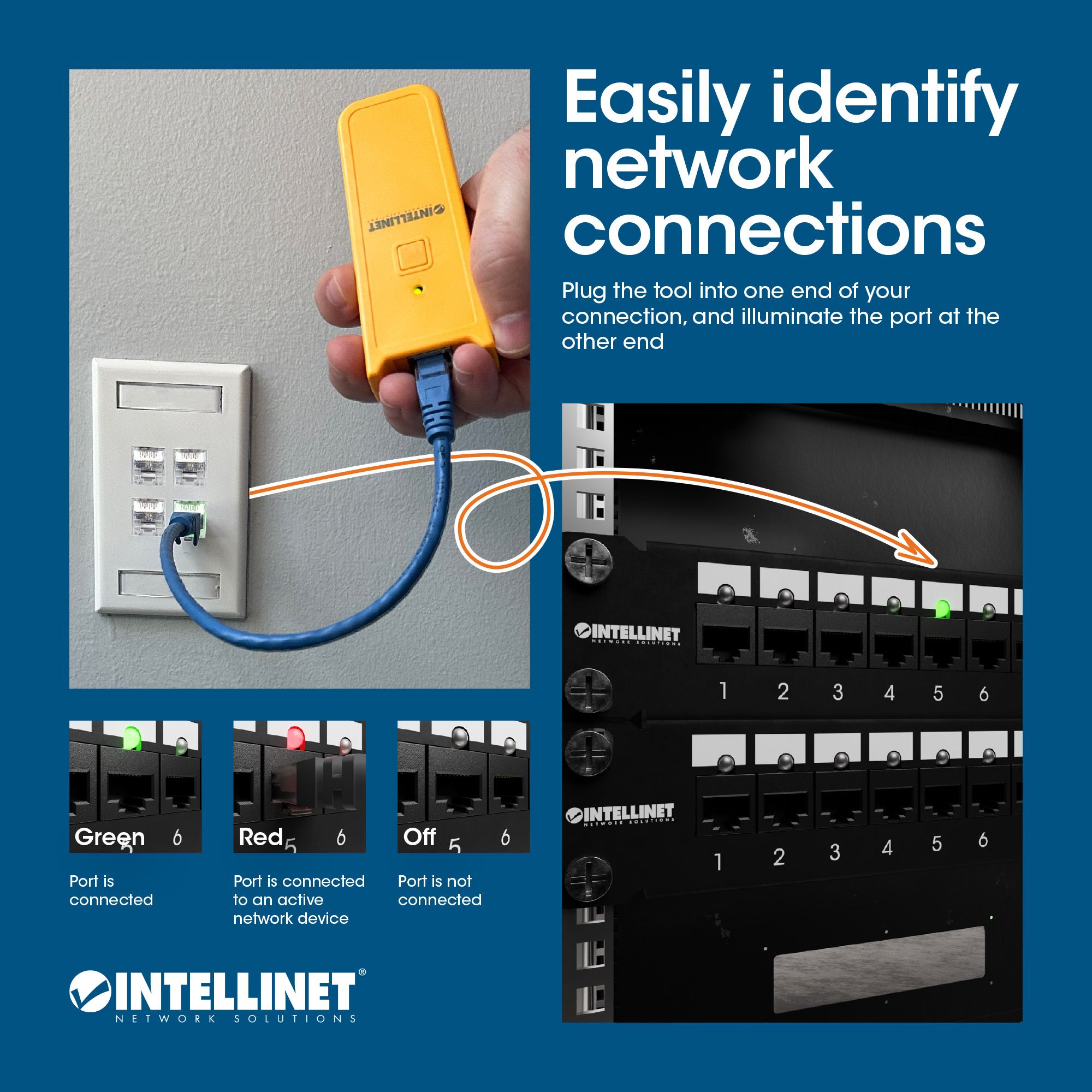

Intellinet Port Identifier System
Experience the comprehensive LED Port Identification System by Intellinet, meticulously designed to streamline your networking endeavors. This system comprises of an LED port identifier tool alongside two variants of LED-equipped keystone jacks (one tool-free variant and one punch-down variant) and a fully pre-loaded 24 Port Cat6 patch panel featuring intuitive LED indicators. Elevate your networking infrastructure with precision and efficiency.
Features
- Easy Deployment: For easy, time-saving and tool-free deployment in blank patch panels, wall plates or surface connection boxes.
- High Performance: Cat6 RJ45 module with 10G / 1G and 250 MHz in accordance with ISO/IEC 11801.

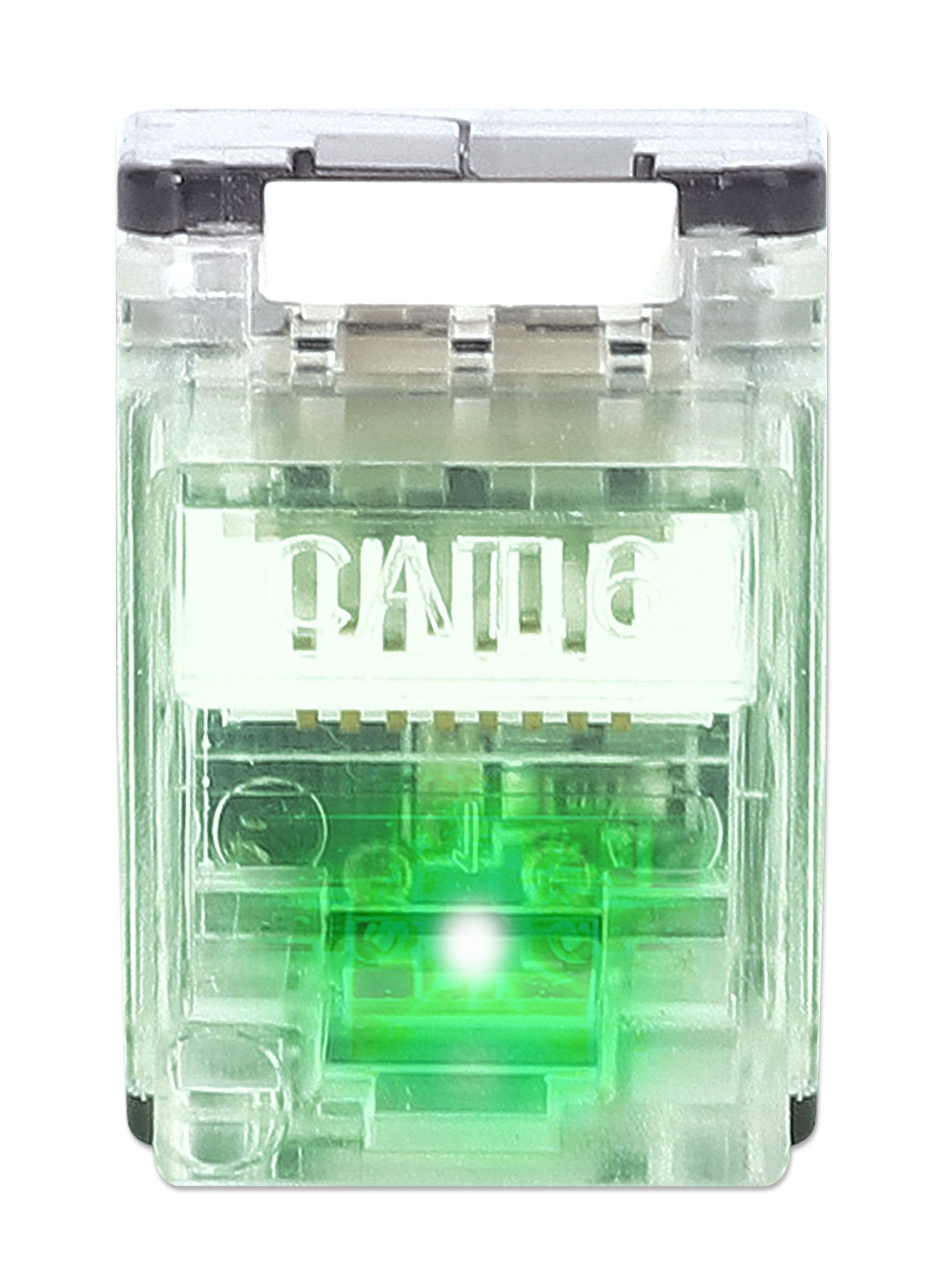

- LED Port Identification: LED indicator allows identification of the connected port when used with the Intellinet LED Port Identifier tool (SKU 780179 ICT-LED).
- Signal Integrity: 50 micro-inch gold-plated contacts ensure high signal integrity.
- Wire Compatibility: Supports 23 to 26 AWG solid wire.
- PoE Capability: Ideal for HDBaseT and PoE applications up to IEEE802.3bt / PoE++ / 4PPoE / Ultra PoE.
- Network Cable Compatibility: For use with unshielded twisted pair (UTP) Cat6 network cable.
- Standard Design: Standard 8P8C design, compatible with all network RJ45 connections.
- Wiring Compatibility: Compatible and color-coded with T568A and T568B standards.
- UL Listed: Ensures safety and quality compliance.
- Convenient Packaging: Jar packaging for convenient stock-keeping.
Intellinet Cat6 Keystone Jack Specifications
| Type | Cat6 Toolless Keystone Jack |
| Connector Type | 8P8C (RJ45) |
| Frequency | 250 MHz |
| Max Data Rate | 10G / 1G |
| LED Indicator | Yes, for port identification |
| Contact Plating | 50 micro-inch gold |
| Wire Gauge | 23 to 26 AWG |
| Application | HDBaseT, PoE, IEEE802.3bt / PoE++ / 4PPoE / Ultra PoE |
| Standards Compatibility | ISO/IEC 11801, T568A/B |
| Packaging | Jar |
| UL Listing | Yes |
SKU  | 791267 |
|---|---|
| Manufacturer | Intellinet |
| NDAA | Compliant |
| Wire Type | CAT6, UTP |
| Connector Type | RJ-45 |
Connector Method  | Punchdown |
791267-Specsheet 791267-Quick-Installation-Guide
