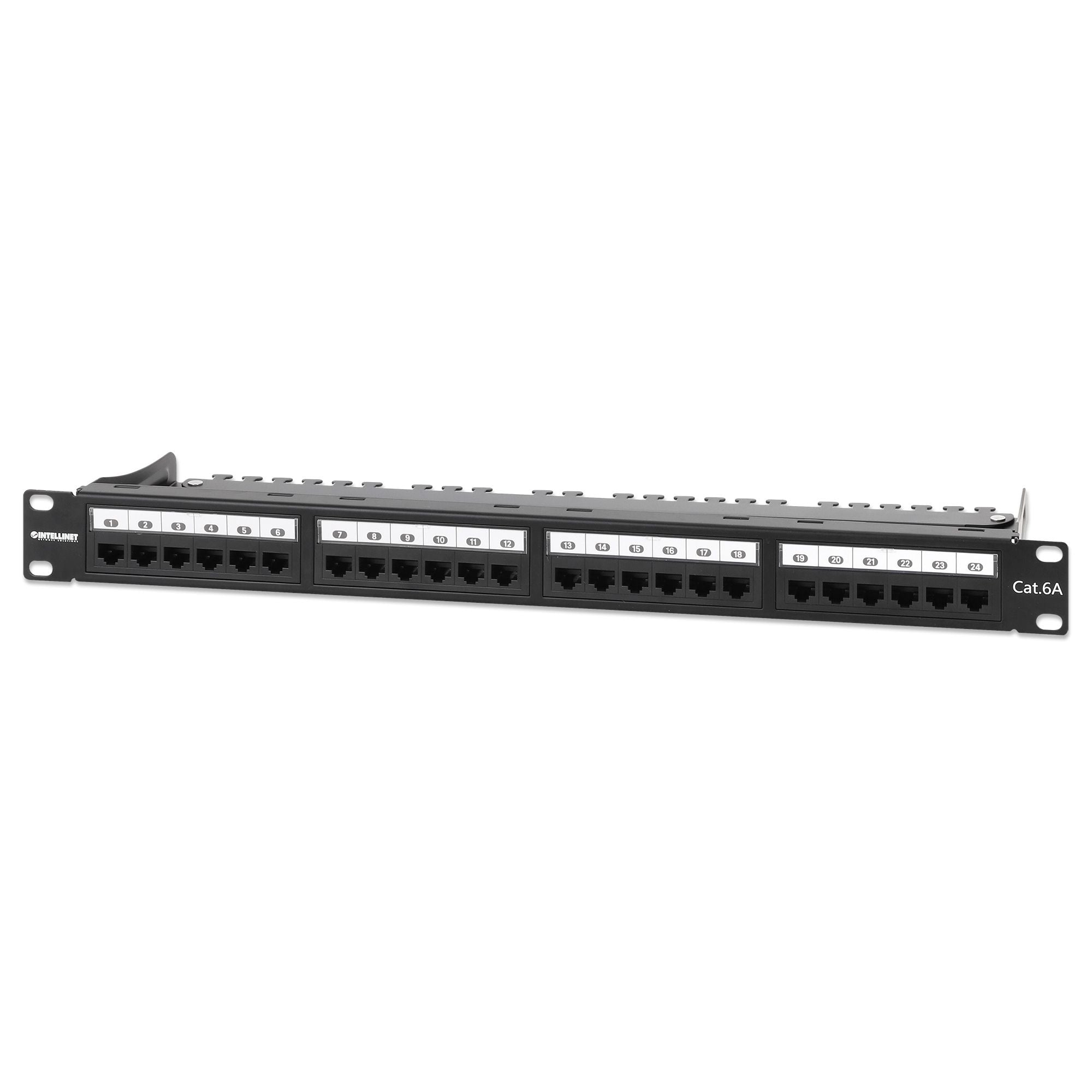

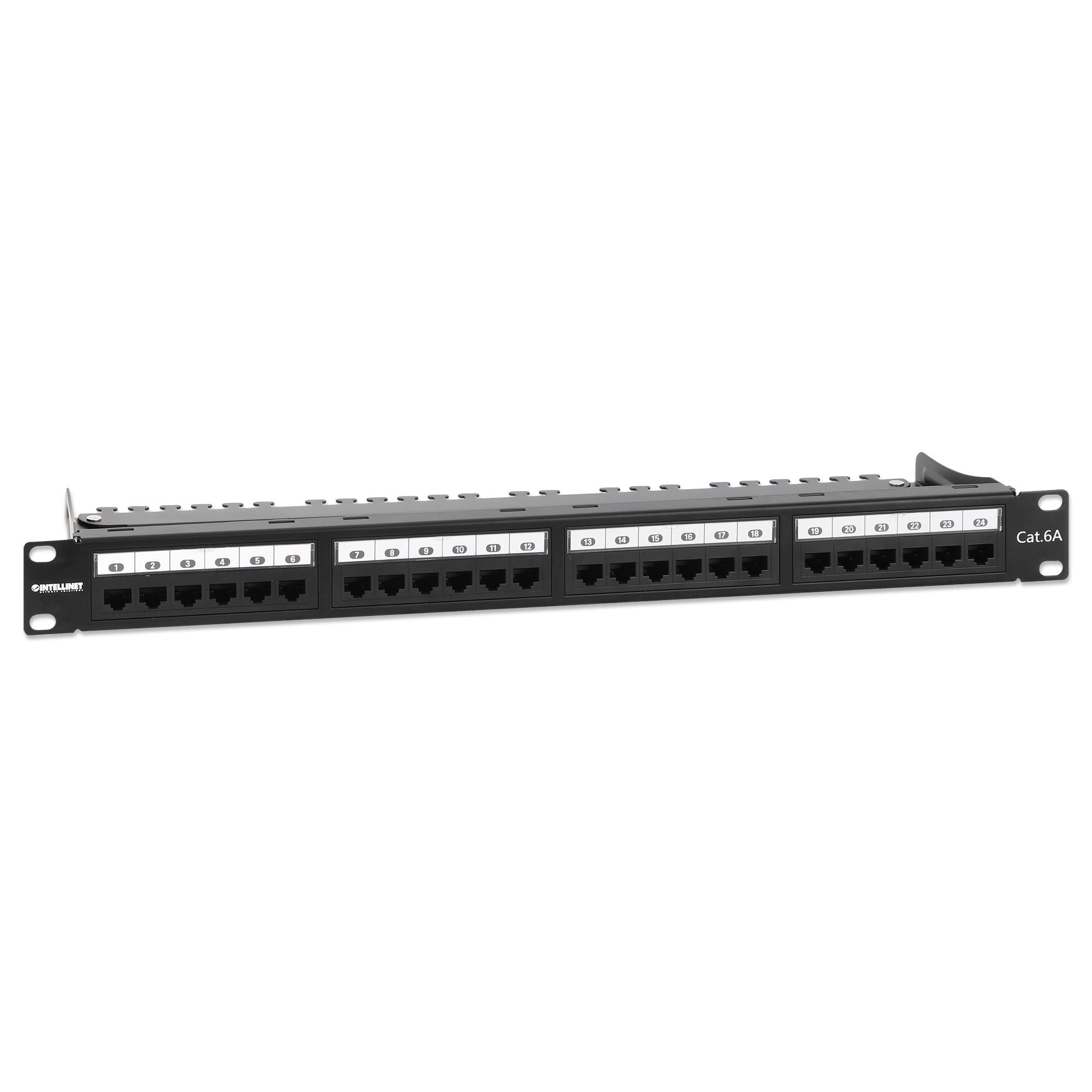

Intellinet 720533 Cat6a 10G 24-Port Patch Panel, 1U

The Cat6a 24-Port Patch Panel, 1U from Intellinet Network Solutions is designed to support modern high-performance networks with dependable 10 Gigabit Ethernet capability. Compliant with Cat6A Class EA requirements and supporting frequencies up to 500 MHz, it meets key international standards including ISO/IEC 11801, IEC 60603-7-51, and ANSI/TIA-568-D. This ensures consistent signal integrity and future-ready infrastructure for demanding data environments.

Efficient and Installer-Friendly Cable Termination

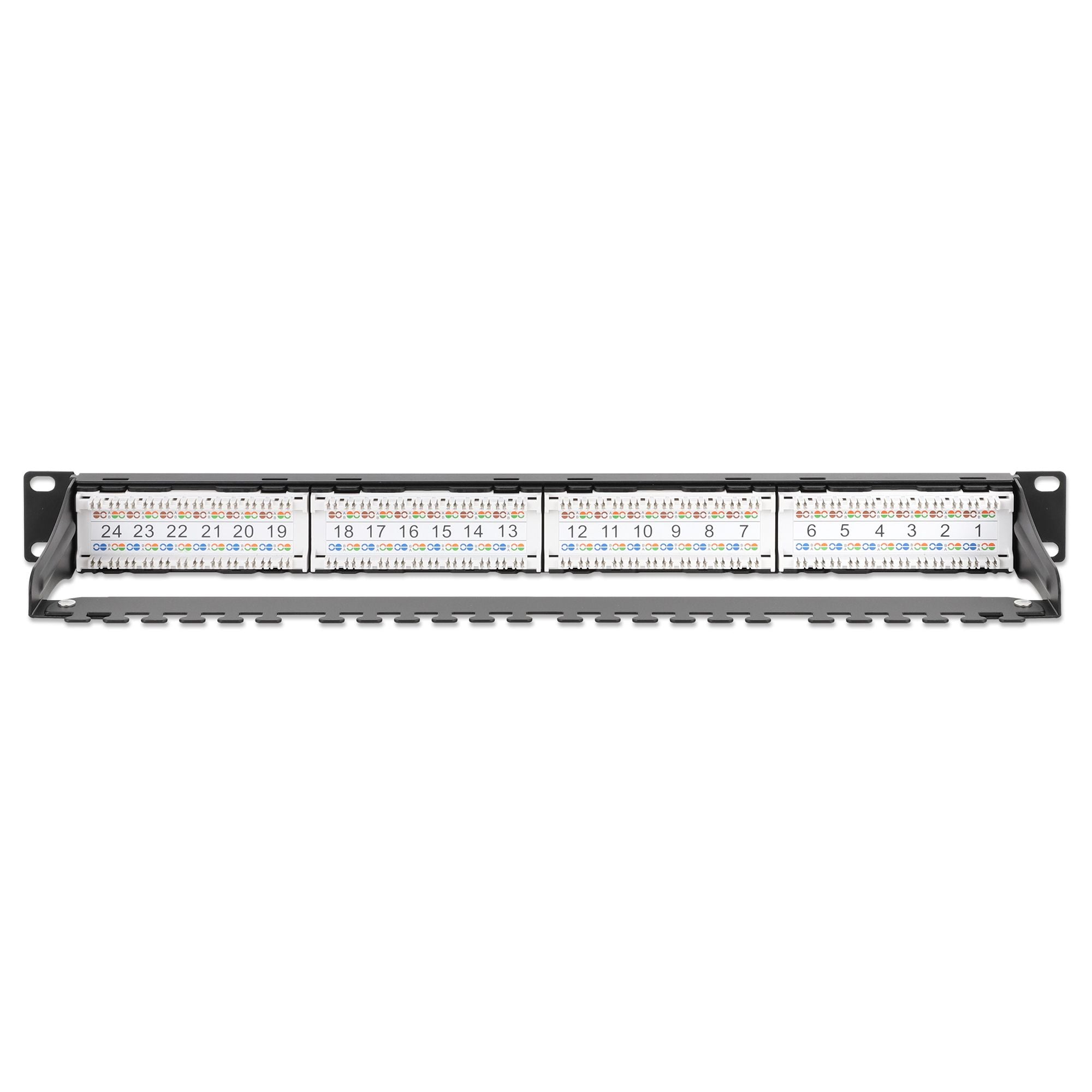

Equipped with 24 RJ45 ports, it enables structured and organized cable management. The 180° straight IDC punch-down blocks allow for easy and intuitive cable termination, particularly in installations where accessibility is important. Compatibility with both 110 and Krone punch-down tools provides flexibility for installers, while support for 23 to 26 AWG solid wire ensures broad application compatibility.

Durable Construction and High-Quality Materials

Built from sturdy, cold-rolled SPCC steel and finished with an antistatic powder coating, this patch panel is engineered for long-term durability in professional environments. The gold-plated contacts (50 micro-inch) provide corrosion resistance and reliable conductivity with stable connections even in demanding conditions.

Flexible Installation and Clean Cable Management

The integrated, removable cable management bar allows for neat and adaptable cable routing, simplifying both initial installation and future maintenance. Designed to IEC 60297 and EIA 310 standards, the panel fits seamlessly into all standard 19-inch (482.6 mm) racks, making it a versatile solution for a wide range of installations.

Features

• Cat6a Class EA with 10G and 500 MHz in accordance with ISO/IEC 11801, IEC 60603-7-51, and ANSI/TIA-568-D
• 24 numbered and labeled RJ45 ports with 180° straight IDC terminals for easy cable termination
• 50 micro-inch gold-plated contacts for corrosion-free connections
• Supports 23 to 26 AWG solid wire
• Compatible with both 110 and Krone punch-down tools
• Sturdy, high-quality, cold-rolled SPCC steel construction with antistatic powder coating
• Removable cable-management bar
• IEC 60297 / EIA 310-compliant; compatible with all standard 19 in. / 482.6 mm racks
• Ideal for 10G and PoE applications up to IEEE802.3bt / PoE++ / 4PPoE / Ultra PoE
• For use with unshielded twisted pair (UTP) Cat6a cable
• Standard 8P8C design, compatible with all network RJ45 connections
• Compatible and color-coded with T568A and T568B
• Fully backward compatible with all the previous cable categories, including Category 6, 5e and 5
• 24 cable ties included
• UL listed
• Fully NDAA-compliant
