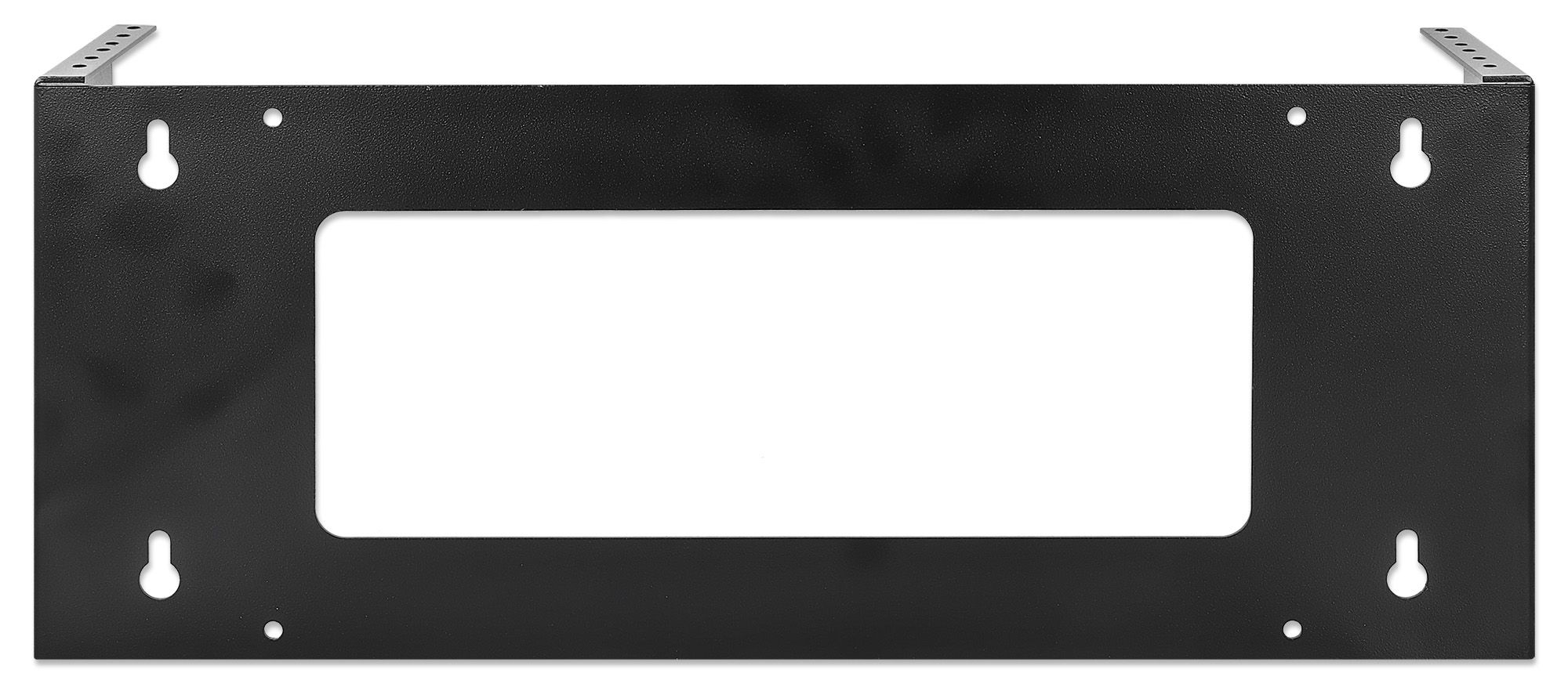

Intellinet 716352 Vertical Wall Mount Rack Bracket for 19" Equipment, 2 Unit

This 19" Vertical Wall Mount Rack Bracket offers a reliable rackmount solution for IT and AV equipment in home offices and small businesses where space limitations prevent conventional racking. Mount your network equipment, such as PDUs, switches, and patch panels, with a smaller footprint by hanging it flush against the wall. Alternatively, you can install it horizontally beneath a desk, providing convenient access to the installed equipment directly from your workspace.

Constructed with a heavy-duty cold-rolled sturdy steel adhering to EIA-310 19in rack standards, this wall-mount bracket is perfect for environments lacking the footprint space for a full-size server equipment rack. Wall-mounting holes spaced 16 inches apart match standard wall-stud placement. The bracket supports equipment up to a maximum weight of 135 lbs. (61 kg) with good airflow through its open design.

Intellinet 19" Vertical Wall Mount Rack Bracket Features

• Space-saving design: Allows vertical rackmount installations ideal for network equipment like patch panels, PDUs, switches, and more.
• Flush mounting: Mountable flush with the wall, great for network areas with limited floor space (wall-mounting hardware included).
• Open frame: Ensures good airflow and easy access to equipment and cabling.
• High load capacity: Maximum load capacity of 135 lbs. (61 kg) for heavy equipment.
• Standard compliance: IEC 60297 / EIA 310-compliant; compatible with all standard 19 in. / 482.6 mm rack-mount equipment.
• Cost-effective solution: A simple and cost-effective solution; great for secure environments that do not require a lockable network cabinet.
• Versatile usage: Also suitable for horizontally mounting workstations or KVM switches under a desk to free up workspace.
• Durable construction: Made with 2 mm (0.1 in.) thick, cold-rolled SPCC steel and powder coating for long-lasting durability.
• Quick installation: Ships fully assembled for quick and easy installation.
• Included hardware: Twelve #10-12 x 1/2" flat head screws for 19" mounting included.

Intellinet 19" Vertical Wall Mount Rack Bracket Specifications
