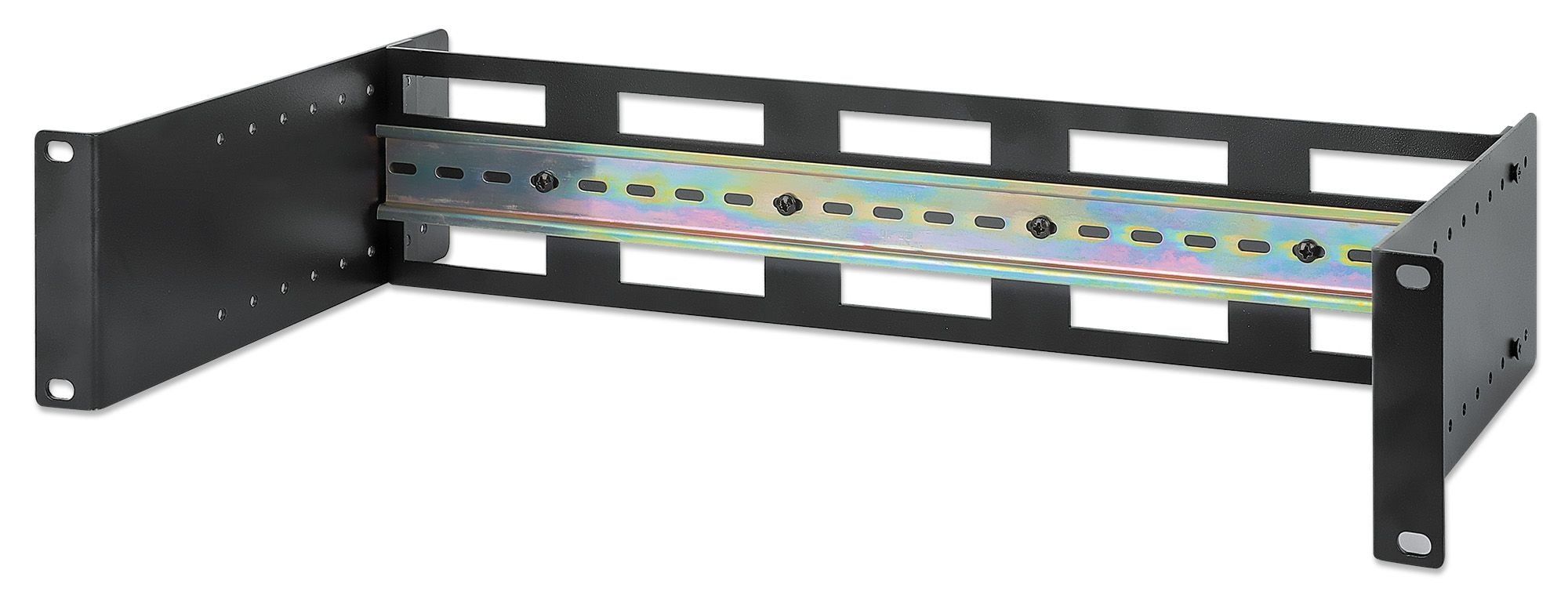

Intellinet 716345 Adjustable 19" Rackmount DIN Rail Kit, 2 Unit
- Rack-mountable chassis with top hat DIN rail to easily install any 35 mm (0.79’’) equipment in a 19 in. network or server cabinet
- Depth-adjustable on eight levels from 48 to 174 mm (1.89 to 6.85 in.) to accommodate a wide range of products
- Ideal for DIN-rail equipment like industrial PoE switches, media converters, power supplies, circuit breakers, terminal blocks and more
- IEC 60297 / EIA 310-compliant; compatible with all standard 19 in. / 482.6 mm racks
- DIN-rail in accordance with IEC/EN 60715
The Adjustable 19" Rackmount DIN Rail Kit, 2U from Intellinet Network Solutions allows for seamless integration of your top hat DIN rail equipment into a 19 in. network enclosure, open frame rack or server cabinet.

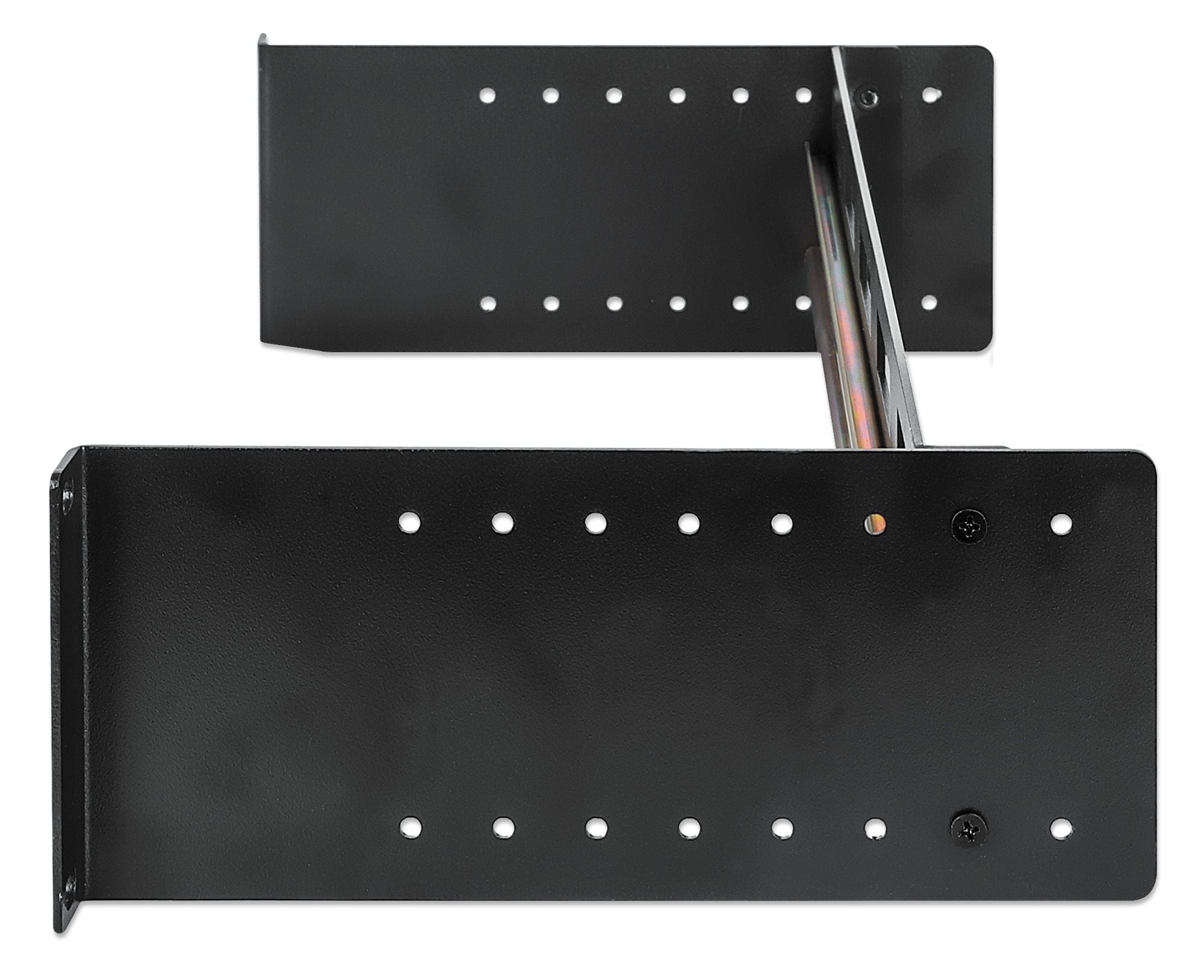

Tailor Your Space with Depth Adjustment
With eight adjustable levels ranging from 48 to 174 mm (1.89 to 6.85 in.), it accommodates a wide spectrum of products. Whether it's industrial PoE switches, media converters, power supplies, circuit breakers, terminal blocks, or more – this kit adapts to your needs.
Compliant and Compatible
Meeting EIA 310 / IEC 60297 standards, it fits into all standard 19 in. / 482.6 mm racks. The DIN-rail, in accordance with IEC/EN 60715 standards, ensures a perfect fit for your equipment.
Durable Construction Built to Last
Crafted with heavy-duty anodized 2 mm thick aluminum, our kit is built to withstand the test of time. It offers great strength and stability, providing a maximum load capacity of 9 kg (20 lbs.).
Everything You Need Included
We've got you covered with a package that includes four M6x12 screws, four M6 cage nuts, and four M6 plastic washers for 19" mounting straight out of the box.
Features
- Rack-mountable chassis: Enables easy installation of any 35 mm (0.79’’) equipment in a 19 in. network or server cabinet.
- Depth-adjustable: Offers eight levels from 48 to 174 mm (1.89 to 6.85 in.) to fit a variety of products.
- Ideal for DIN-rail equipment: Perfectly designed for usage with industrial PoE switches, media converters, power supplies, circuit breakers, terminal blocks, and more.
- Standards compliant: Adheres to IEC 60297 / EIA 310; ensuring compatibility with all standard 19 in. / 482.6 mm racks.
- DIN-rail specifications: Designed to comply with IEC/EN 60715 for optimal fit.
- Heavy-duty construction: Made from anodized 2 mm thick aluminum for durability and long-term use.
- Load capacity: Supports a maximum load of 9 kg (20 lbs.) for reliable performance.
- Complete mounting kit: Comes with four M6x12 screws, four M6 cage nuts, and four M6 plastic washers for immediate assembly.
Intellinet Adjustable 19" Rackmount DIN Rail Kit Specifications
| SKU | 2U-RM-DIN |
| Material | Anodized 2 mm thick aluminum |
| Load Capacity | 9 kg (20 lbs.) |
| Depth Adjustment | 48 to 174 mm (1.89 to 6.85 in.) |
| Rack Compatibility | Standard 19 in. / 482.6 mm racks |
| Standards Compliance | EIA 310 / IEC 60297 |
| DIN-Rail Standard | IEC/EN 60715 |
| Included Accessories | 4 M6x12 screws, 4 M6 cage nuts, 4 M6 plastic washers |
SKU  | 716345 |
|---|---|
| Manufacturer | Intellinet |
| NDAA | Compliant |
| Product Type | Rack Mount Kit |
| Width In Inches | 19" |
| Spacing | 2U |
716345-Specsheet
