Intellinet 716239 Pro Line Network Cabinet with Integrated Fans, 27 Unit

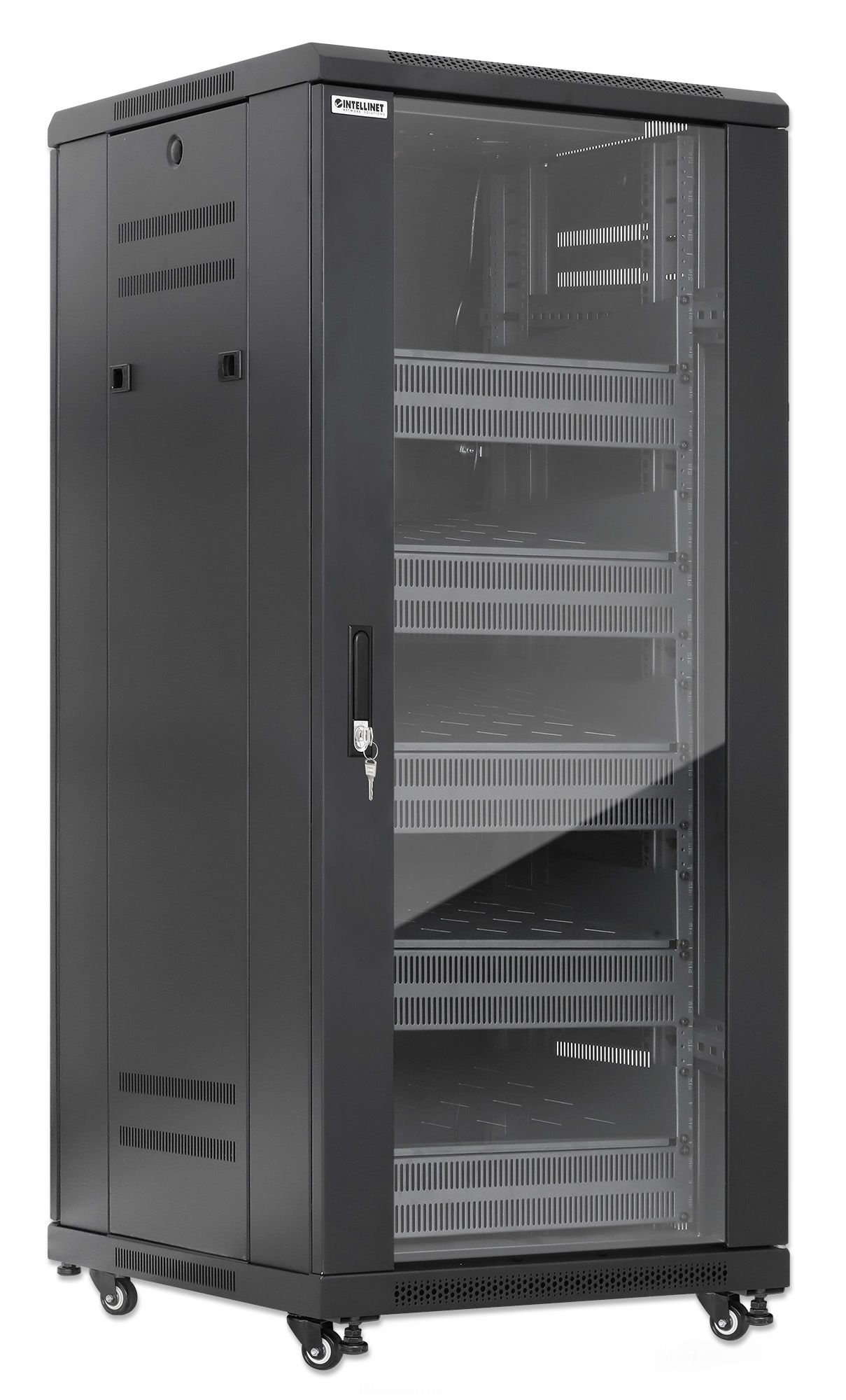

This 27U floor-standing network cabinet provides secure and convenient housing for your IT and server equipment. Its front and rear pairs of vertical rails are adjustable from 5.91 in. (150 mm) to 19.69 in. (500 mm) and offer threaded 10-32 mounting holes. Each rack space is numbered for easy reference. The strong and durable enclosure, constructed of high-quality SPCC cold-rolled steel with antistatic powder coating, carries a load capacity up to 1760 lbs. (800 kg). Its fully assembled shipping condition saves you the trouble of putting it together.

Intellinet 27U Network Cabinet Features

• Secure and versatile enclosure: Ideal for network, server, telecommunications, and A/V equipment, ensuring optimal protection for valuable components.
• Fully assembled shipping: Ready to use out of the box, allowing for quick installation and minimizing setup time.
• Adjustable installation depth: Usable depth ranging from 5.91 to 19.69 in. (150 to 500 mm) accommodates diverse mounting needs.
• High load capacity: Maximum static load capacity of 1760 lbs. (800 kg), ensuring it can support heavy equipment, including 700 lbs. (320 kg) when on casters.
• Efficient two-fan ventilation: Roof-mounted fans provide superior heat dissipation, promoting longer equipment lifespan and improved performance.
• Integrated thermostat: Monitors temperatures from 32 to 140°F (0 to 60°C) and activates fans to conserve energy and prevent unnecessary operation.
• Durable construction: Made from high-quality SPCC cold-rolled steel with an antistatic powder coating for enhanced durability and longevity.
• Multiple shelves included: Five removable, vented 2U shelves with a 22 lbs. (10 kg) load capacity each allows for non-rack-mountable equipment.
• Blank panels: Comes with five removable vented 2U blank panels to efficiently cover unused spaces.
• IP20-rated protection: Ensures a safe environment for equipment against dust and physical contact.
• Cable management: Pre-punched openings on top and bottom facilitate organized cable entry and exit.

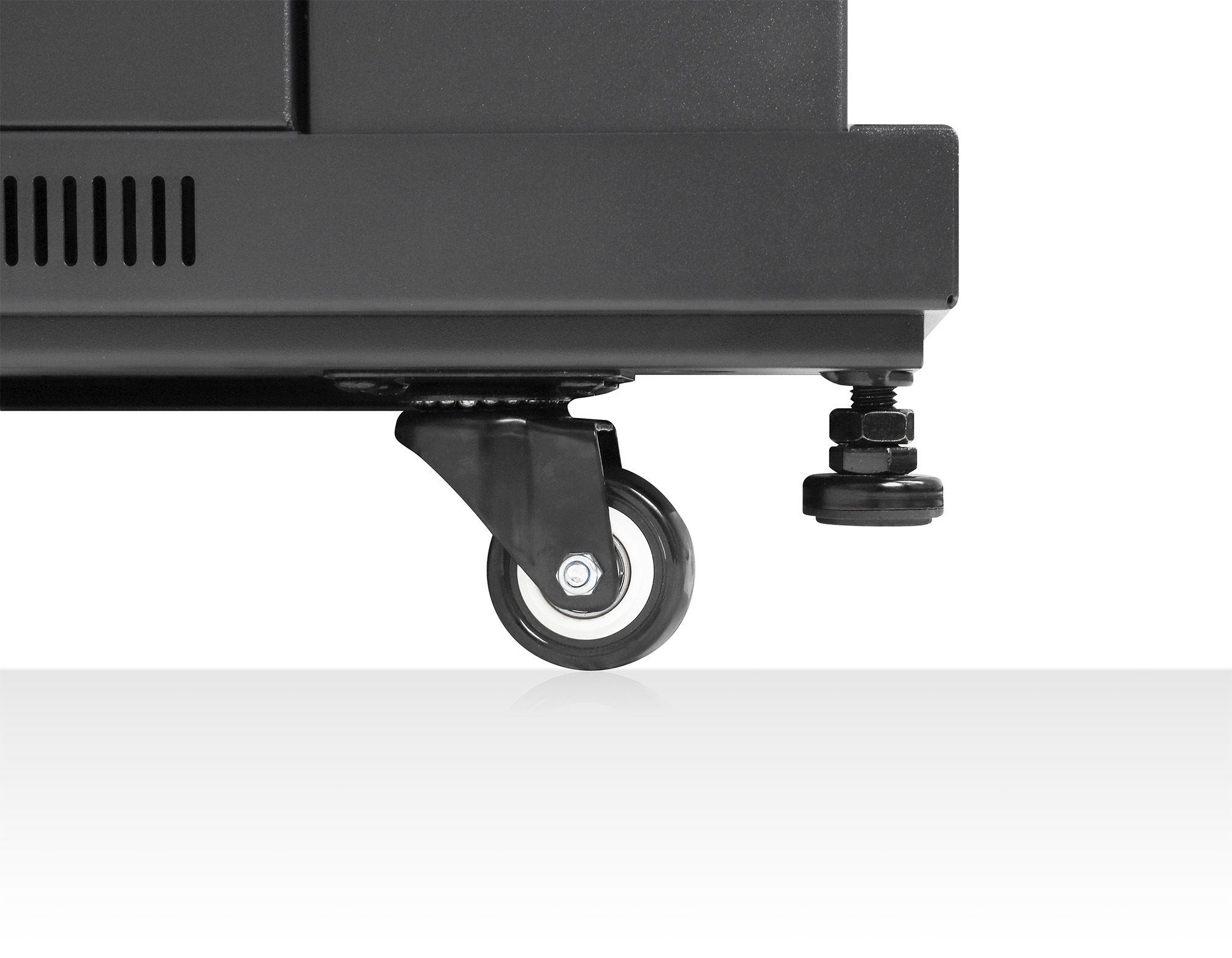

• Maneuverability: Equipped with pre-installed leveling feet and heavy-duty casters for stability and ease of movement.
• Grounding kits: Included for protection against external electrical surges, adding an extra layer of safety.
• Reversible doors: Tempered-glass front door and steel rear door for flexible access, allowing a swing from either side.
• Secure locking mechanism: Swing handle with multi-point lock on the front and single-point lock on the rear offers enhanced security.
• Easy access: Removable side panels provide hassle-free access to cabling and equipment for maintenance or upgrades.
• Mounting screws included: Forty #10-32 screws for 19" mounting ensure a complete package for setup.
• Threaded mounting holes: Vertical rails feature threaded #10-32 mounting holes, compatible with standard equipment.
• Numbered rack spaces: Designed for easy reference with numbered rackmount space height units.
• Standards compliant: IEC 60297 / EIA 310-compliant, compatible with all standard 19 in. / 482.6 mm rack-mount equipment.

Intellinet 27U Network Cabinet Specifications
