Intellinet 716222 Pro Line Network Cabinet with Integrated Fans, 18 Unit

This 18U floor-standing network cabinet provides secure and convenient housing for your IT and server equipment. Its front and rear pairs of vertical rails are adjustable from 5.91 in. (150 mm) to 19.69 in. (500 mm) and offer threaded 10-32 mounting holes. Each rack space is numbered for easy reference. The strong and durable enclosure, constructed of high-quality SPCC cold-rolled steel with antistatic powder coating, carries a load capacity up to 1760 lbs. (800 kg). Its fully assembled shipping condition saves you the trouble of putting it together.

Intellinet 18U Network Cabinet - Cooling Features

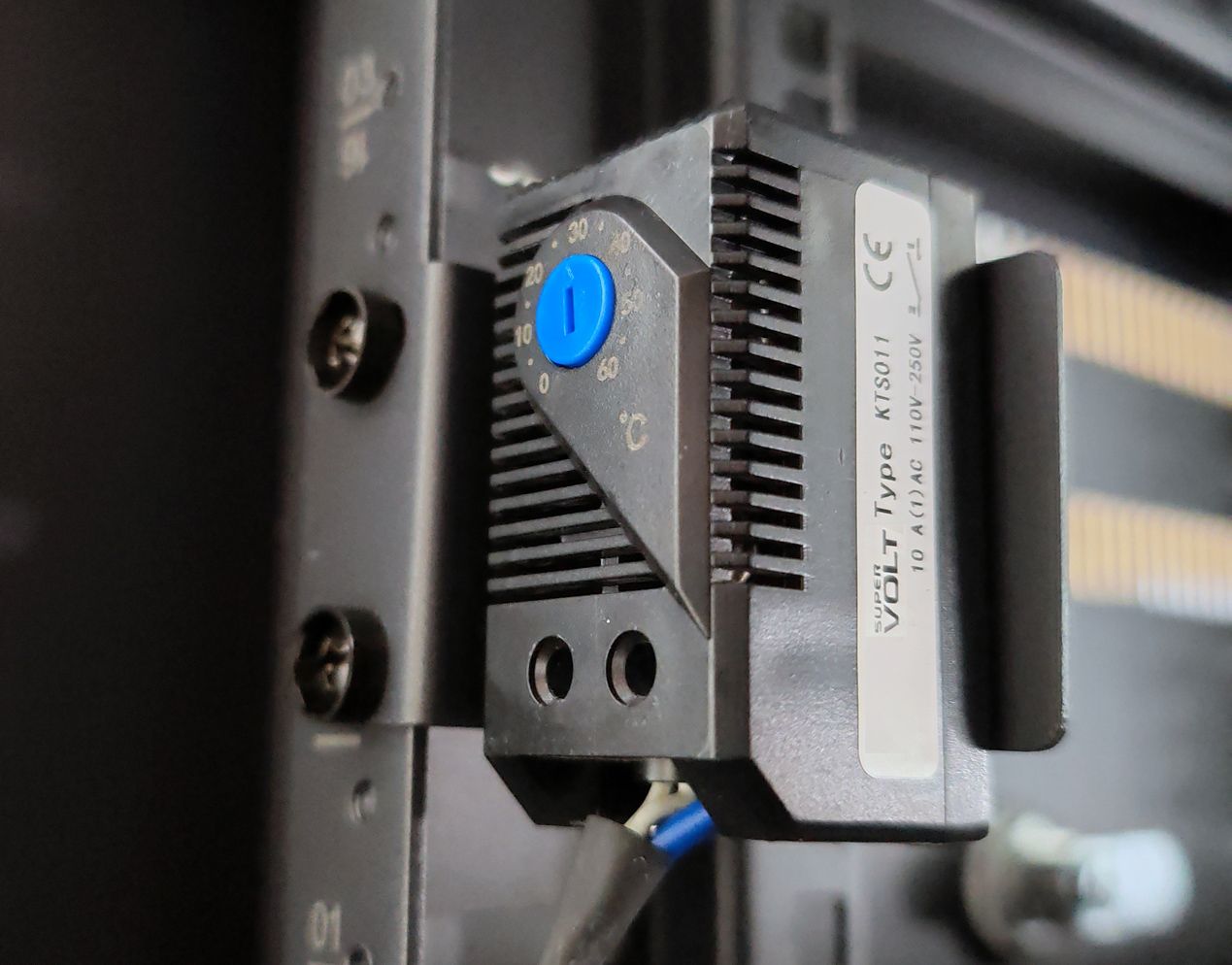

The two-fan ventilation unit provides reliable cooling and ideal air circulation in the cabinet for improved performance and longer life of your valuable networking components. It comes pre-installed in the roof of the cabinet, where it helps dissipate damaging heat. An integrated thermostat with adjustable rotary control and a 32 to 140°F (0 to 60°C) monitoring range activates the fans at a set temperature, preventing unnecessary operation and conserving energy.

Intellinet 18U Network Cabinet - Included Accessories

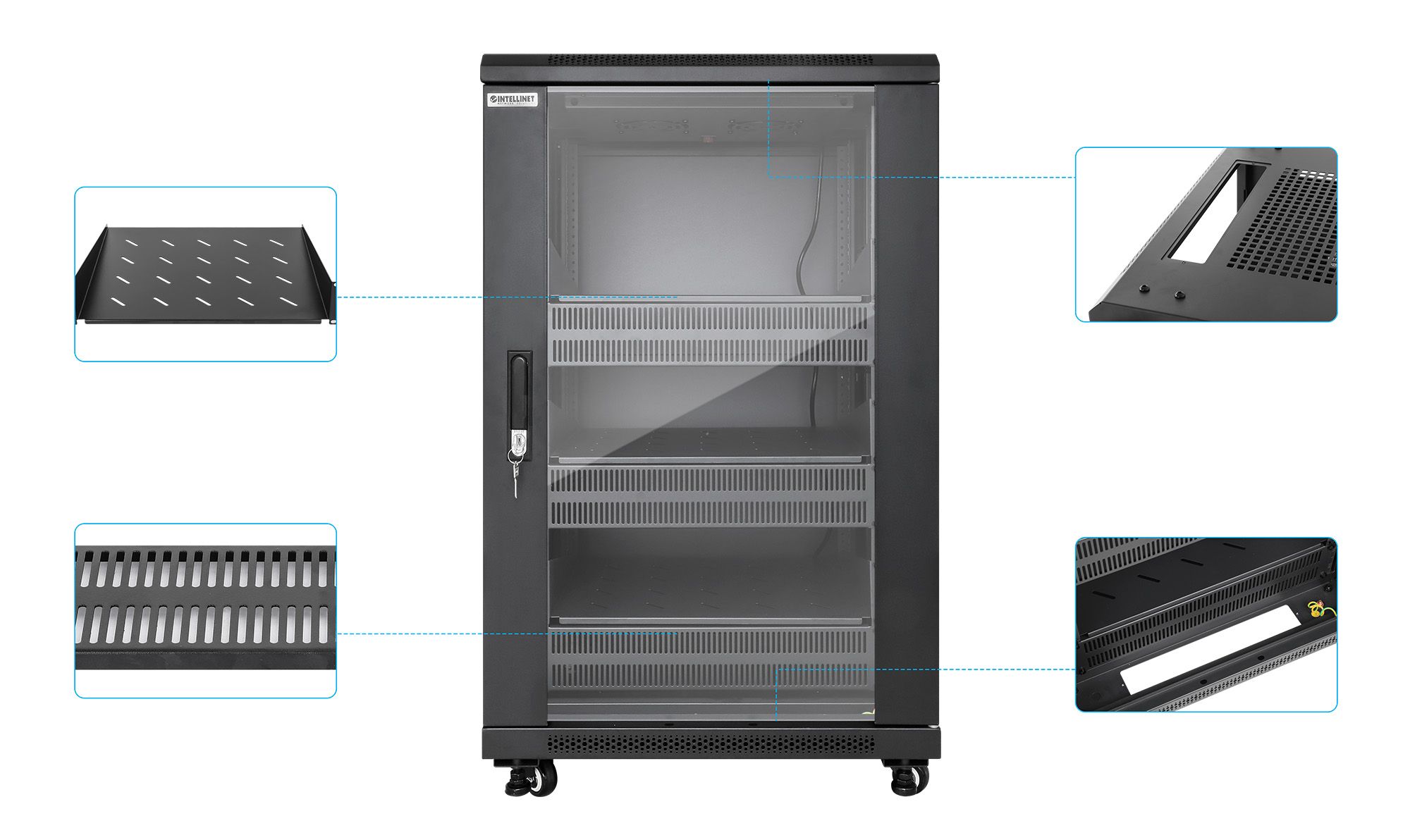

Our package contents don’t end with the rack and fans. On the two included shelves, you can place equipment that is not rack-mountable. Two vented blank panels cover unused space in the cabinet. Four wheels offer ease of mobility around your office or server room. Once the enclosure is in place, you can stabilize it using the built-in leveling feet. To mount your 19" equipment, you don’t even need to purchase mounting material because 40 #10-32 screws are also included.

Intellinet 18U Network Cabinet - Security Features

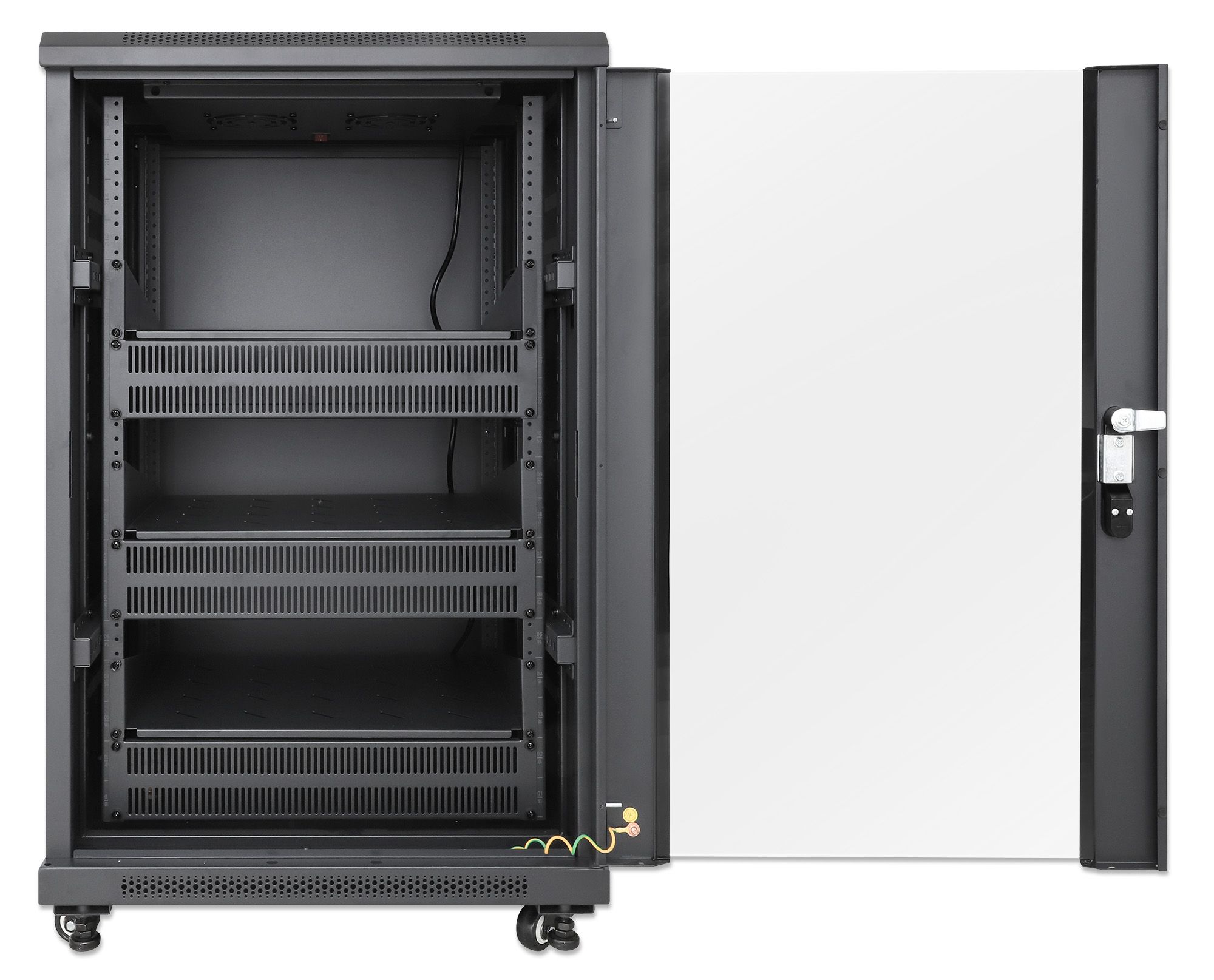

To give you full visibility of your equipment while it is securely locked, this rack has a tempered-glass front door. It can be mounted on the left or right to swing as required, just like the steel rear door. The removable side panels with latches enable you to easily access your cabling and components. Two keys are included for each door.

Features

• Secure, versatile floor-standing rack enclosure: Ideal for network, server, telecommunications, and A/V equipment.
• Ships fully assembled: Ensures quick installation without the hassle of assembly.
• Adjustable installation depth: Usable depth adjustable from 5.91 to 19.69 in. (150 to 500 mm) for versatile equipment fitting.
• High load capacity: Maximum static load capacity of 1760 lbs. (800 kg) supports heavy equipment; 700 lbs. (320 kg) when on casters.
• Efficient cooling system: Roof-mounted, two-fan ventilation unit with effective heat dissipation for optimal performance.
• Energy-saving thermostat: Rotary control with 32 to 140°F (0 to 60°C) monitoring prevents unnecessary fan operation.
• Durable construction: Sturdy high-quality, cold-rolled SPCC steel with an antistatic powder coating enhances durability.
• Multiple shelves included: Three removable, vented 2U shelves with 15 in. (380 mm) depth and 22 lbs. (10 kg) load capacity.
• Blank panels included: Three vented 2U blank panels to neatly cover unused rack positions.
• IP20-rated protection: Shields equipment from dust and accidental contact.
• Cable entry openings: Pre-punched openings on top and bottom for easy cable management.

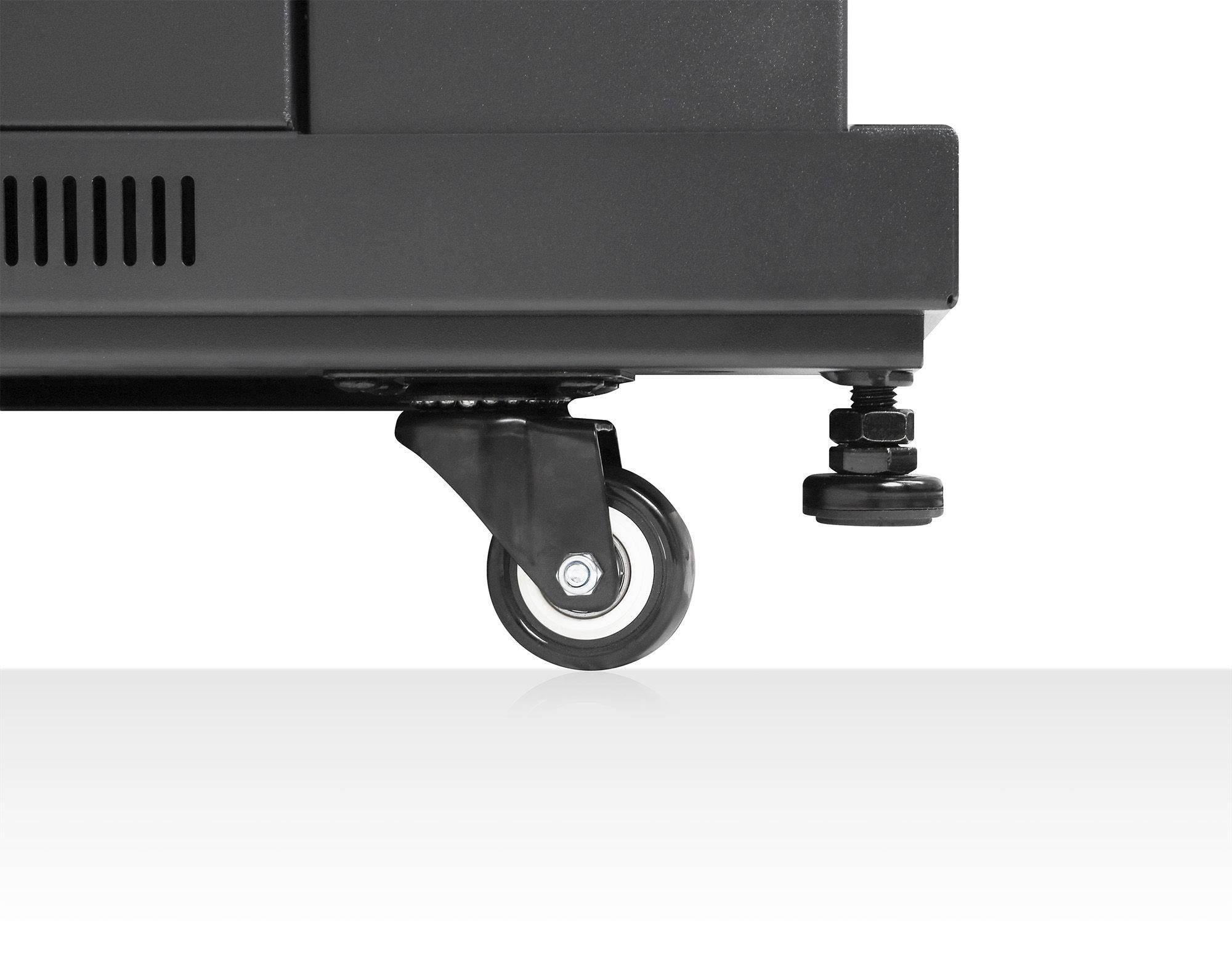

• Mobility and stability features: Pre-installed leveling feet and heavy-duty casters for secure placement and easy relocation.
• Grounding kits included: Protects equipment from external electrical surges for enhanced safety.
• Reversible tempered-glass doors: Front door swings open from left or right; includes a steel rear door.
• Multi-point locking system: Ensures security with a swing handle on the front door and a single-point lock on the rear door.
• Easy access panels: Removable side panels for straightforward access to cabling and components.
• Mounting screws included: Forty #10-32 screws for 19" mounting come with the product.
• Threaded mounting holes: #10-32 mounting holes on vertical rails facilitate secure installation.
• Numbered rackmount space: Height units are clearly numbered for user-friendly reference.
• IEC 60297 / EIA 310 compliant: Compatible with all standard 19 in. / 482.6 mm rack-mount equipment.
