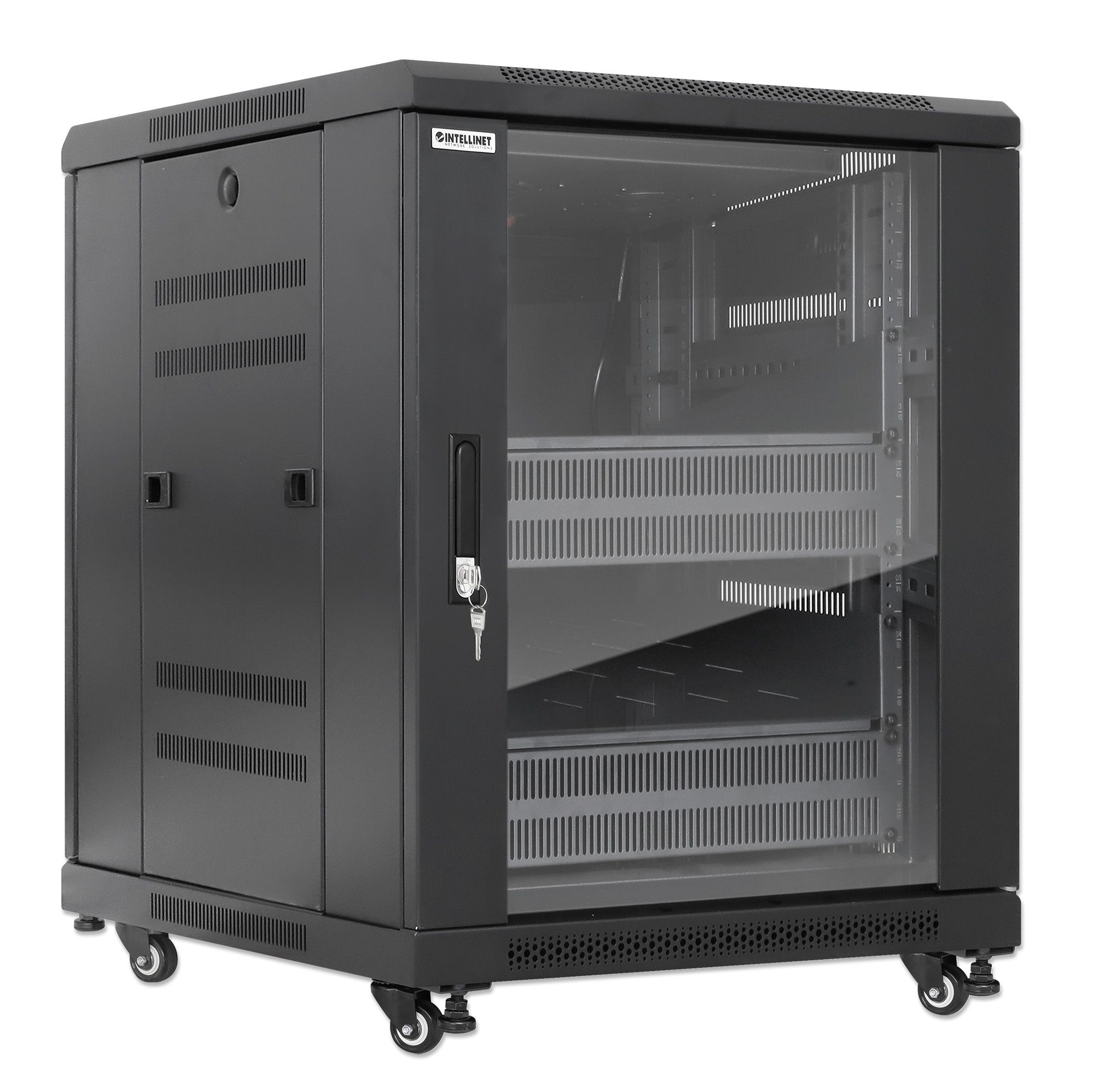

Intellinet 716215 Pro Line Network Cabinet with Integrated Fans, 12 Unit

This 12U floor-standing network cabinet provides secure and convenient housing for your IT and server equipment. Its front and rear pairs of vertical rails are adjustable from 5.91 in. (150 mm) to 19.69 in. (500 mm) and offer threaded 10-32 mounting holes. Each rack space is numbered for easy reference. The strong and durable enclosure, constructed of high-quality SPCC cold-rolled steel with antistatic powder coating, carries a load capacity up to 1760 lbs. (800 kg). Its fully assembled shipping condition saves you the trouble of putting it together.

Intellinet 12U Network Cabinet Key Features

• Secure, versatile design: Floor-standing enclosure ensures safe storage for network, server, telecommunications, and A/V equipment.
• Quick installation: Ships fully assembled, allowing for immediate setup and use.
• Adjustable installation depth: Usable depth is adjustable from 5.91 to 19.69 in. (150 to 500 mm) for custom equipment fitting.
• Heavy-duty load capacity: Supports a maximum static load of 1760 lbs. (800 kg) and 700 lbs. (320 kg) when on casters, accommodating a variety of equipment.
• Efficient cooling system: Roof-mounted two-fan ventilation unit ensures optimal heat dissipation to prolong equipment lifespan.
• Energy-saving thermostat: Integrated thermostat with rotary control activates fans at set temperatures (32 to 140°F / 0 to 60°C) to reduce unnecessary operation.
• Quality construction: Built from high-quality, cold-rolled SPCC steel with antistatic powder coating for durability.
• Included shelves: Two removable, vented 2U shelves with a depth of 15 in. (380 mm) and 22 lbs. (10 kg) load capacity each for added storage options.
• Vented blank panels: Two removable 2U blank panels cover unused positions in the cabinet to optimize airflow and aesthetics.
• IP20-rated protection: Offers protection against solid objects greater than 12mm, ensuring the safety of stored equipment.
• Cable management openings: Pre-punched cable entry openings on the top and bottom enhance organization and accessibility.
• Mobility and stability: Pre-installed leveling feet and heavy-duty casters provide stability and maneuverability in various environments.
• Electrical surge protection: Grounding kits for front and back doors guard against external electrical surges, thus protecting your equipment.
• Reversible doors: Tempered-glass front door opens from either side (left or right) for flexibility, while the steel rear door is also reversible.
• Secure locking mechanisms: Multi-point door lock on the front and single-point lock on the rear ensure equipment security; includes two keys for each door.
• Easy access: Removable side panels facilitate straightforward access to cabling and equipment components.
• Mounting hardware included: Forty #10-32 screws provided for 19" mounting save time and additional purchases.
• Standard compatibility: IEC 60297 / EIA 310-compliant design is compatible with all standard 19 in. / 482.6 mm rack-mount equipment.
