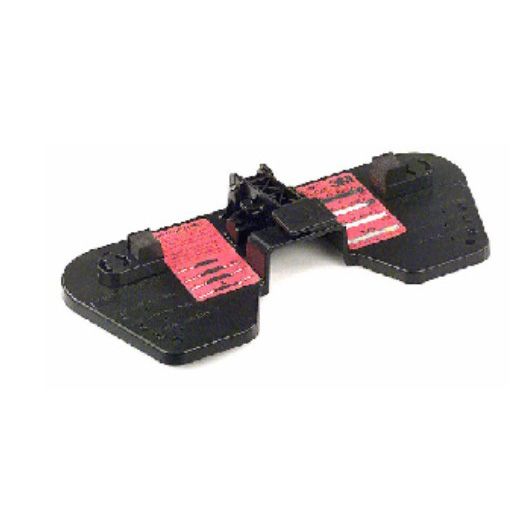

West Penn 3M-2501 3M Fiber Lock Splice Tool
SKU
3M-2501
Model No
3M-2501
$236.83
Product Highlights
- Insertion loss <.2dB
- Fiber retention of >7.75 lbs
- Low reflection characteristics of -35dB
- Thermal stability of -40°C to 80°C
Speak to an expert
West Penn 3M-2501 3M Fiber Lock Splice Tool Features
The 3M™ Fibrlok II Universal Optical Fiber Splice 2529 provides permanent mechanical splices for single- or multimode fiber having 125 µm diameter cladding. The 2529 universal splice is designed to accommodate any combination of fibers with coating diameters from 250 µm to 900 µm.
Features
- Insertion loss: <.2dB, ensuring minimal signal loss for improved performance.
- Fiber retention: >7.75 lbs, providing reliable and secure connections that withstand strain.
- Low reflection characteristics: -35dB, enhancing signal clarity and reducing interference.
- Thermal stability: -40°C to 80°C, ensuring the tool operates effectively in extreme environmental conditions.
West Penn 3M-2501 3M Fiber Lock Splice Tool Specifications
| Feature | Details |
| Product Type | Universal Optical Fiber Splice |
| Compatible Cladding Diameter | 125 µm |
| Coating Diameters Accommodated | 250 µm to 900 µm |
| Insertion Loss | <.2dB |
| Fiber Retention Strength | >7.75 lbs |
| Reflection Characteristics | -35dB |
| Operating Temperature Range | -40°C to 80°C |
SKU  | 3M-2501 |
|---|---|
| Manufacturer | West Penn |
