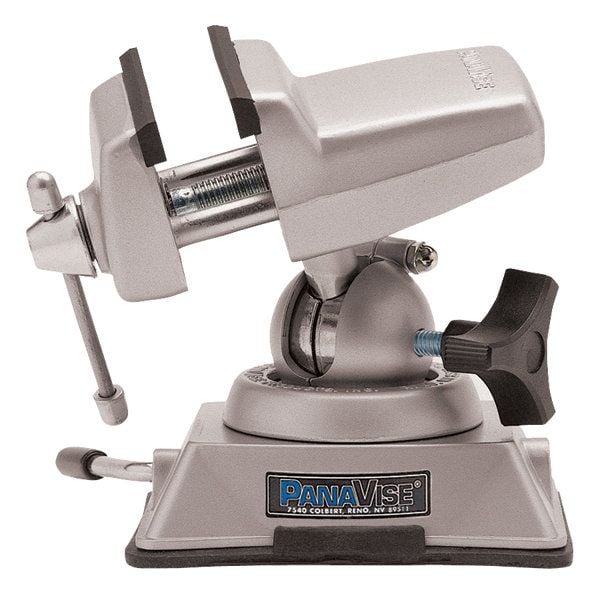

Panavise 381 Vacuum Base PanaVise
SKU
381

Panavise Model 381

Panavise 381 Vacuum Base PanaVise

Free shipping over $450
Model No
381
$79.99
Volume Discounts Volume
Discounts
Free System Design Free System
Design
Lifetime Tech Support Lifetime
Tech Support
Free Shipping Over $450* Free Shipping
Over $450*
Product Highlights
  • Our Vacuum Base PanaVise is widely used for portable applications
  • Single knob controls head movement through 3-planes: 90° Tilt, 360° Turn & 360° Rotation
  • Jaws are 2.5" (63.5mm) wide, 0.5" (12.6mm) tall and open to 2.25" (57.1mm)
  • Pad footprint measures 5.125" x 4.25" (130.2mm x 108mm)
  • Height: 6.125" (155.6mm), Weight: 2.8 lbs. (1.3kg)

Overview

The 381 from PANAVISE is a Vacuum Base Work Holder / Vise that quickly attaches to any smooth, non-porous flat surface with the flip of a lever. It can be carried easily anywhere, needed for hobbies, electronics, and small home repairs. In 381 the nylon jaws offer excellent electrical insulation and gentle holding power. Interchangeable jaws are available. The Vacuum Base PanaVise is widely used for portable applications.

PANAVISE 381 Vacuum Base Features

  • Portable Design: Our Vacuum Base PanaVise is widely used for portable applications, making it perfect for hobbies and repairs on the go.
  • Flexible Head Movement: Single knob controls head movement through 3-planes: 90° Tilt, 360° Turn & 360° Rotation, allowing for versatile positioning and adjustments.
  • Jaws Specifications: Jaws are 2.5" (63.5mm) wide, 0.5" (12.6mm) tall, and open to 2.25" (57.1mm), catering to various project sizes and types.
  • Nylon Jaws: These offer excellent electrical insulation and gentle holding power with continuous heat tolerance up to 200°F (93°C) and intermittent heat to 300°F (149°C), ensuring safe use.
  • Compatible Base: Base accepts all 300 series Heads and any 5/8" (15.9mm) diameter shaft, adding to the versatility of the PanaVise.
  • Compact Pad Footprint: Pad footprint measures 5.125" x 4.25" (130.2mm x 108mm), enhancing stability without occupying much space.
  • Lightweight: Height: 6.125" (155.6mm), Weight: 2.8 lbs. (1.3kg), making it easy to transport without sacrificing usability.

PANAVISE 381 Vacuum Base Detailed Specifications

FeatureDetails
Product TypeVacuum Base Work Holder / Vise
Attachment MethodVacuum suction for smooth, non-porous surfaces
Head Movement90° Tilt, 360° Turn, 360° Rotation
Jaw Width2.5" (63.5mm)
Jaw Height0.5" (12.6mm)
Jaw OpeningUp to 2.25" (57.1mm)
MaterialNylon Jaws
Heat ToleranceContinuous up to 200°F (93°C), Intermittent up to 300°F (149°C)
Base CompatibilityAll 300 series Heads, 5/8" (15.9mm) shaft
Pad Footprint5.125" x 4.25" (130.2mm x 108mm)
DimensionsHeight: 6.125" (155.6mm)
Weight2.8 lbs. (1.3kg)

Specifications

SKU  381
Manufacturer  Panavise
