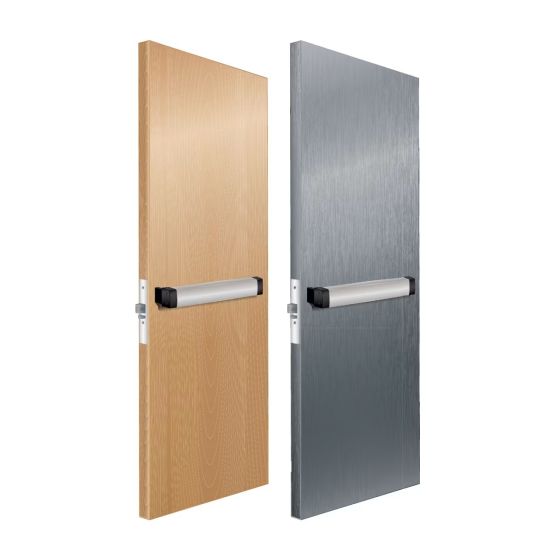

Adams Rite 3310M7136 Fire-Rated Mortise Exit Device with Single Monitoring Switch for Steel/Wood Doors

The 3310M7136 from Adams Rite is a Fire-Rated Mortise Exit Device with Single Monitoring Switch for Steel/Wood Doors. The 3310M7136 series Exit Device has heavy duty deadlatching mechanism with strong and durable construction for a high level of security. It is clean with unobtrusive design and is very easy to install.

Adams Rite 3310M7136 Exit Device Features

• Pushbar length: 36 inches - Provides ease of access in emergency situations.
• Fire rating: 3 Hr - Offers enhanced protection against fire hazards.
• Stile width: Minimum 5" stile - Compatible with a variety of door widths.
• Pushbar material: Extruded aluminum, clad or anodized - Ensures longevity and resistance to wear.
• Door Thickness: Suits 1-3/4" standard; can be modified for thicker doors - Versatile for different door applications.
• Projection: 2-5/8" when fully projected, 1-5/8" when dogged - Tailored fit for security and convenience.
• Handed operation: Right hand reverse door - Simplifies installation for specific door orientations.
• Strike material: Stainless steel - Durable and resistant to corrosion.
• Deadlatching mechanism: Heavy duty - Provides a high level of security.
• Construction: Strong and durable - Ensures consistent performance and reliability.
• Design: Clean and unobtrusive - Blends seamlessly with any door style.
• UL listed hardware: Meets high safety standards - Assurance of quality and trustworthiness.
• California State Fire Marshall certified: Compliance with state safety regulations - Trusted for fire safety in commercial applications.
• Door construction: Hollow metal or wood - Suitable for various environments.
• Max Size Single Doors: 4'0" x 8'0" - Accommodates larger door openings.
• Max Size Pairs and Double Egress: 8'0" x 8'0" - Flexible design for double door configurations.
• Faceplate shape: Flat shaped - Maintains a modern aesthetic appeal.
• Fastener type: Standard self-tapping screws - Ensures easy and quick installation.
• Single switch monitoring feature: Enhances security monitoring capability - Alerts of door status for better management.

Adams Rite 3310M7136 Detailed Specifications
