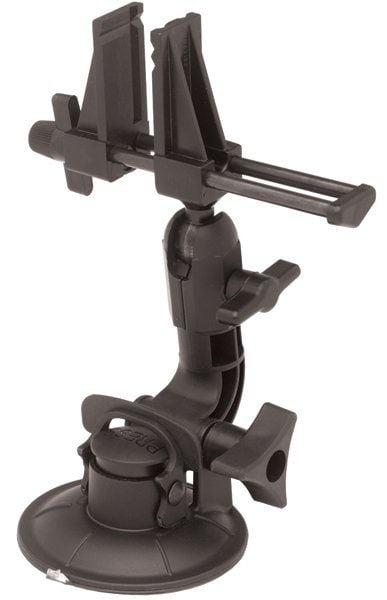

Panavise 209 Vacuum Base PV Jr.

The 209 from PANAVISE is a Vacuum Base PV Jr. that is ideal for light-duty field repairs, electronics, hobbies and more. It can also be attached securely to any smooth, flat, non-porous surface. The easy-to-use single knob controls head movement through 3-planes. The 209 features fine/coarse adjustment knob that controls jaw pressure for delicate work. The grooved jaws are excellent for holding small objects and are made of reinforced thermal composite plastic. In 209 the lever locks vacuum pad into place on any smooth, flat, non-porous surface which lifts tab to release vise from the surface. The arm movement is 140°; positive indents control movement to prevent “flopping” in which the control knob locks the arm firmly into place.

PANAVISE 209 Vacuum Base PV Jr. Features

• Easy-to-use single knob: Controls head movement through 3-planes (210° Tilt, 360° Turn & 360° Rotation) for versatile positioning.
• Fine/coarse adjusting knob: Controls jaw pressure for delicate work, ensuring precision in holding items.
• Grooved jaws: Made of reinforced thermal composite plastic, excellent for holding small objects with continuous heat tolerance to 350°F (177°C) and intermittent heat up to 450°F (204°C).
• Jaw dimensions: Jaws are 2" (50.8mm) tall, 1" (25.4mm) wide, and open to 2.875" (73mm) to accommodate various sizes.
• Arm movement: 140° with positive indents to prevent "flopping"; control knob locks the arm firmly in place for stability.
• Lever locks vacuum pad: Secures to any smooth, flat, non-porous surface, with a lift tab to easily release the vise.
• Base specifications: Base Diameter: 3.4" (86.4mm), Height: 7.5" (173mm), Weight: 0.8 lbs. (0.4kg) for easy portability.
