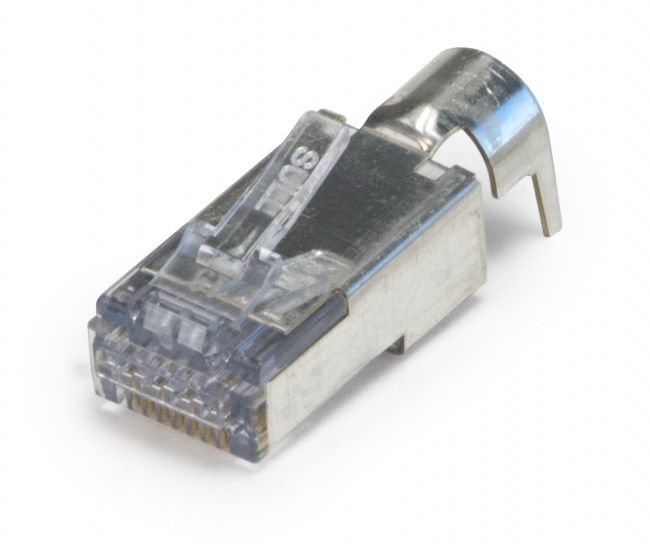

Platinum Tools 202051J ezEX44 Shielded CAT6 Connector, External Ground, 50 Per Jar

This shielded ezEX-RJ45 connector is designed for larger cables and conductors. Features a unique integrated Hi-Lo stagger load bar and allows ‘big’ conductors to pass through the front end of the connector making it easy to verify the wiring sequence before terminating. This connector is typically used with CAT6 and is terminated with EXO Crimp Frame and EXO-EX Die (100061C).

Features

• Hi-Lo stagger: This feature isolates each conductor to ensure optimal signal integrity, reducing interference.
• One piece/pass through design: Simplifies the termination process by eliminating the need for bars or liners, enhancing ease of use.
• Shielded 5e/6/6A compliant: Provides reliable performance, increasing protection against external noise and crosstalk.
• Insulation Diameter (Conductor): Size range: 0.039” – 0.044” (1.0 –1.12mm), accommodating various cable types.
• Max Outer Diameter: 0.305” (7.75mm), suitable for larger cable diameters.
• Solid or Stranded 24-22 AWG: Compatible with different conductor types, ensuring flexibility and versatility.
• Compliance: TAA, TIA, RoHS, UL & FCC compliant, guaranteeing safety and reliability in use.

Platinum Tools 202051J ezEX44 Connector Specifications
