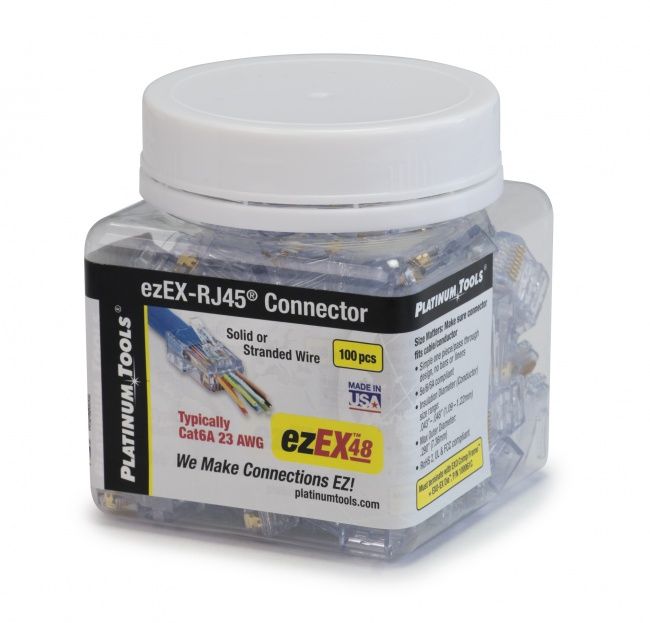

Platinum Tools 202048J ezEX48 Connector, 100 Per Jar

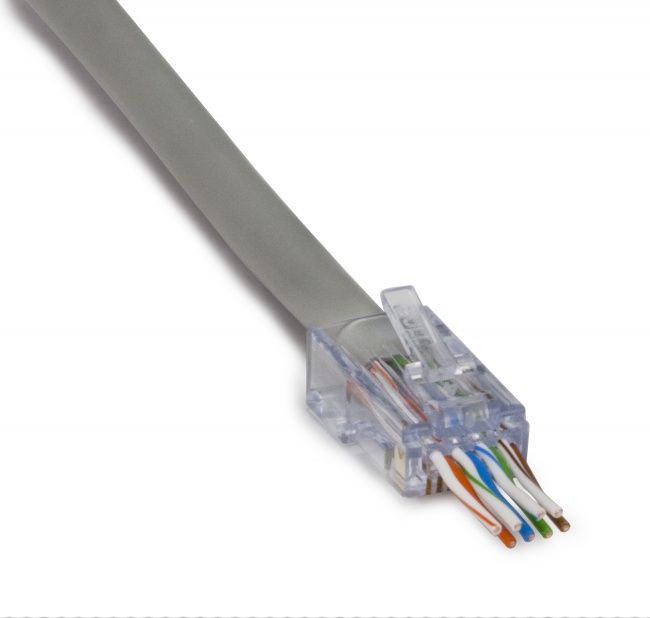

This ezEX48 connector is designed for larger cables and conductors. Features a unique integrated Hi-Lo stagger load bar and allows larger conductors to pass through the front end of the connector. Making it easy to verify the wiring sequence before terminating. This connector is typically used with Cat6A and is terminated with EXO Crimp Frame and EXO-EX Die (100061C).

Features

• Hi-Lo stagger: isolates each conductor for higher performance
• Simple one piece/pass through design: no bars or liners for easier installation
• Insulation Diameter (Conductor) Size range: 0.043” – 0.048” (1.09 –1.22mm) for versatility
• Max outer diameter: 0.290” (7.36mm) to accommodate various cable sizes
• Typically used with: Cat6A cables for enhanced connectivity
• Wire gauge compatibility: Solid or Stranded 24-22 AWG for flexibility in applications
• Compliance: TIA, TAA, RoHS 2, UL & FCC compliant for industry standards
• Made in the USA: ensuring quality and reliability

Platinum Tools 202048J ezEX48 Connector Specifications
