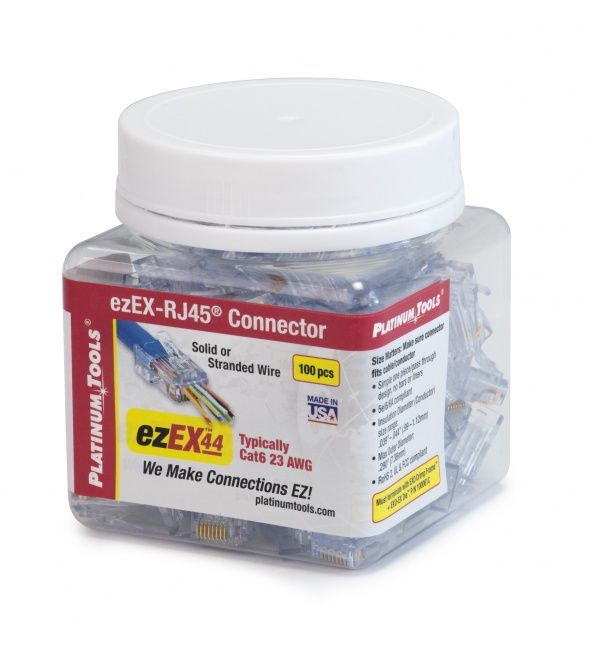

Platinum Tools 202044J ezEX44 Connector, 100 Per Jar

This RJ45 connector is designed for larger cables and conductors. Features a unique integrated Hi-Lo stagger load bar and allows ‘big’ conductors to pass through the front end of the connector making it easy to verify the wiring sequence before terminating. This connector is typically used with Cat6 and is terminated with EXO Crimp Frame and EXO-EX Die (100061C).

Features

• Hi-Lo stagger: isolates each conductor for easier installation and reliable connections.
• Simple one piece design: allows for pass-through layout, eliminating the need for additional bars or liners.
• Insulation Diameter Size range: accommodates a range of conductor sizes from 0.039” – 0.044” (1.0 – 1.12mm) for versatile applications.
• Max Outer Diameter: capable of handling cables with a maximum diameter of 0.290” (7.36mm) to fit standard network cables.
• Compatibility: specifically designed for use with Cat6 cables, ensuring optimal performance.
• Compliance: meets 5e/6/6A standards for reliable connectivity and data transmission.
• Conductor Types: supports solid or stranded wire gauges of 24-22 AWG for various installation needs.
• Regulatory Compliance: adheres to TIA, TAA, RoHS 2, UL & FCC standards for quality assurance.
• Origin: proudly made in the USA, ensuring high manufacturing standards.

Platinum Tools 202044J ezEX44 Connector Specifications
