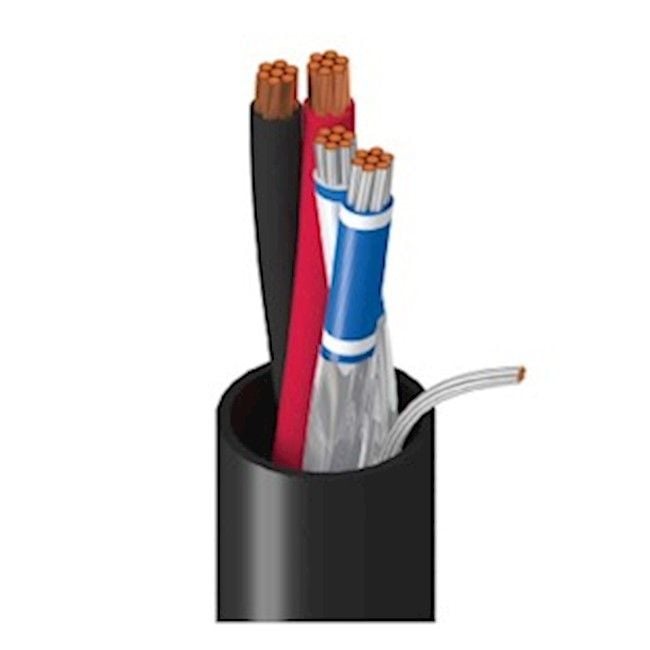

West Penn 1PR2218PBK1000 OSDP Composite Cable, 1 Pair 22 AWG Shielded + 18/2 Power, CMP Plenum, Black, 1000'
SKU
1PR2218PBK1000
Model No
1PR2218PBK1000
$1,099.45
Product Highlights
- Composite construction: 1 pair 22 AWG aluminum-shielded signal conductors (for RS-485/OSDP data) + 18/2 AWG power conductors (for reader power supply), all under a single black PVC outer jacket; 1,000-foot reel
- CMP plenum rating: the highest cable fire-safety rating, required by NEC 800.154 when the cable is routed through air-handling ceiling plenums and HVAC return-air spaces in commercial buildings — a single plenum-rated composite cable eliminates the need for separate conduit or CMR-rated cable in plenum paths
- Single-cable OSDP installation: one cable run carries both the RS-485 OSDP serial data to the card reader and the 12-24VDC power to the reader, eliminating a second cable pull and reducing material and labor cost compared to separate data and power cables
Speak to an expert
The West Penn 1PR2218PBK1000 OSDP Composite Cable is designed for maximum efficiency and safety in commercial wiring applications. With its composite construction and CMP plenum rating, this cable ensures reliable data transmission and power supply while meeting stringent fire safety regulations. Ideal for installation in air-handling spaces, it combines convenience and compliance, allowing for a straightforward one-cable solution for both data and power needs.
West Penn 1PR2218PBK1000 Cable Features
- Composite construction: 1 pair 22 AWG aluminum-shielded signal conductors (for RS-485/OSDP data) + 18/2 AWG power conductors (for reader power supply) under a single black PVC outer jacket; 1,000-foot reel, providing an all-in-one solution that simplifies installation and reduces clutter.
- CMP plenum rating: the highest fire-safety rating, ensuring compliance with NEC 800.154 regulations for routing through air-handling spaces, which enhances safety and avoids the necessity of additional conduit.
- Single-cable OSDP installation: combines RS-485 OSDP serial data and 12-24VDC power in one cable run, significantly lowering both material and labor costs by eliminating the need for separate data and power cables.
Detailed Specifications for West Penn 1PR2218PBK1000
| Type | OSDP Composite Cable |
| Conductor Size | 22 AWG (Signal), 18/2 AWG (Power) |
| Conductor Material | Aluminum Shielded |
| Length | 1000 Feet |
| Outer Jacket Material | PVC |
| Plenum Rating | CMP |
| Applications | Commercial wiring, data transmission, power supply |
SKU  | 1PR2218PBK1000 |
|---|---|
| Manufacturer | West Penn |
| Wire Type | 22 AWG |
| Length | 1000' |
