Platinum Tools 105029 ezEX48 Shielded RJ45 External Ground Connectors, 100 Per Bag

SKU
105029
Platinum Tools 105029 ezEX48 Shielded RJ45 External Ground Connectors, 100 Per Bag 105029 by Platinum Tools Platinum Tools 105029 ezEX48 Shielded RJ45 External Ground Connectors, 100 Per Bag 105029 by Platinum Tools Platinum Tools 105029 ezEX48 Shielded RJ45 External Ground Connectors, 100 Per Bag 105029 by Platinum Tools
Platinum Tools 105029 ezEX48 Shielded RJ45 External Ground Connectors, 100 Per Bag 105029 by Platinum Tools
Model No
105029
$231.18
Qty:

Product Highlights
    • Hi-Lo stagger to isolate each conductor
    • Simple one piece / pass through design, no bars or liners
    • Shielded 6 / 6A compliant
    • Insulation Diameter (Conductor) - Size range: 0.043” – 0.048” (1.09 –1.22mm)
    • Max Outer Diameter: 0.305” (7.75mm)

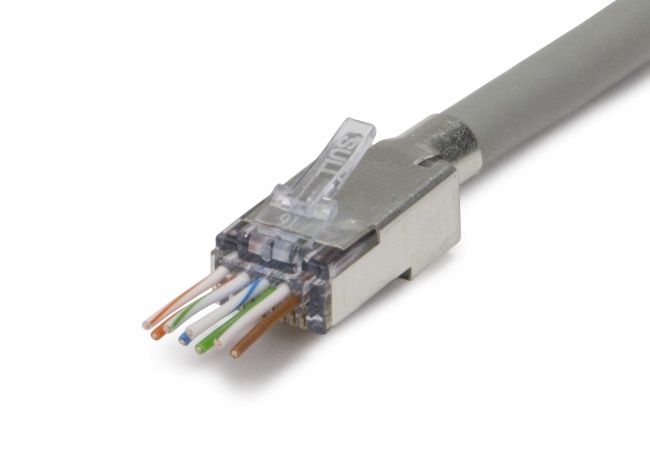

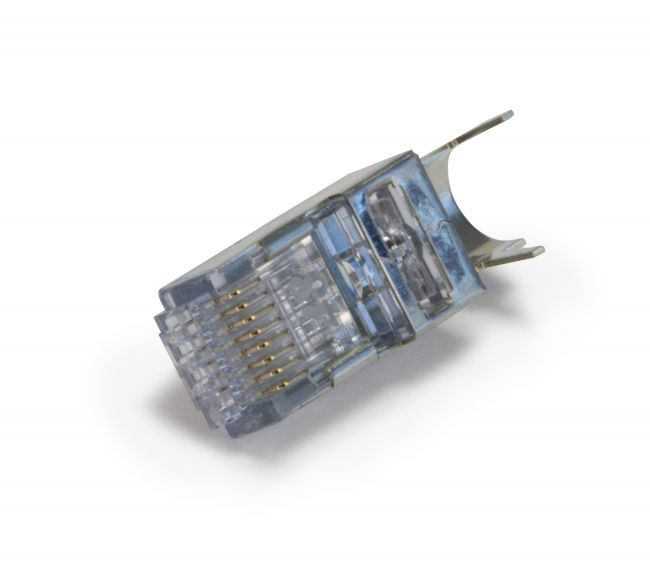

This shielded ezEX-RJ45 connector is designed for larger cables and conductors. Features a unique integrated Hi-Lo stagger load bar and allows ‘big’ conductors to pass through the front end of the connector making it easy to verify the wiring sequence before terminating. This connector is typically used with Cat6A and is terminated with EXO Crimp Frame and EXO-EX Die (100061C).

Features

  • Hi-Lo stagger to isolate each conductor
  • Simple one piece / pass through design, no bars or liners
  • Shielded 6 / 6A compliant
  • Insulation Diameter (Conductor) - Size range: 0.043” – 0.048” (1.09 –1.22mm)
  • Max Outer Diameter: 0.305” (7.75mm)
  • Solid or Stranded 24-22 AWG
  • TAA, TIA, RoHS, UL & FCC compliant
SKU  105029
Manufacturer  Platinum Tools
Wire Type  24-22 AWG, CAT6A
Connector Type  RJ-45
Connector Method   Crimp On
